GX200 TX2/A (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1900001 - GCAE-8999999) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

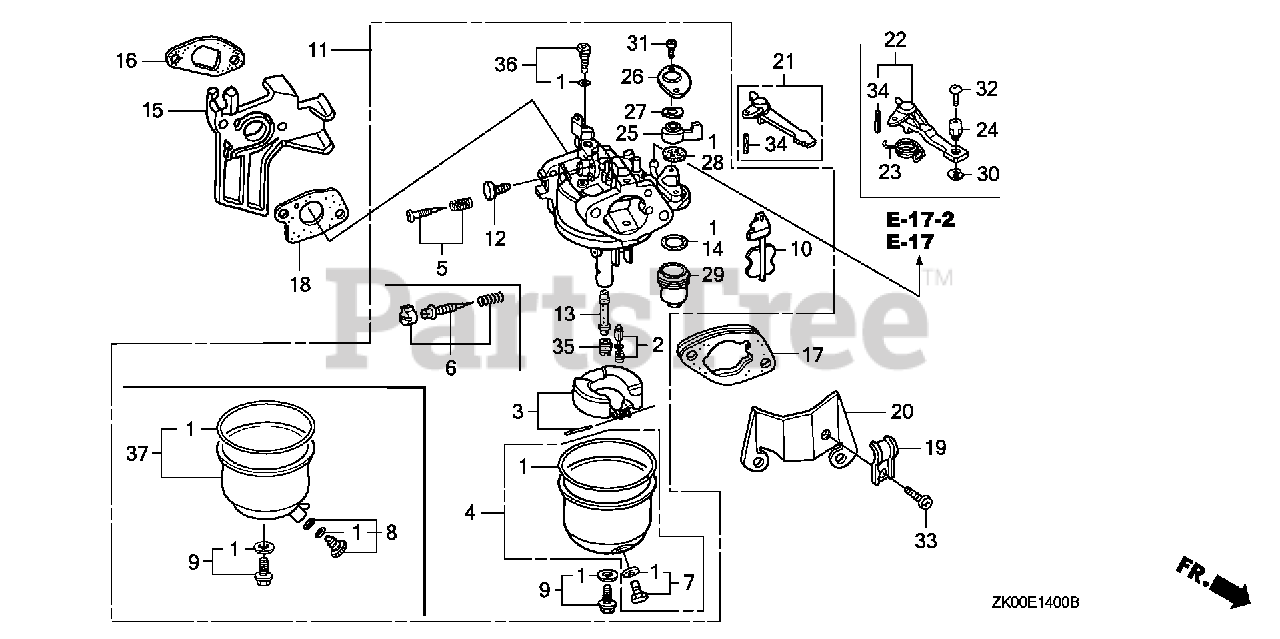

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZE1-812

SEE PART DETAILS - PRI; GASKET SET

$19.99

$

In Stock, Qty 6

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$28.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZE0-005

FLOAT SET

$29.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

CHAMBER SET, FLOAT

$37.99

$

In Stock, only 2 left!

0

6

Honda 16016-ZH7-W01

SCREW SET, PILOT

$20.99

$

In Stock, only 1 left!

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

9

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

9

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

10

Honda 16044-ZE0-005

CHOKE SET

$37.99

$

Usually ships in 3-6 days

0

11

Honda 16100-ZL0-W51

CARBURETOR ASSY. (BE64B B/C)

$125.99

$

In Stock, only 1 left!

0

12

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

13

Honda 16166-ZL0-000

NOZZLE, MAIN

$29.99

$

Usually ships in 3-6 days

0

14

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, Qty 8

0

15

Honda 16211-ZL0-000

INSULATOR, CARBURETOR

$21.99

$

In Stock, only 2 left!

0

16

Honda 16212-ZH8-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 20+

0

17

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$7.99

$

In Stock, Qty 5

0

18

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

21

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$10.99

$

In Stock, only 1 left!

0

25

Honda 16953-ZE1-812

LEVER, PETCOCK

$10.99

$

Usually ships in 3-6 days

0

26

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

27

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$3.99

$

In Stock, only 1 left!

0

28

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 7

0

29

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$22.99

$

In Stock, only 1 left!

0

31

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, Qty 5

0

34

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, Qty 5

0

35

Honda 99101-ZH8-0720

SEE PART DETAILS - PRI; JET, MAIN (#72) (CARBURETOR NO.)

$8.49

$

In Stock, only 1 left!

0

35

Honda 99101-ZK7-0680

SEE PART DETAILS - PRI; JET, MAIN (#68)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

35

Honda 99101-ZK7-0700

JET, MAIN (#70)

Note: (Optional).

$9.99

$

In Stock, Qty 9

0

36

Honda 99204-ZA0-0450

JET SET, PILOT (#45)

$23.99

$

In Stock, only 1 left!

0
