GX200 T2 QAPW (GCBUT) - Honda Engine, Made in Thailand (SN: GCBUT-1000001 - GCBUT-2999999) CAMSHAFT Parts Diagram

Engine, Made in Thailand

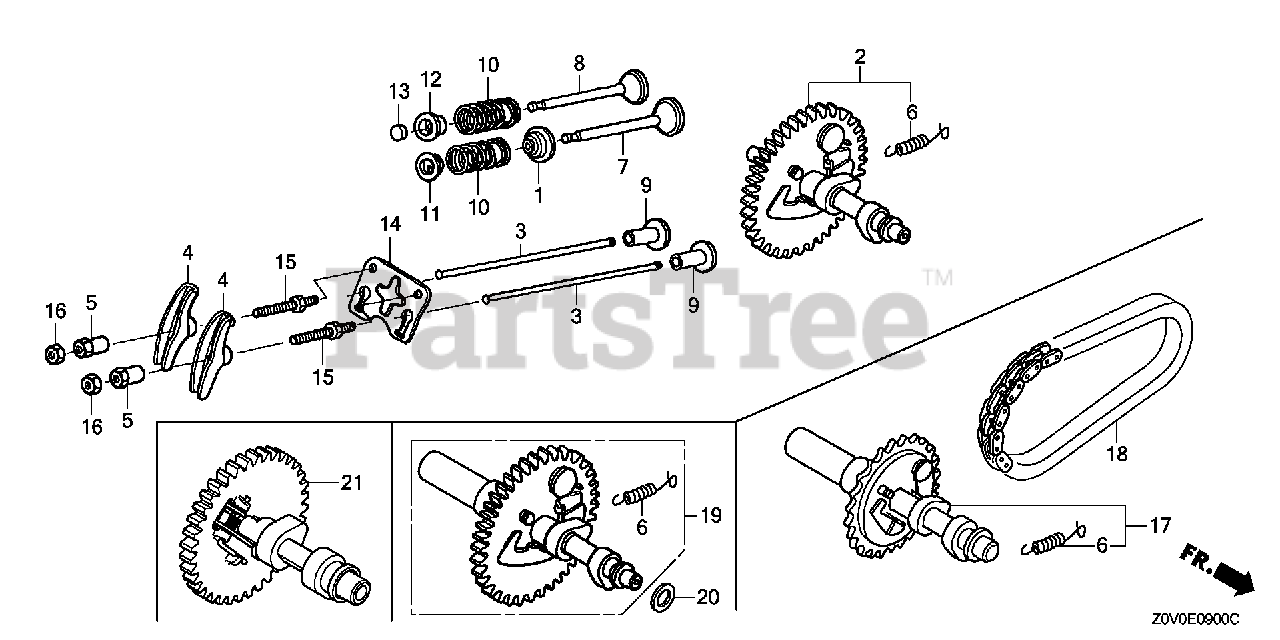

CAMSHAFT Parts Diagram

  • Title

1

Honda 12209-Z4M-801

SEAL, VALVE STEM

$9.49

$

In Stock, Qty 6

0

2

Honda 14100-ZL0-000

CAMSHAFT ASSY.

$179.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZE1-010

SEE PART DETAILS - PRI; ROD, PUSH (Honda Code 3352655).

$8.49

$

In Stock, only 1 left!

0

4

Honda 14431-ZE1-000

ARM, VALVE ROCKER (Honda Code 1426824).

$7.99

$

In Stock, only 1 left!

0

5

Honda 14451-ZE1-013

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM (Honda Code 4300901).
(Superseded to 14451-Z4M-000)

Note: Use up to Engine SN 1449892.

$5.99

$

In Stock, Qty 5

0

5

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

$5.99

$

In Stock, Qty 5

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN (Honda Code 1426907).

$3.49

$

In Stock, only 2 left!

0

7

Honda 14711-Z4V-900

VALVE, IN.

$6.99

$

In Stock, only 1 left!

0

8

Honda 14721-ZF1-000

VALVE, EX. (Honda Code 3683463).
(Superseded to 14721-ZH8-810)

Note: Use up to Engine SN 1174978.

$66.99

$

Usually ships in 3-6 days

0

8

Honda 14721-Z4V-900

VALVE, EX.

Note: Use from Engine SN 1174979.

$8.49

$

Usually ships in 3-6 days

0

9

Honda 14731-ZL0-000

LIFTER, VALVE

$17.99

$

In Stock, only 1 left!

0

10

Honda 14751-ZF1-000

SPRING, VALVE (Honda Code 3683489).

$4.99

$

Usually ships in 3-6 days

0

11

Honda 14771-ZE1-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (Honda Code 1426980).
(Superseded to 14771-Z0T-900)

Note: Use up to Engine SN 1289639.

$1.49

$

In Stock, Qty 14

0

11

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (EXHAUST SIDE)

$1.49

$

In Stock, Qty 14

0

12

Honda 14771-ZE1-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (Honda Code 1426980).
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 14

0

12

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (EXHAUST SIDE)

$1.49

$

In Stock, Qty 14

0

13

Honda 14781-ZE1-000

ROTATOR, VALVE (Honda Code 1427004).

Note: Use up to Engine SN 1174978.

$5.99

$

In Stock, only 1 left!

0

14

Honda 14791-ZE1-010

PLATE, PUSH ROD GUIDE (Honda Code 1899947).

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90012-ZE0-010

BOLT, PIVOT (8MM) (Honda Code 1756964).

$8.49

$

Usually ships in 3-6 days

0

16

Honda 90206-ZE1-000

NUT, PIVOT ADJ. (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0
