GX200 T2 QAPW/A (GCBUT) - Honda Engine, Made in Thailand (SN: GCBUT-3000001 - GCBUT-9999999) RECOIL STARTER (3) Parts Diagram

Engine, Made in Thailand

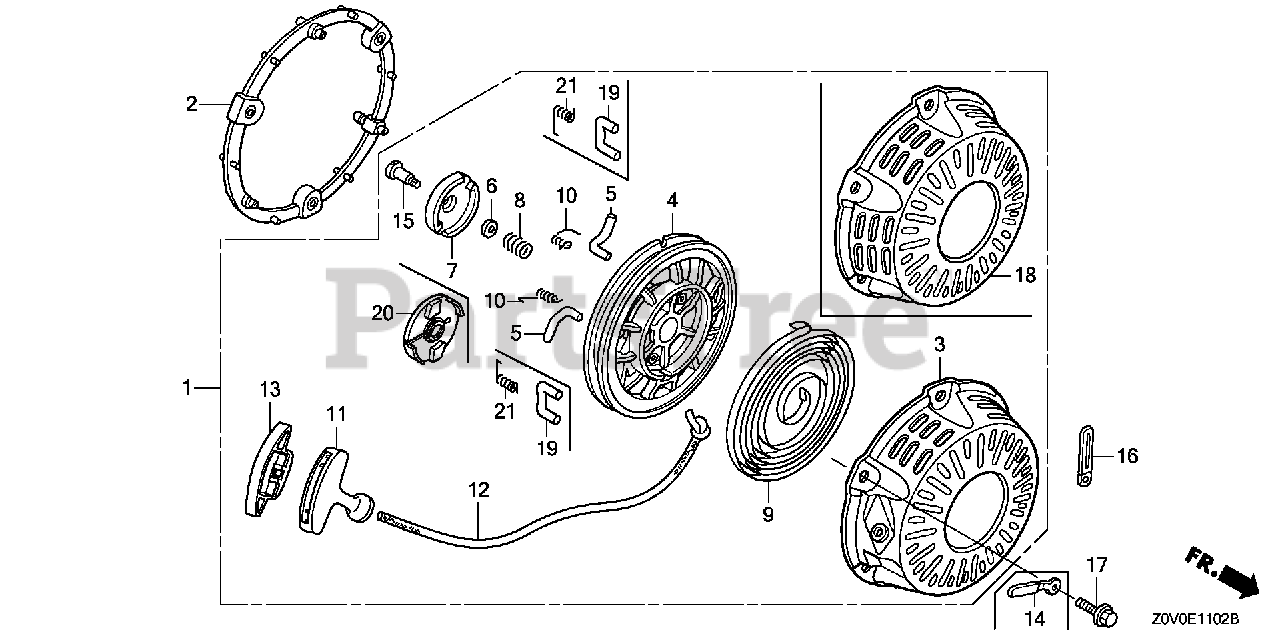

RECOIL STARTER (3) Parts Diagram

  • Title

1

Honda 28400-Z4M-306ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (COO)(FOR U.S.A.) (POWER RED)

$16.99

$

In Stock, Qty 5

0

1

Honda 28400-Z4M-801ZD

STARTER ASSY., RECOIL *NH1* (BLACK)

$16.99

$

In Stock, only 3 left!

0

2

Honda 28405-ZL0-000ZA

SPACER, RECOIL STARTER MOUNTING *NH1* (BLACK)

$30.99

$

Usually ships in 3-6 days

0

2

Honda 28405-ZL0-000ZC

SEE PART DETAILS - PRI; SPACER, RECOIL STARTER MOUNTING *R280* (POWER RED)

$22.99

$

Usually ships in 3-6 days

0

3

Honda 28410-Z4M-003ZB

CASE, RECOIL STARTER *R280* (POWER RED)

$14.99

$

Usually ships in 3-6 days

0

3

Honda 28410-Z4M-003ZD

CASE, RECOIL STARTER *NH1* (BLACK)

$14.99

$

Usually ships in 3-6 days

0

4

Honda 28421-Z1T-702

REEL, RECOIL STARTER (BLACK)

$9.49

$

Usually ships in 3-6 days

0

6

Honda 28431-ZH8-801

PLATE, FRICTION (Honda Code 7611981).

$5.49

$

Usually ships in 3-6 days

0

8

Honda 28441-ZH8-801

SPRING, FRICTION (Honda Code 7612005).

$4.49

$

In Stock, only 1 left!

0

9

Honda 28442-ZH8-003

SPRING, RECOIL STARTER (Honda Code 3683919).

$19.99

$

In Stock, Qty 8

0

11

Honda 28461-Z4M-003

KNOB, RECOIL STARTER
(Superseded to 28461-Z4M-305)

$

$

Not available

12

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X55") (Honda Code 3683968).

$12.99

$

In Stock, only 3 left!

0

13

Honda 28463-Z4M-003

KNOB, REINFORCEMENT

$3.49

$

In Stock, only 1 left!

0

15

Honda 90003-ZH8-801

SCREW, SETTING (Honda Code 7613474).

$4.49

$

In Stock, only 2 left!

0

17

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 6

0

19

Honda 28422-Z1T-701

RATCHET, STARTER

$7.49

$

In Stock, Qty 5

0

20

Honda 28433-Z1T-702

GUIDE, RATCHET

$7.99

$

In Stock, only 2 left!

0

21

Honda 28443-Z1T-701

SPRING, RETURN

$3.99

$

In Stock, only 2 left!

0
