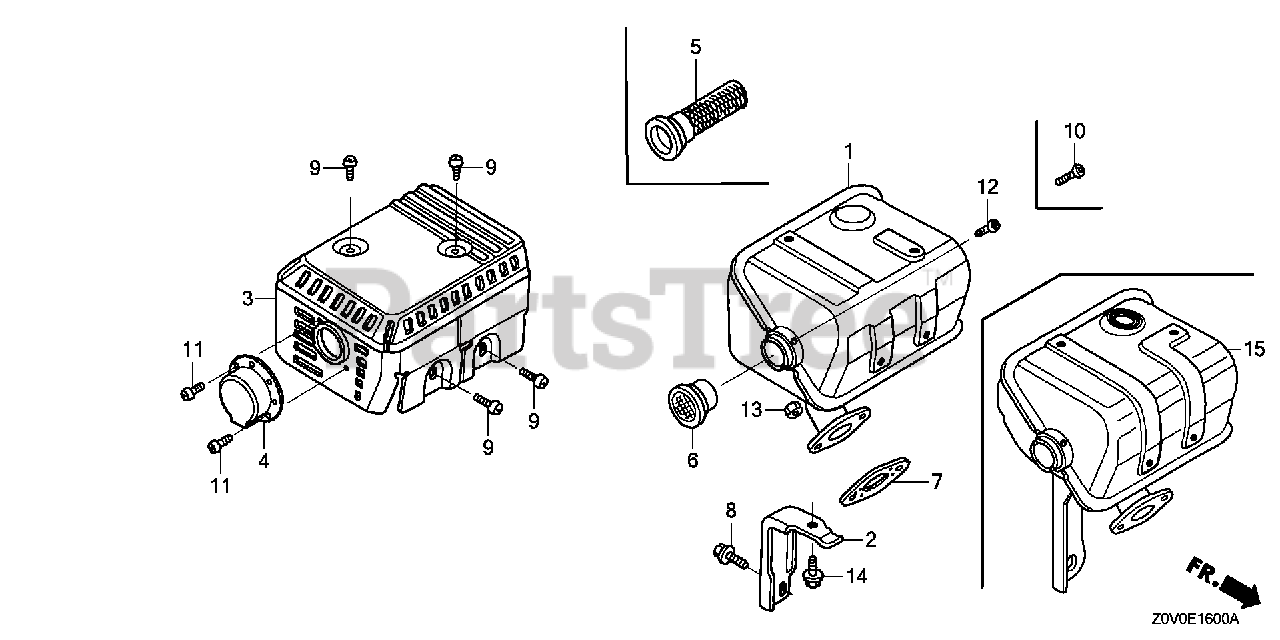

GX200 T TX2 (GCACT) - Honda Engine, Made in Thailand (SN: GCACT-1000001 - GCACT-9999999) MUFFLER (1) Parts Diagram

Engine, Made in Thailand

MUFFLER (1) Parts Diagram

  • Title

1

Honda 18310-ZL0-000

MUFFLER

$133.99

$

Usually ships in 3-6 days

0

2

Honda 18315-ZE1-000

STAY, MUFFLER

$17.99

$

In Stock, only 1 left!

0

3

Honda 18320-ZF1-H51

SEE PART DETAILS - SUP; PROTECTOR, MUFFLER (SILENT)
(Superseded to 18320-ZF1-H52)

$41.99

$

Usually ships in 3-6 days

0

3

Honda 18320-ZF1-H52

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER (SILENT)

$41.99

$

Usually ships in 3-6 days

0

5

Honda 18355-ZL0-000

ARRESTER, SPARK

Note: (Optional).

$20.99

$

In Stock, only 2 left!

0

6

Honda 18361-ZL0-000

NETTING, WIRE FLANGE

$20.99

$

Usually ships in 3-6 days

0

7

Honda 18381-ZH8-801

SEE PART DETAILS - PRI; GASKET, MUFFLER

Note: (Optional).

$4.49

$

In Stock, Qty 12

0

7

Honda 18381-Z0T-801

GASKET, MUFFLER

$5.49

$

In Stock, Qty 19

0

8

Honda 90016-ZE1-000

BOLT, FLANGE (6X13) (CT200)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0

10

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Optional).

$1.49

$

In Stock, Qty 11

0

12

Honda 90056-ZL0-000

SCREW, TAPPING (4X6)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

14

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
