GX200 RHA2/A (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1900001 - GCAE-8999999) CRANKCASE COVER (1) Parts Diagram
Engine, Made in Japan

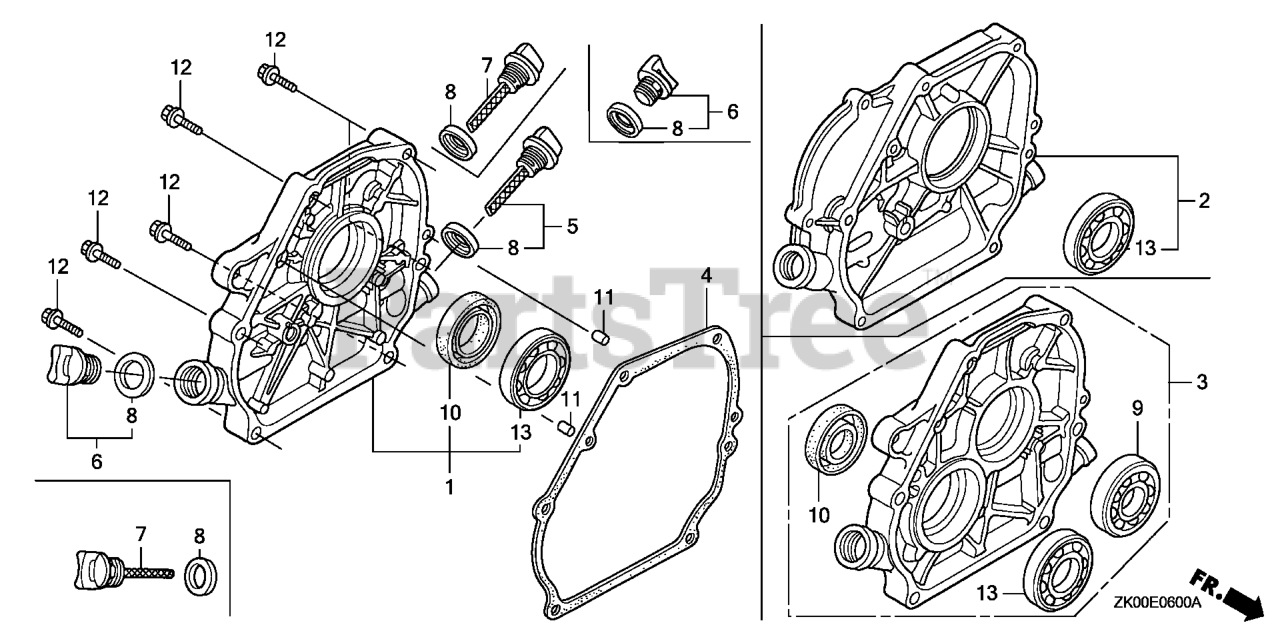

CRANKCASE COVER (1) Parts Diagram
Honda 11300-ZE1-020
SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE
$
$
Not available
Honda 11381-ZL0-000
GASKET, CASE COVER
$17.99
$
In Stock, only 1 left!
Honda 15600-ZE1-003
SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (Honda Code 4500146).
(Superseded to 15600-Z0T-810)
$1.49
$
In Stock, Qty 8
Honda 15600-Z0T-810
CAP ASSY., OIL FILLER (Honda Code 7346562).
$1.49
$
In Stock, Qty 8
Honda 15600-ZG4-003
SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER
$6.99
$
In Stock, only 1 left!
Honda 15625-ZE1-003
SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).
$3.49
$
In Stock, only 1 left!
Honda 91201-Z0T-801
SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).
$8.99
$
In Stock, only 2 left!
Honda 94301-08140
SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).
$2.99
$
In Stock, Qty 8
Honda 95701-08032-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X32) (Honda Code 2751725).
$1.99
$
In Stock, Qty 5
Honda 96100-62050-00
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).
$24.99
$
In Stock, only 1 left!
