GX200 QXE2 (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1000001 - GCAE-1899999) CONTROL BOX Parts Diagram

Engine, Made in Japan

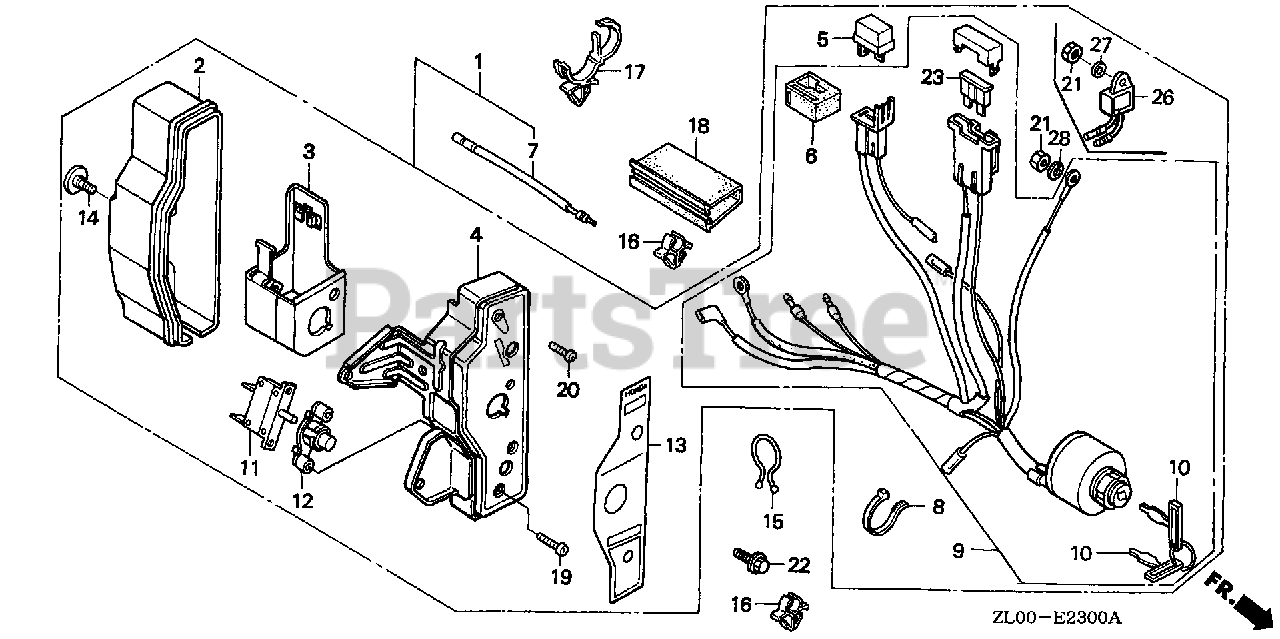

CONTROL BOX Parts Diagram

  • Title

1

Honda 31610-ZE1-835ZA

BOX ASSY., CONTROL *NH1* (EXP-ALERT) (BLACK)
(Superseded to 31610-ZE1-836ZA)

$238.99

$

Usually ships in 3-6 days

0

1

Honda 31610-ZE1-835ZG

SEE PART DETAILS - SUP; BOX ASSY., CONTROL *R280* (EXP-ALERT) (POWER RED)

$

$

Not available

1

Honda 31610-ZE1-836ZG

SEE PART DETAILS - PRI; BOX ASSY., CONTROL *R280* (EXP-ALERT) (POWER RED)

$240.99

$

Usually ships in 3-6 days

0

2

Honda 31612-ZE2-003

CASE, CONTROL

$22.99

$

Usually ships in 3-6 days

0

3

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

$18.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZE1-003ZA

PANEL, CONTROL *NH1* (BLACK)

$72.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZE1-003ZG

PANEL, CONTROL *R280* (POWER RED)

$61.99

$

Usually ships in 3-6 days

0

5

Honda 31700-124-008

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (SHINDENGEN)

$40.99

$

In Stock, only 1 left!

0

6

Honda 32127-738-700

SUSPENSION, CONNECTOR

$4.99

$

Usually ships in 3-6 days

0

7

Honda 32197-ZE1-003

SUB-WIRE HARNESS

$12.99

$

Usually ships in 3-6 days

0

8

Honda 32902-892-003

BAND

$4.99

$

In Stock, only 1 left!

0

9

Honda 35100-ZE1-812

SWITCH ASSY., COMBINATION

$157.99

$

Usually ships in 3-6 days

0

10

Honda 35111-880-013

KEY

$11.99

$

In Stock, only 3 left!

0

11

Honda 38240-VA3-900

PROTECTOR, CIRCUIT (1.0A)

$35.99

$

Usually ships in 3-6 days

0

12

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

$20.99

$

Usually ships in 3-6 days

0

13

Honda 87529-ZE2-812

MARK, CONTROL BOX (EXP)

$13.99

$

Usually ships in 3-6 days

0

14

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90630-751-000

CLIP, PURSE LOCK

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90682-ZE1-000

CLIP, CORD

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK)

$9.99

$

Usually ships in 3-6 days

0

18

Honda 91406-ZE2-003

TUBE, FASTENER (30MM)

$7.49

$

Usually ships in 3-6 days

0

19

Honda 93500-03012-0H

SCREW, PAN (3X12)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 93500-04012-0H

SCREW, PAN (4X12)

$1.49

$

In Stock, Qty 10

0

21

Honda 94001-04390-0S

NUT, HEX. (4MM)

Note: Use up to Engine SN 1156270.

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94001-04390-0S

NUT, HEX. (4MM)

Note: Use from Engine SN 1156271.

$1.49

$

Usually ships in 3-6 days

0

22

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 7

0

23

Honda 98200-30500

FUSE, BLADE (5A)

$1.99

$

In Stock, Qty 5

0

26

Honda 34150-ZH7-003

SEE PART DETAILS - SUP; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use from Engine SN 1156271.

$53.99

$

In Stock, only 1 left!

0

26

Honda 34150-ZH7-013

SEE PART DETAILS - PRI; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use from Engine SN 1156271.

$53.99

$

In Stock, only 1 left!

0

27

Honda 94101-04800

WASHER, PLAIN (4MM)

Note: Use from Engine SN 1156271.

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94111-04800

WASHER, SPRING (4MM)

Note: Use from Engine SN 1156271.

$1.49

$

Usually ships in 3-6 days

0
