GX200 QTP2 (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1000001 - GCAE-1899999) CONTROL Parts Diagram

Engine, Made in Japan

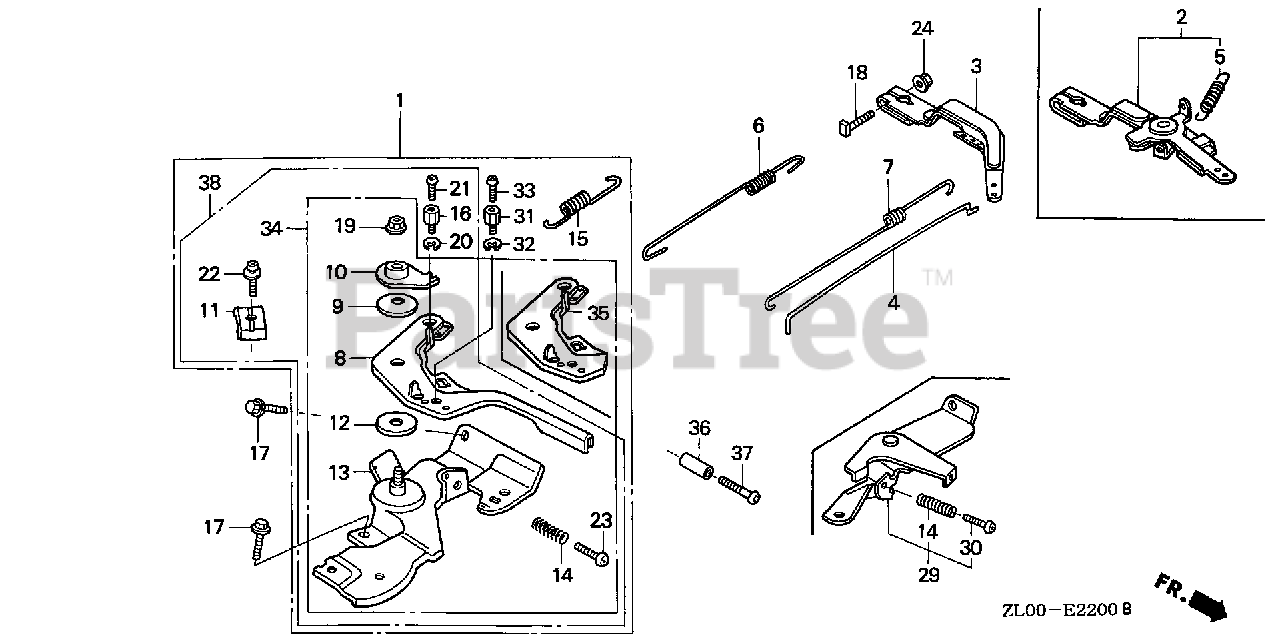

CONTROL Parts Diagram

  • Title

1

Honda 16500-ZH8-872

SEE PART DETAILS - SUP; CONTROL ASSY. (CYCLONE-REMOTE)
(Superseded to 16500-ZH8-873)

Note: Use from Engine SN 1180378 to 1288955.

$47.99

$

Usually ships in 3-6 days

0

1

Honda 16500-ZH8-873

SEE PART DETAILS - PRI; CONTROL ASSY. (CYCLONE-REMOTE)

$47.99

$

Usually ships in 3-6 days

0

3

Honda 16551-ZL0-000

ARM, GOVERNOR

$18.99

$

In Stock, only 2 left!

0

4

Honda 16555-ZE1-000

ROD, GOVERNOR

$4.99

$

In Stock, only 3 left!

0

6

Honda 16561-ZL0-000

SPRING, GOVERNOR

$5.99

$

In Stock, Qty 12

0

7

Honda 16562-ZE1-020

SPRING, THROTTLE RETURN

$3.99

$

In Stock, Qty 20+

0

8

Honda 16571-ZH8-020

SEE PART DETAILS - PRI; LEVER, CONTROL

Note: Use up to Engine SN 1180377.

$14.99

$

In Stock, only 1 left!

0

8

Honda 16571-ZH8-020

SEE PART DETAILS - PRI; LEVER, CONTROL

Note: Use from Engine SN 1180378.

$14.99

$

In Stock, only 1 left!

0

9

Honda 16574-ZE1-000

SPRING, LEVER

$4.49

$

In Stock, only 1 left!

0

10

Honda 16575-ZH8-000

WASHER, CONTROL LEVER

$5.99

$

Usually ships in 3-6 days

0

11

Honda 16576-891-000

HOLDER, CABLE

$5.49

$

In Stock, only 1 left!

0

12

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

$5.49

$

In Stock, only 4 left!

0

13

Honda 16580-ZH8-851

SEE PART DETAILS - SUP; BASE, CONTROL (CYCLONE)

Note: Use up to Engine SN 1180377.

$

$

Not available

13

Honda 16580-ZH8-852

SEE PART DETAILS - SUP; BASE, CONTROL (CYCLONE)
(Superseded to 16580-ZH8-853)

Note: Use from Engine SN 1180378 to 1288955.

$27.99

$

Usually ships in 3-6 days

0

13

Honda 16580-ZH8-853

SEE PART DETAILS - PRI; BASE, CONTROL (CYCLONE)

$27.99

$

Usually ships in 3-6 days

0

14

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$5.49

$

In Stock, Qty 7

0

15

Honda 16592-ZE1-810

SPRING, CABLE RETURN

$2.49

$

In Stock, only 2 left!

0

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

18

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

19

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

$4.49

$

In Stock, Qty 20+

0

22

Honda 93500-05016-0A

SCREW, PAN (5X16)

$1.49

$

In Stock, Qty 7

0

23

Honda 93500-05025-0H

SCREW, PAN (5X25)

$0.99

$

In Stock, only 4 left!

0

24

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
