GX200 QTP2/A (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1900001 - GCAE-8999999) AIR CLEANER (CYCLONE) Parts Diagram

Engine, Made in Japan

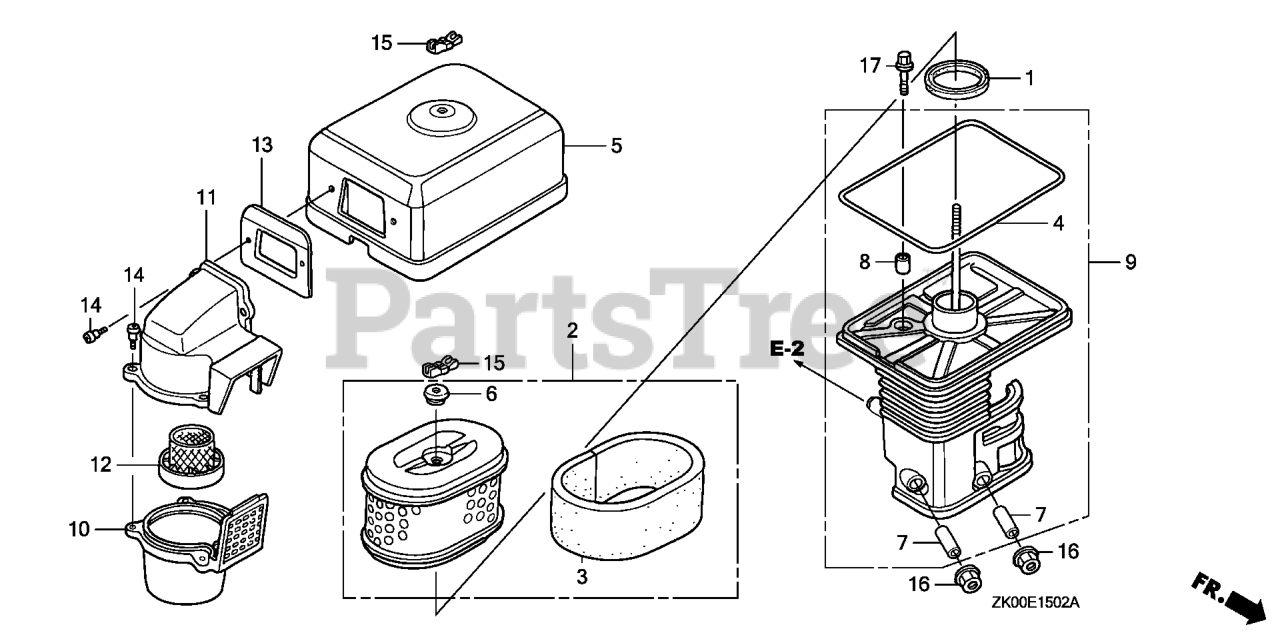

AIR CLEANER (CYCLONE) Parts Diagram

  • Title
1

Honda 16271-ZE1-000

GASKET, ELBOW (Honda Code 1427194).

$4.99

$

In Stock, Qty 9

0

2

Honda 17210-ZE1-517

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (DUAL) Use up to Engine SN 2115700.
(Superseded to 17210-Z4M-821)

$9.99

$

In Stock, Qty 20+

0

2

Honda 17210-Z4M-821

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (DUAL)

$9.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE1-821

SEE PART DETAILS - SUP; FILTER (OUTER)

$11.99

$

In Stock, Qty 6

0

4

Honda 17219-733-010

SEE PART DETAILS - PRI; GASKET, AIR CLEANER COVER (Honda Code 2538437).

$6.49

$

Usually ships in 3-6 days

0

5

Honda 17230-ZE1-841

COVER, AIR CLEANER (DUAL) (Honda Code 2574044).

$29.99

$

Usually ships in 3-6 days

0

6

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.99

$

In Stock, Qty 6

0

7

Honda 17238-ZE7-010

COLLAR, AIR CLEANER Use from Engine SN 1786085.

$4.99

$

Usually ships in 3-6 days

0

8

Honda 17239-733-000

COLLAR B, AIR CLEANER (Honda Code 1493154).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 17410-ZE1-841

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

$10.99

$

Usually ships in 3-6 days

0

10

Honda 17470-ZE1-842

SEE PART DETAILS - PRI; CASE, PRE AIR CLEANER (Honda Code 7423247).

$14.99

$

In Stock, only 1 left!

0

11

Honda 17475-ZE1-841

CAP, PRE AIR CLEANER (Honda Code 2574093).

$18.99

$

In Stock, only 1 left!

0

12

Honda 17476-ZE1-841

GUIDE, PRE AIR CLEANER (Honda Code 2574101).

$9.49

$

In Stock, only 1 left!

0

13

Honda 17478-ZE1-841

PLATE, PRE AIR CLEANER (Honda Code 2574119).

$8.99

$

In Stock, only 1 left!

0

14

Honda 90300-GB0-900

BOLT, MUDGUARD (Honda Code 2574408).

$3.99

$

In Stock, only 4 left!

0

15

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

17

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815).

$2.49

$

In Stock, Qty 9

0
