GX200 QA (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1000001 - GCAE-1899999) FUEL TANK Parts Diagram

Engine, Made in Japan

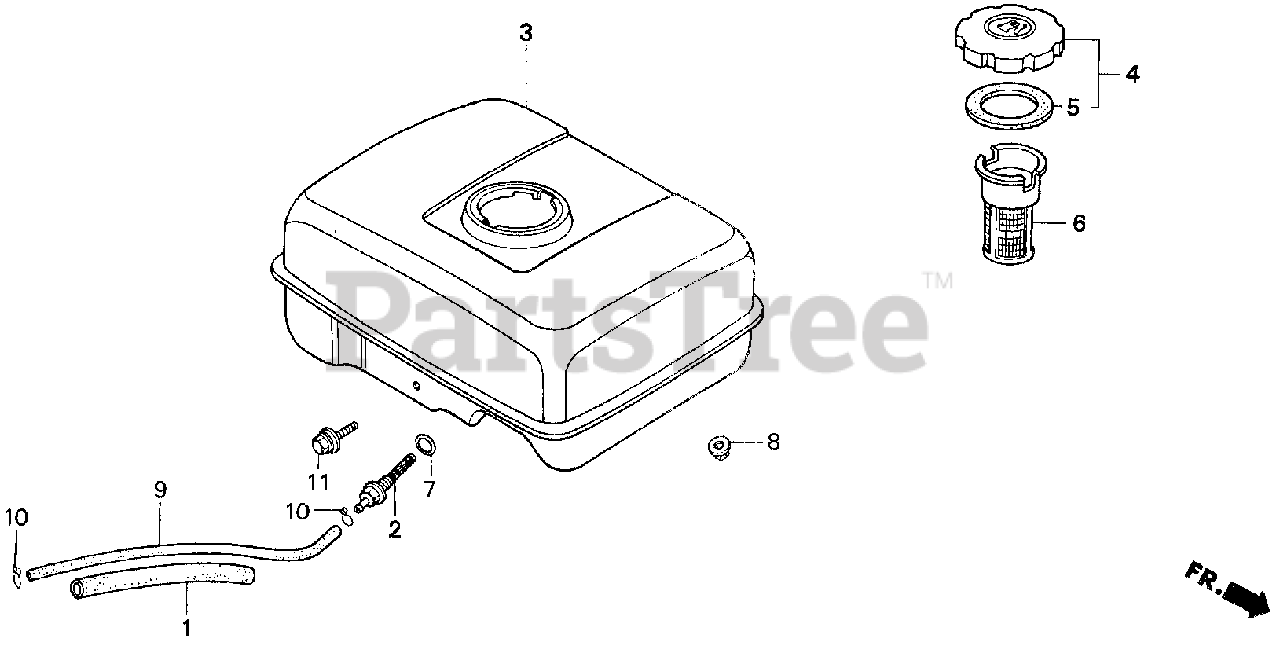

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

Note: (Honda Code 3683646).

$5.49

$

In Stock, Qty 13

0

2

Honda 16955-ZE1-000

JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

Note: (Honda Code 1427459).

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE1-020ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)
(Superseded to 17510-ZE1-030ZA)

Note: (Honda Code 3683661).

$182.99

$

Usually ships in 3-6 days

0

3

Honda 17510-ZE1-020ZF

TANK, FUEL *NH1* (BLACK)

Note: (Honda Code 4212429).

$

$

Currently unavailable

4

Honda 17620-ZH7-023

CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: (Honda Code 5344817).

$

$

Not available

5

Honda 17631-ZH7-003

GASKET, FUEL FILLER CAP
(Superseded to 17631-329-003)

Note: (Honda Code 4608725).

$

$

Not available

6

Honda 17672-ZE2-W01

FILTER, FUEL

Note: (Honda Code 4270864).

$13.99

$

In Stock, only 3 left!

0

7

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

Note: (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

8

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

9

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140)

Note: (Honda Code 5137104).

$54.99

$

In Stock, only 3 left!

0

10

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

11

Honda 95701-06030-00

BOLT, FLANGE (6X30)

Note: (Honda Code 2401222).

$2.49

$

In Stock, only 4 left!

0
