GX200 QA (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1000001 - GCAE-1899999) CONTROL Parts Diagram

Engine, Made in Japan

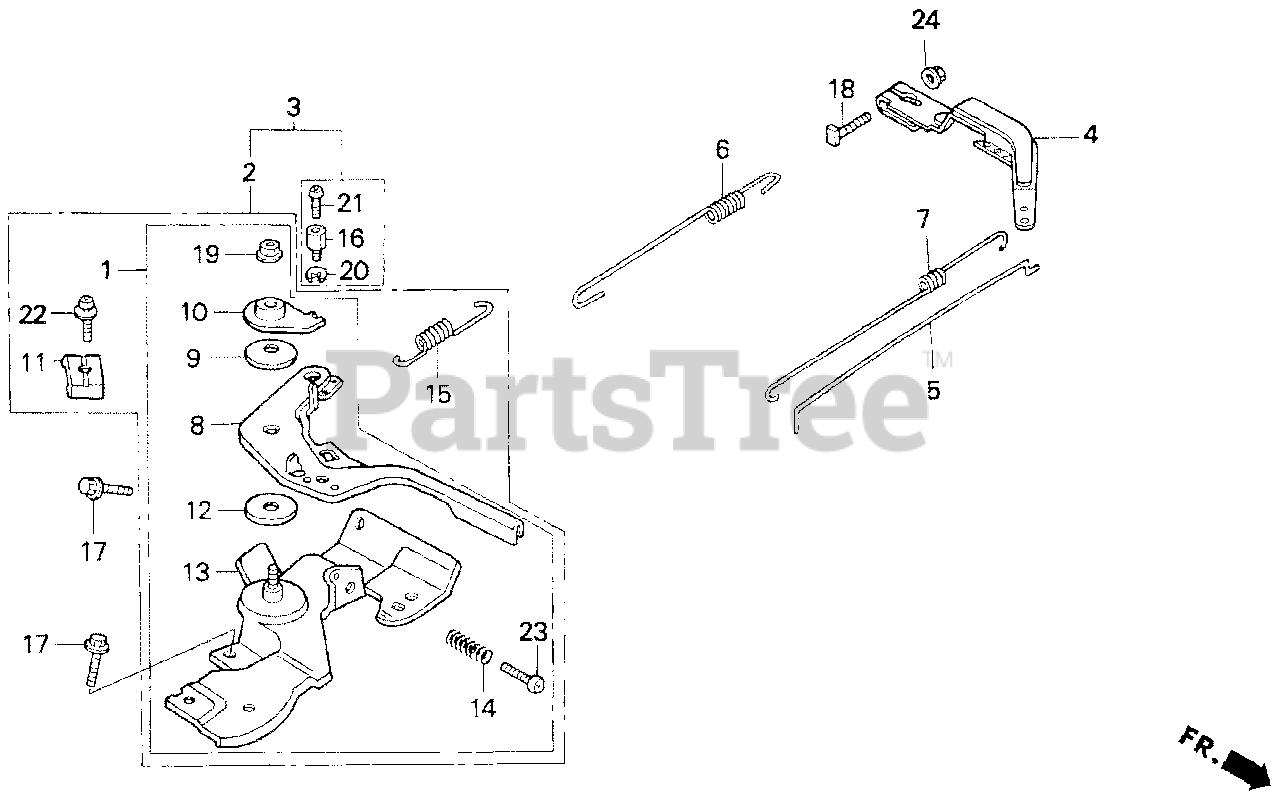

CONTROL Parts Diagram

  • Title

2

Honda 16500-ZH8-823

CONTROL ASSY. (REMOTE)

Note: (Honda Code 6147755).

$43.99

$

Usually ships in 3-6 days

0

4

Honda 16551-ZL0-000

ARM, GOVERNOR

Note: (Honda Code 4743084).

$17.99

$

In Stock, only 2 left!

0

5

Honda 16555-ZE1-000

ROD, GOVERNOR

Note: (Honda Code 1427319).

$4.99

$

In Stock, only 4 left!

0

6

Honda 16561-ZL0-000

SPRING, GOVERNOR

Note: (Honda Code 4743092).

$5.49

$

In Stock, Qty 12

0

7

Honda 16562-ZE1-020

SPRING, THROTTLE RETURN

Note: (Honda Code 1950625).

$3.99

$

In Stock, Qty 20+

0

8

Honda 16571-ZH8-000

LEVER, CONTROL
(Superseded to 16571-ZH8-020)

Note: (Honda Code 3683596).

$14.99

$

In Stock, only 1 left!

0

9

Honda 16574-ZE1-000

SPRING, LEVER

Note: (Honda Code 1427384).

$4.49

$

In Stock, only 2 left!

0

10

Honda 16575-ZH8-000

WASHER, CONTROL LEVER

Note: (Honda Code 3683604).

$5.99

$

Usually ships in 3-6 days

0

11

Honda 16576-891-000

HOLDER, CABLE

Note: (Honda Code 0800466).

$4.99

$

Usually ships in 3-6 days

0

12

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

Note: (Honda Code 1427400).

$5.49

$

In Stock, only 4 left!

0

13

Honda 16580-ZH8-811

BASE, CONTROL

Note: (Honda Code 4725321).

$

$

Currently unavailable

14

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: (Honda Code 0636431).

$4.99

$

In Stock, Qty 7

0

15

Honda 16592-ZE1-810

SPRING, CABLE RETURN

Note: (Honda Code 1445774).

$2.49

$

In Stock, only 2 left!

0

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

18

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

19

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

Note: (Honda Code 1410182).

$4.49

$

In Stock, Qty 20+

0

22

Honda 93500-05016-0A

SCREW, PAN (5X16)

Note: (Honda Code 0145557).

$1.49

$

In Stock, Qty 7

0

23

Honda 93500-05025-0H

SCREW, PAN (5X25)

Note: (Honda Code 0374702).

$0.99

$

In Stock, only 4 left!

0

24

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
