GX200 QA (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1000001 - GCAE-1899999) AIR CLEANER (SEMI DRY) Parts Diagram

Engine, Made in Japan

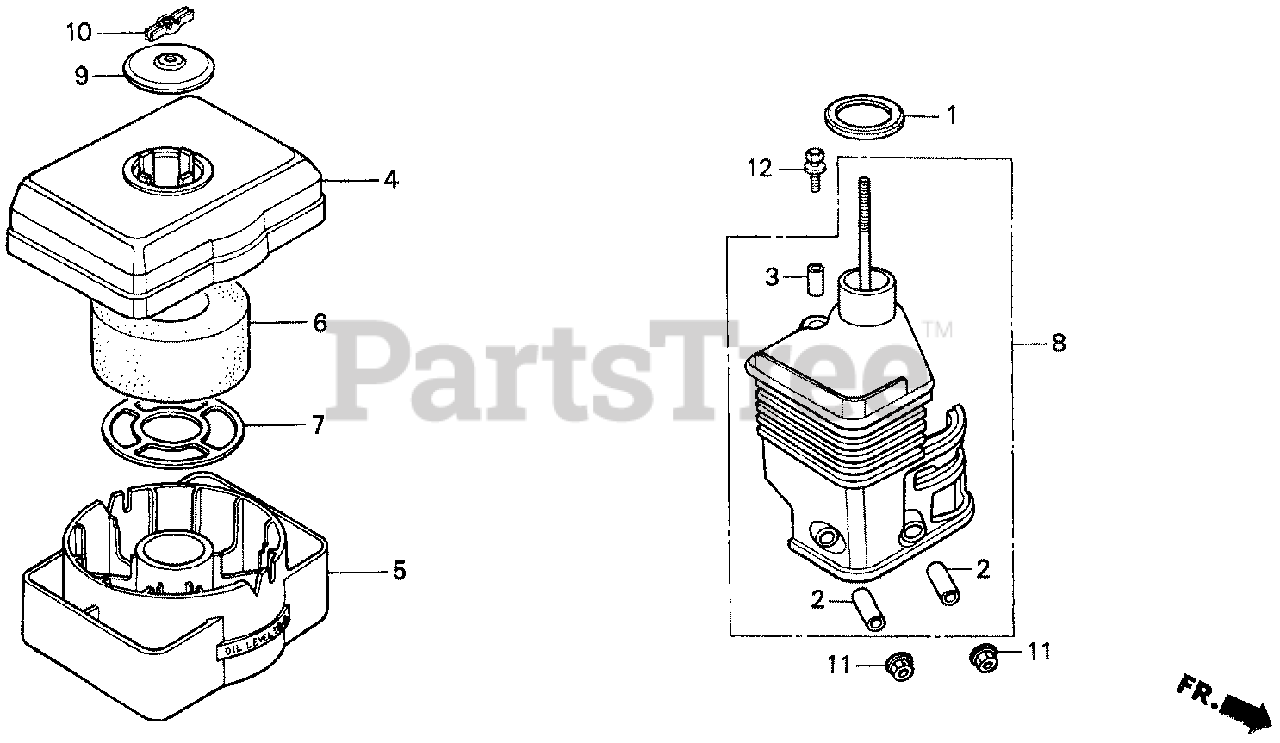

AIR CLEANER (SEMI DRY) Parts Diagram

  • Title

1

Honda 16271-ZE1-000

GASKET, ELBOW

Note: (Honda Code 1427194).

$4.99

$

In Stock, Qty 9

0

2

Honda 17238-ZE7-010

COLLAR, AIR CLEANER

Note: (Honda Code 2455673).

$4.99

$

Usually ships in 3-6 days

0

3

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

Note: (Honda Code 1427533).

$4.99

$

In Stock, Qty 7

0

4

Honda 17401-ZE1-810

BODY, CLEANER (OIL BATH)

Note: (Honda Code 1427574).

$35.99

$

Usually ships in 3-6 days

0

5

Honda 17402-ZE1-810

PAN, CLEANER OIL (OIL BATH)

Note: (Honda Code 1427582).

$35.99

$

Usually ships in 3-6 days

0

6

Honda 17403-ZE1-810

ELEMENT, AIR CLEANER (OIL BATH)

Note: (Honda Code 1427590).

$6.49

$

In Stock, only 2 left!

0

7

Honda 17404-841-000

GRID, AIR CLEANER

Note: (Honda Code 0181180).

$10.99

$

Usually ships in 3-6 days

0

8

Honda 17410-ZE1-020

ELBOW, AIR CLEANER
(Superseded to 17410-ZE1-030)

Note: (Honda Code 2481653).

$39.99

$

In Stock, only 1 left!

0

9

Honda 17421-ZE1-000

CAP, CLEANER

Note: (Honda Code 1427616).

$12.99

$

In Stock, only 4 left!

0

10

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

Note: (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

11

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

12

Honda 95701-06020-00

BOLT, FLANGE (6X20)

Note: (Honda Code 2105815).

$2.49

$

In Stock, Qty 9

0
