GX200 LX2 (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1000001 - GCAE-1899999) REDUCTION (1) Parts Diagram

Engine, Made in Japan

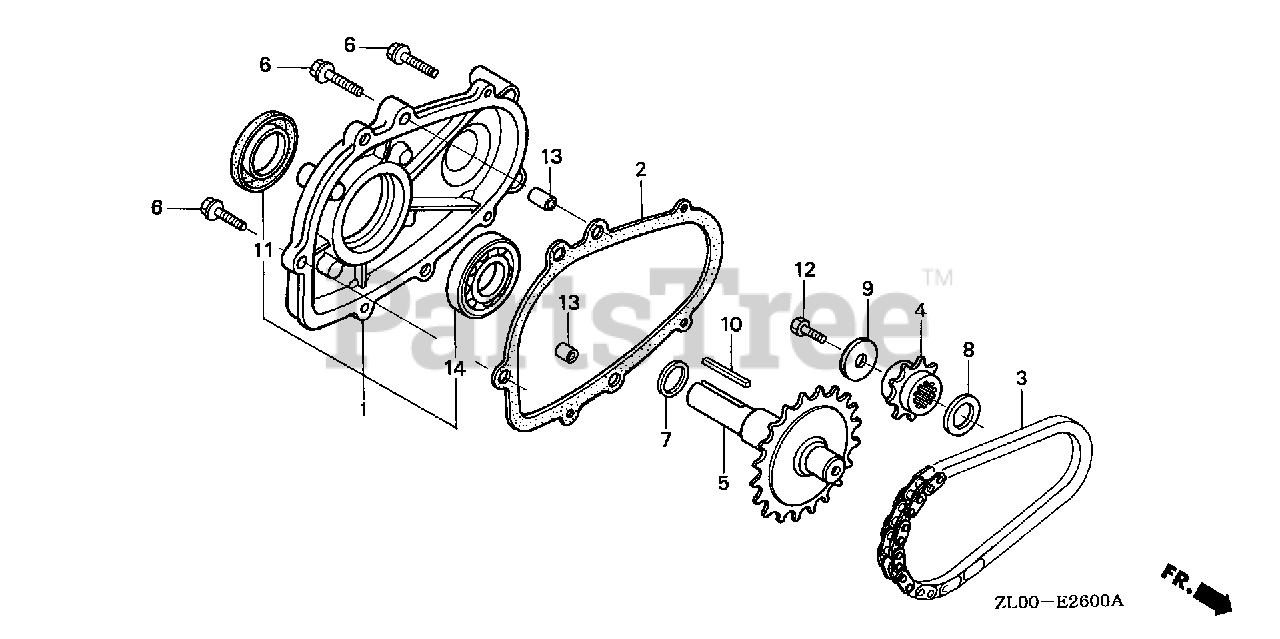

REDUCTION (1) Parts Diagram

  • Title

1

Honda 11500-ZE1-611

COVER ASSY., CHAIN CASE

$126.99

$

Usually ships in 3-6 days

0

2

Honda 11521-ZH8-800

GASKET, CHAIN CASE COVER

$8.49

$

Usually ships in 3-6 days

0

3

Honda 14411-ZE1-611

CHAIN, P.T.O. DRIVE (DID317FM2-34LE)

$37.99

$

Usually ships in 3-6 days

0

4

Honda 23110-ZE1-610

SPROCKET, DRIVE (13T)

$52.99

$

Usually ships in 3-6 days

0

5

Honda 23710-ZE1-613

SHAFT, P.T.O. (26T)

$191.99

$

Usually ships in 3-6 days

0

6

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

Usually ships in 3-6 days

0

7

Honda 90456-ZE1-000

SPRING, THRUST

$5.49

$

Usually ships in 3-6 days

0

8

Honda 90470-ZE1-000

SPACER (20MM)

$6.49

$

Usually ships in 3-6 days

0

9

Honda 90471-ZE1-610

WASHER (8MM)

$5.49

$

Usually ships in 3-6 days

0

10

Honda 90741-883-810

KEY (5X5X33) (YELLOW)

$11.99

$

Usually ships in 3-6 days

0

11

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$8.99

$

In Stock, only 2 left!

0

11

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

Note: Use up to Engine SN 1854386.

$8.99

$

In Stock, only 2 left!

0

12

Honda 92101-08025-0A

BOLT, HEX. (8X25)

$2.49

$

In Stock, Qty 6

0

13

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

14

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$24.99

$

In Stock, only 1 left!

0
