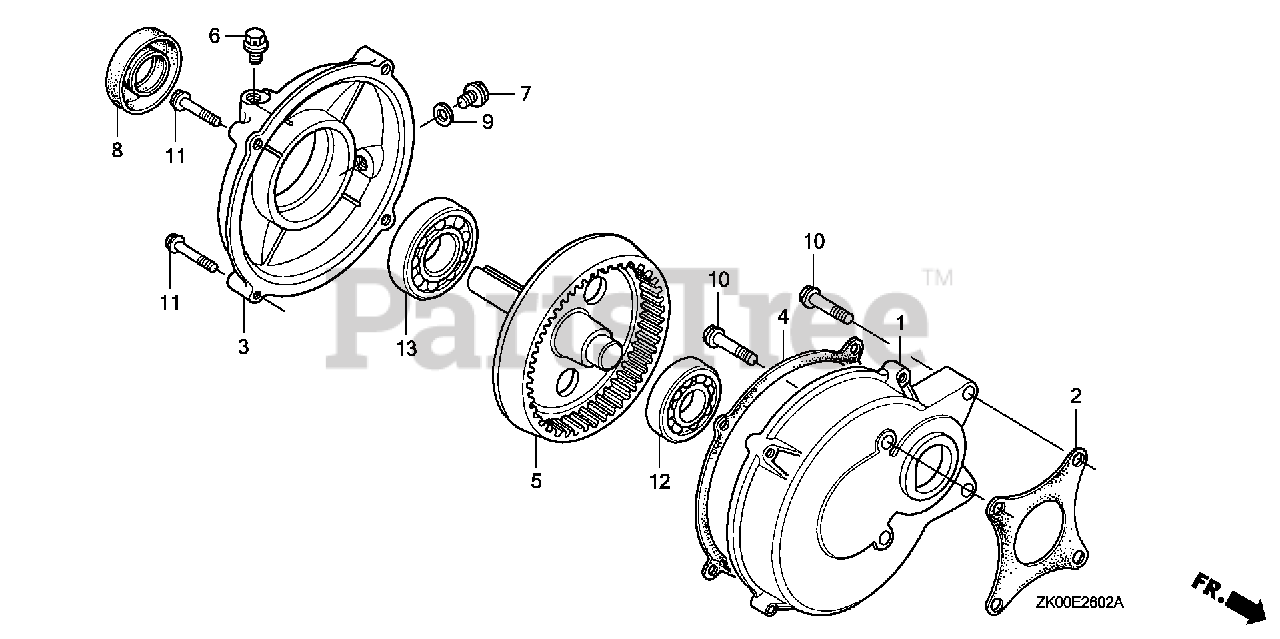

GX200 HX2/A (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1900001 - GCAE-8999999) REDUCTION (3) Parts Diagram
Engine, Made in Japan
REDUCTION (3) Parts Diagram
Honda 21521-883-741
CASE, REDUCTION
$144.99
$
Usually ships in 3-6 days
Honda 21591-ZH8-740
GASKET, REDUCTION CASE
$6.99
$
In Stock, Qty 14
Honda 21621-883-742
SEE PART DETAILS - PRI; COVER, REDUCTION
$34.99
$
Usually ships in 3-6 days
Honda 21692-ZH8-800
GASKET, REDUCTION COVER
$10.99
$
In Stock, Qty 10
Honda 23710-883-740
SHAFT, P.T.O. (86T)
$319.99
$
Usually ships in 3-6 days
Honda 90002-883-740
BOLT, BREATHING
$5.99
$
Usually ships in 3-6 days
Honda 90131-896-650
BOLT, DRAIN PLUG (12X15)
$4.99
$
In Stock, only 2 left!
Honda 91201-Z0T-801
SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (NOK)
$8.99
$
In Stock, only 2 left!
Honda 94109-12000
WASHER, DRAIN PLUG (12MM)
$1.49
$
In Stock, Qty 12
Honda 95701-08032-08
BOLT, FLANGE (8X32)
$2.99
$
Usually ships in 3-6 days
Honda 95701-08035-00
BOLT, FLANGE (8X35)
$2.99
$
In Stock, only 3 left!
Honda 96100-62040-00
BEARING, RADIAL BALL (6204)
$16.99
$
In Stock, only 2 left!
Honda 96100-63050-00
BEARING, RADIAL BALL (6305)
$20.99
$
Usually ships in 3-6 days
