GX200 D QAPW (GCAFD) - Honda Engine, Made in India (SN: GCAFD-1000001 - GCAFD-9999999) FUEL TANK Parts Diagram

Engine, Made in India

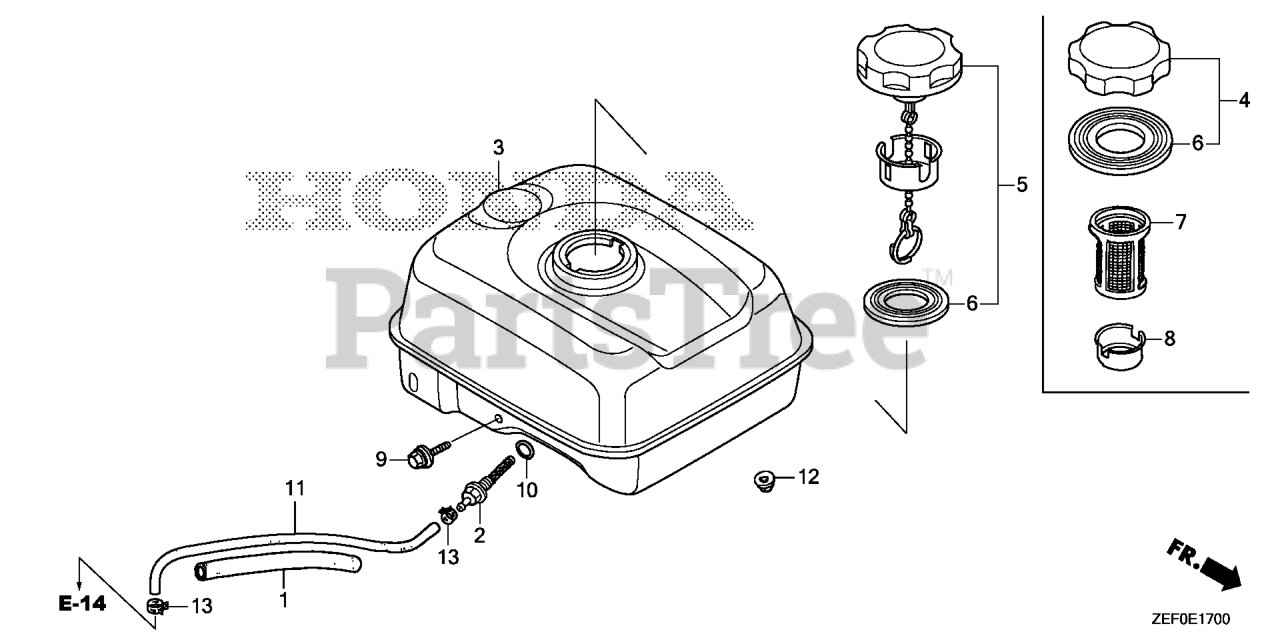

FUEL TANK Parts Diagram

  • Title
1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.49

$

In Stock, Qty 12

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-Z4M-000ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

$68.99

$

Usually ships in 3-6 days

0

5

Honda 17620-Z4H-910

CAP, FUEL FILLER
(Superseded to 17620-Z4H-912)

$79.99

$

In Stock, only 3 left!

0

6

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

$0.99

$

In Stock, Qty 8

0

6

Honda 17631-Z1T-800

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)

$

$

Not available

9

Honda 90004-ZL0-003

BOLT, FLANGE (6X34)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 91301-ZDA-000

O-RING (14MM)

$0.99

$

Usually ships in 3-6 days

0

11

Honda 91424-Z4M-013

TUBE, FUEL (4.5X145) (FKM)

$7.99

$

In Stock, only 1 left!

0

12

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

13

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, only 4 left!

0
