GX200 D QAPW (GCAFD) - Honda Engine, Made in India (SN: GCAFD-1000001 - GCAFD-9999999) CYLINDER BARREL Parts Diagram

Engine, Made in India

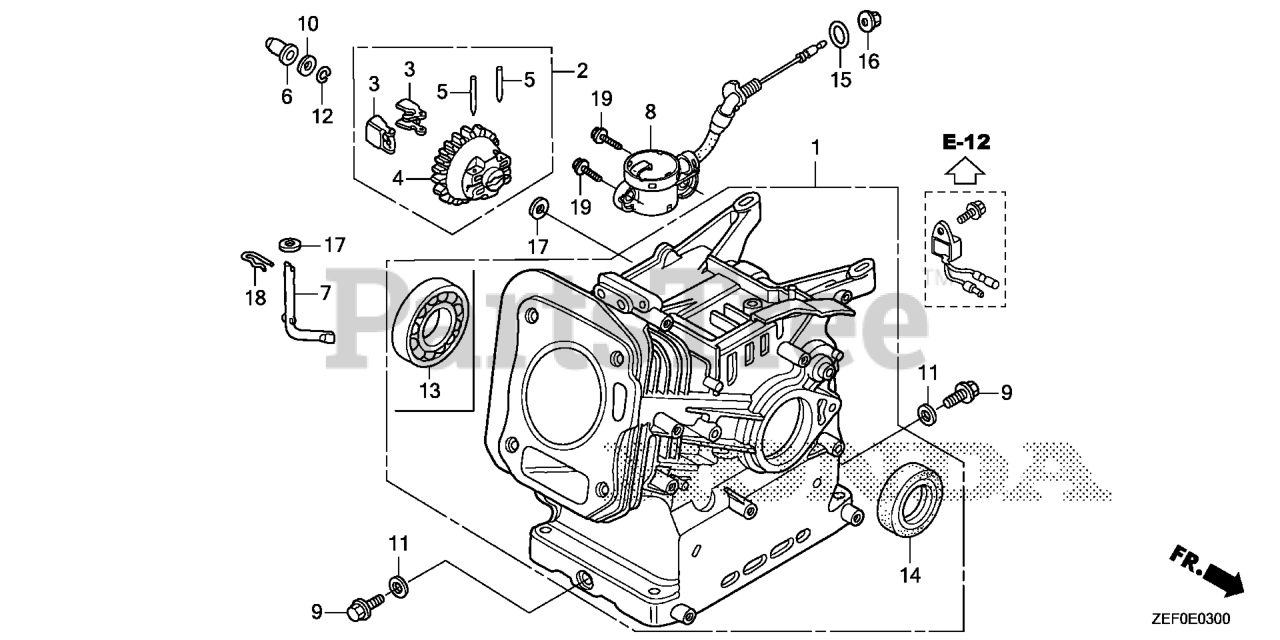

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-Z4V-436

CYLINDER ASSY. (OIL ALERT)

$125.99

$

Usually ships in 3-6 days

0

2

Honda 16506-ZDB-000

GOVERNOR ASSY.

$2.49

$

Usually ships in 3-6 days

0

3

Honda 16511-ZDB-000

WEIGHT, GOVERNOR

$0.99

$

Usually ships in 3-6 days

0

4

Honda 16512-ZDA-000

HOLDER, GOVERNOR WEIGHT

$0.99

$

Usually ships in 3-6 days

0

5

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

6

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 8

0

7

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM (Honda Code 1427277).

$13.99

$

Usually ships in 3-6 days

0

8

Honda 35480-ZDA-003

SWITCH ASSY., OIL LEVEL

$20.99

$

Usually ships in 3-6 days

0

9

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 2 left!

0

10

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$2.49

$

In Stock, only 2 left!

0

11

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

12

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

14

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$9.49

$

In Stock, Qty 15

0

14

Honda 91202-YA0-P01

OIL SEAL (25X41X6) (ARAI) (NOT AVAILABLE)

$0.99

$

Usually ships in 3-6 days

0

14

Honda 91202-Z1T-003

OIL SEAL (25X41X6)

$10.99

$

In Stock, only 4 left!

0

15

Honda 91301-ZDA-000

O-RING (14MM)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 94050-10080

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405).

$3.99

$

In Stock, Qty 20+

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

18

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 9

0

19

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

In Stock, only 1 left!

0
