GX160 UT2 WKS (GCBPT) - Honda Engine, Made in Thailand (SN: GCBPT-1000001 - GCBPT-3999999) CARBURETOR (1) Parts Diagram

Engine, Made in Thailand

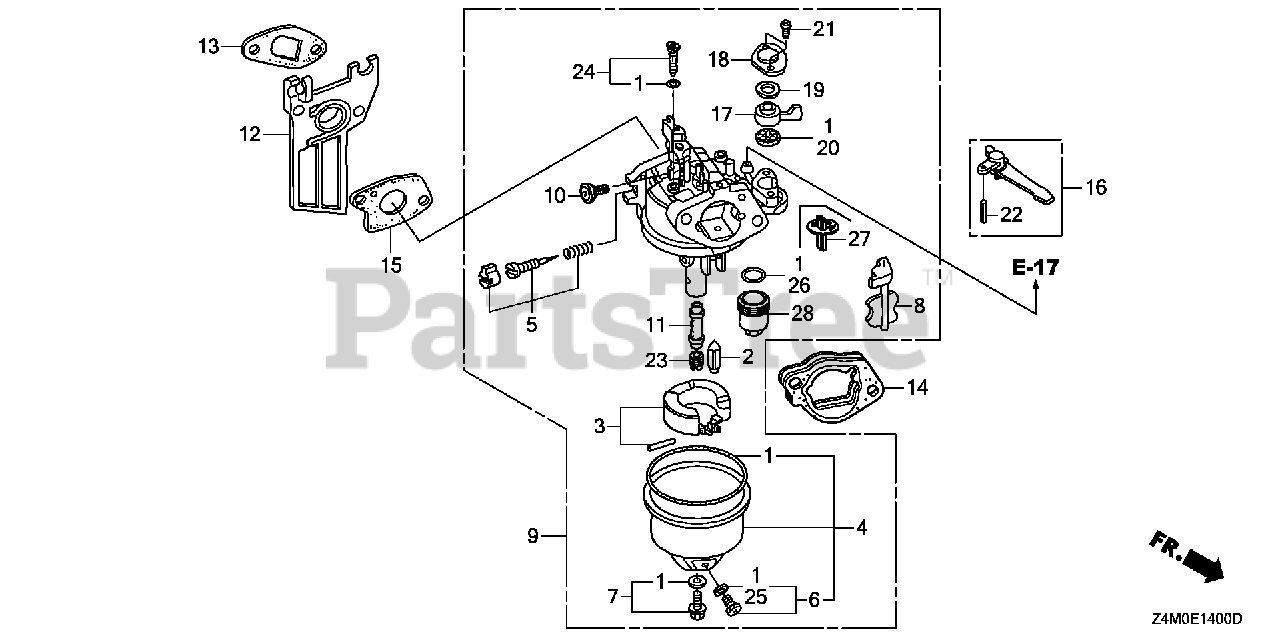

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET (CARBURETOR NO.)

$19.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED)

$28.99

$

In Stock, only 1 left!

0

3

Honda 16013-Z0S-B01

FLOAT SET (Honda Code 7346596).

$33.99

$

In Stock, only 1 left!

0

4

Honda 16015-Z4M-911

CHAMBER SET, FLOAT

$23.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SEE PART DETAILS - PRI; SCREW SET (Honda Code 4219879). (CARBURETOR NO.)

Note: Use up to Engine SN BE66U A.

$20.99

$

In Stock, only 1 left!

0

5

Honda 16016-ZDF-V01

SCREW SET

Note: Use from Engine SN BE61V A.

$16.99

$

Usually ships in 3-6 days

0

6

Honda 16024-Z5T-901

SCREW SET, DRAIN

$10.99

$

Usually ships in 3-6 days

0

7

Honda 16028-Z5T-901

SCREW SET (CARBURETOR NO.)

$5.99

$

In Stock, only 2 left!

0

8

Honda 16044-ZE0-005

CHOKE SET (Honda Code 1441526).

Note: Use from Engine SN BE61V A.

$37.99

$

Usually ships in 3-6 days

0

8

Honda 16044-Z4M-911

CHOKE SET (CARBURETOR NO.)

Note: Use up to Engine SN BE66U A.

$37.99

$

In Stock, only 1 left!

0

9

Honda 16100-Z4M-WB1

CARBURETOR ASSY. (BE61V A)

Note: Use from Engine SN 2969323.

$40.99

$

Usually ships in 3-6 days

0

9

Honda 16100-Z4M-932

CARBURETOR ASSY. (BE66U A)

Note: Use up to Engine SN 2969322.

$59.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-Z4M-WC1

NOZZLE, MAIN (CARBURETOR NO.)

Note: Use from Engine SN BE61V A.

$6.99

$

Usually ships in 3-6 days

0

11

Honda 16166-Z4M-922

NOZZLE, MAIN

Note: Use up to Engine SN BE66U A.

$20.99

$

Usually ships in 3-6 days

0

12

Honda 16211-Z4M-000

INSULATOR, CARBURETOR

Note: Use up to Engine SN 2961159.

$25.99

$

Usually ships in 3-6 days

0

12

Honda 16211-Z4M-900

INSULATOR, CARBURETOR

Note: Use from Engine SN 2961160.

$2.99

$

In Stock, only 3 left!

0

13

Honda 16212-ZH8-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$3.49

$

In Stock, Qty 10

0

14

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2534055).

$7.99

$

In Stock, Qty 9

0

15

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4725289).

$2.49

$

In Stock, Qty 20+

0

16

Honda 16610-ZE1-000

LEVER, CHOKE (STD) (Honda Code 1440114).

$10.99

$

In Stock, only 3 left!

0

17

Honda 16953-ZE1-812

LEVER, VALVE (Honda Code 5140876).

$10.99

$

In Stock, only 1 left!

0

18

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

19

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$3.99

$

In Stock, only 1 left!

0

20

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$4.49

$

In Stock, Qty 7

0

21

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

$1.49

$

In Stock, Qty 9

0

22

Honda 94305-20122

PIN, SPRING (2X12) (Honda Code 1441591).

$2.49

$

In Stock, Qty 5

0

23

Honda 99101-ZK7-0650

SEE PART DETAILS - PRI; JET, MAIN (#65)

Note: (Optional).Use from Engine SN BE61V A.

$7.49

$

Usually ships in 3-6 days

0

23

Honda 99101-ZK7-0650

SEE PART DETAILS - PRI; JET, MAIN (#65)

Note: (Optional).Use up to Engine SN BE66U A.

$7.49

$

Usually ships in 3-6 days

0

23

Honda 99101-ZK7-0680

SEE PART DETAILS - PRI; JET, MAIN (#68)

Note: (Optional).Use up to Engine SN BE66U A.

$8.49

$

Usually ships in 3-6 days

0

23

Honda 99101-ZK7-0600

SEE PART DETAILS - PRI; JET, MAIN (#60)

Note: (Optional).Use from Engine SN BE61V A.

$10.99

$

Usually ships in 3-6 days

0

23

Honda 99101-ZK7-0620

SEE PART DETAILS - PRI; JET, MAIN (#62)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

24

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

Note: Use up to Engine SN BE66U A.

$22.99

$

In Stock, only 1 left!

0

24

Honda 99204-ZE2-0400

SEE PART DETAILS - PRI; JET SET, PILOT (#40) (ADVENTURE GREEN) (CARBURETOR NO.)

Note: Use from Engine SN BE61V A.

$22.99

$

In Stock, only 2 left!

0

25

Honda 16141-Z0S-003

WASHER, PLAIN (6.2X10.7 DRAIN) (CARBURETOR NO.)

Note: Use from Engine SN BE61V A.

$0.99

$

Usually ships in 3-6 days

0
