GX160 UT2 VA2/A (GCBPT) - Honda Engine, Made in Thailand (SN: GCBPT-4000001 - GCBPT-9999999) FUEL TANK Parts Diagram

Engine, Made in Thailand

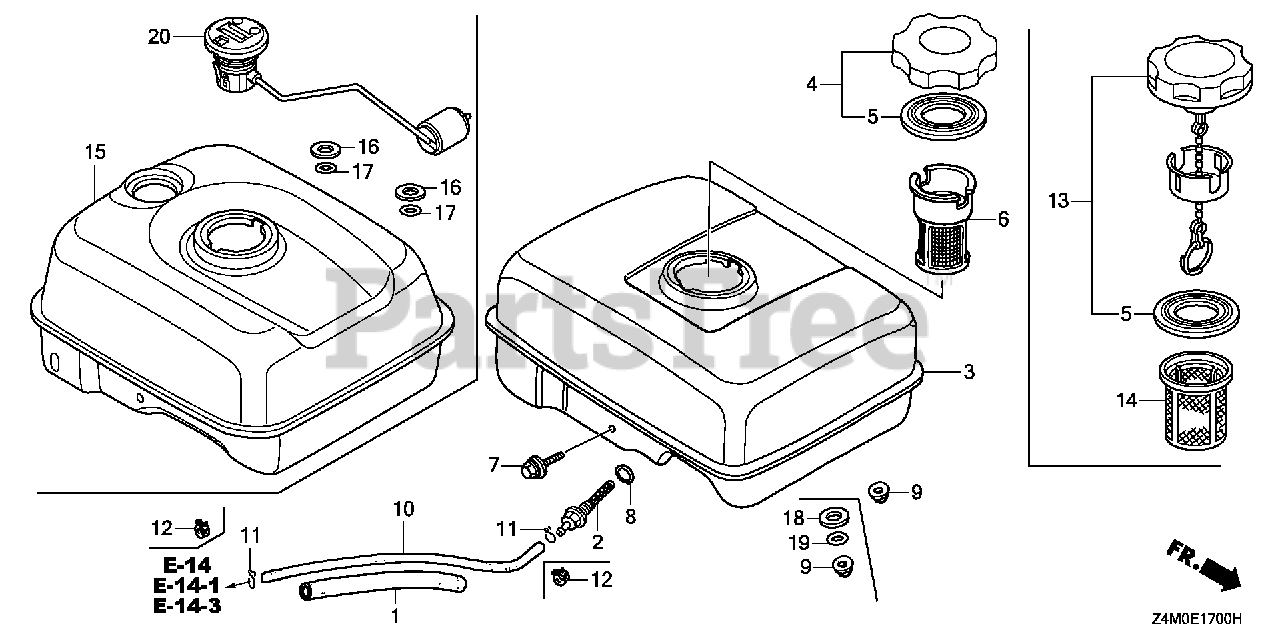

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.49

$

In Stock, Qty 7

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$9.49

$

In Stock, Qty 14

0

5

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

$0.99

$

In Stock, Qty 6

0

7

Honda 90004-ZH7-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X29) (Honda Code 6779540).

$1.99

$

In Stock, Qty 7

0

8

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

8

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

9

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

15

Honda 17510-Z4M-000ZB

TANK, FUEL *NH1* (BLACK)

$71.99

$

In Stock, only 1 left!

0

12

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$3.49

$

In Stock, only 1 left!

0

13

Honda 17620-Z4H-900

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: Use up to Engine SN 4214195.

$79.99

$

Usually ships in 3-6 days

0

15

Honda 17510-Z4M-000ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

$71.99

$

In Stock, only 1 left!

0

15

Honda 17510-Z4M-000ZB

TANK, FUEL *NH1* (BLACK)

$71.99

$

In Stock, only 1 left!

0

13

Honda 17620-Z4H-912

CAP, FUEL FILLER

Note: Use from Engine SN 4214196.

$82.99

$

In Stock, Qty 8

0

13

Honda 17620-Z4H-910

CAP, FUEL FILLER
(Superseded to 17620-Z4H-912)

Note: Use from Engine SN 4214196.

$82.99

$

In Stock, Qty 8

0

5

Honda 17631-Z1T-800

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)

$

$

Not available
