GX160 UT2 RH2/A (GCBPT) - Honda Engine, Made in Thailand (SN: GCBPT-4000001 - GCBPT-9999999) REDUCTION (2) Parts Diagram

Engine, Made in Thailand

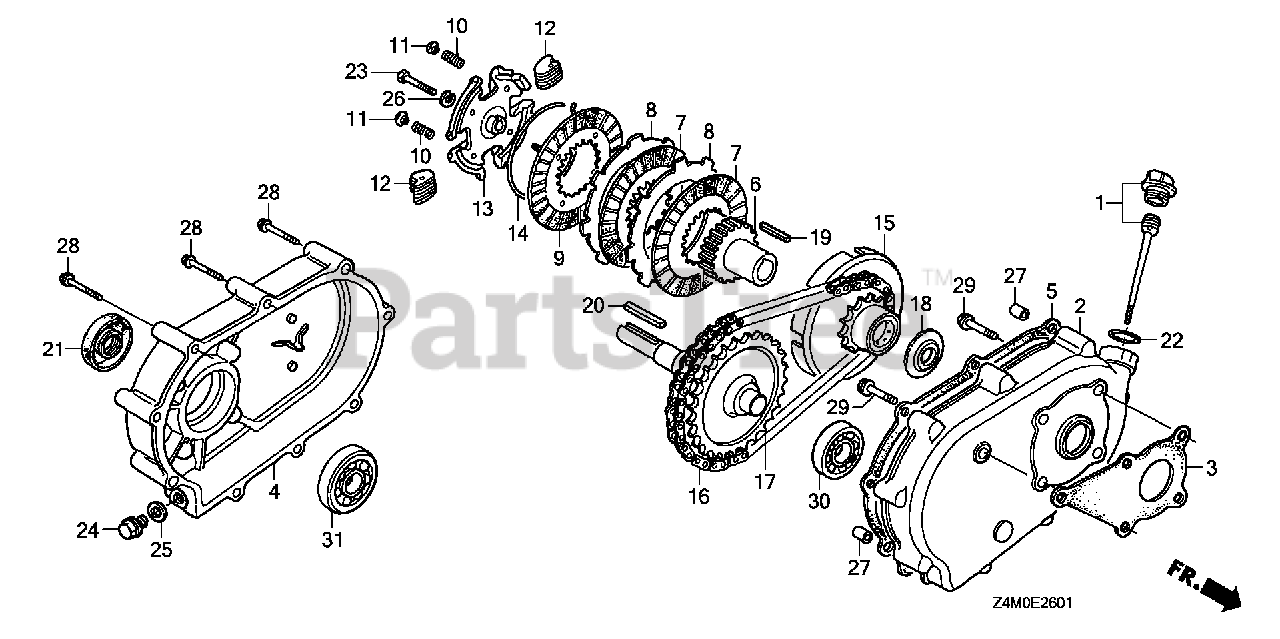

REDUCTION (2) Parts Diagram

  • Title

1

Honda 15600-ZH7-000

CAP ASSY., OIL FILLER

$14.99

$

In Stock, only 1 left!

0

2

Honda 21510-883-621

CASE, REDUCTION (Honda Code 0635912).

$182.99

$

Usually ships in 3-6 days

0

3

Honda 21591-ZH8-620

SEE PART DETAILS - PRI; GASKET, REDUCTION CASE (Honda Code 3683810).

$9.99

$

In Stock, only 1 left!

0

4

Honda 21610-822-611

COVER, REDUCTION (Honda Code 0397000).

$218.99

$

Usually ships in 3-6 days

0

5

Honda 21691-ZH8-800

GASKET, REDUCTION COVER (Honda Code 3683836).

$14.99

$

In Stock, only 1 left!

0

6

Honda 22121-883-620

CENTER, CLUTCH (Honda Code 0635938).

$83.99

$

Usually ships in 3-6 days

0

7

Honda 22201-822-306

SEE PART DETAILS - PRI; DISK, CLUTCH FRICTION (Honda Code 4369955).

$40.99

$

In Stock, Qty 10

0

8

Honda 22311-822-610

PLATE, CLUTCH (Honda Code 0397034).

$23.99

$

In Stock, Qty 7

0

9

Honda 22350-822-610

PLATE, CLUTCH PRESSURE (Honda Code 0397042).

$29.99

$

In Stock, Qty 5

0

10

Honda 22411-822-611

SPRING, CLUTCH FREE (Honda Code 0397059).

$3.99

$

Usually ships in 3-6 days

0

11

Honda 22421-822-610

HOLDER, CLUTCH SPRING (Honda Code 0397067).

$1.99

$

In Stock, only 1 left!

0

12

Honda 22521-822-610

WEIGHT, CLUTCH (Honda Code 0397075).

$4.99

$

Usually ships in 3-6 days

0

13

Honda 22531-883-620

HOLDER, CLUTCH WEIGHT (Honda Code 0635953).

$55.99

$

In Stock, only 1 left!

0

14

Honda 22535-822-610

CENTER, CLUTCH WEIGHT (Honda Code 0397091).

$2.99

$

Usually ships in 3-6 days

0

15

Honda 23120-883-621

SPROCKET COMP,DRI

$123.99

$

Usually ships in 3-6 days

0

16

Honda 23161-822-611

SEE PART DETAILS - PRI; CHAIN, DRIVE (RK428SH-36LE) (Honda Code 4195566).

$61.99

$

Usually ships in 3-6 days

0

17

Honda 23711-822-610

SHAFT, P.T.O. (28T) (Honda Code 0397125).

$71.99

$

Usually ships in 3-6 days

0

18

Honda 90403-883-620

WASHER, THRUST (20MM) (Honda Code 0636084).

$17.99

$

Usually ships in 3-6 days

0

19

Honda 90741-883-621

KEY (5MM) (Honda Code 0636092).

$7.49

$

Usually ships in 3-6 days

0

20

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33) (Honda Code 1064039).

$9.49

$

Usually ships in 3-6 days

0

21

Honda 91202-Z2F-801

SEE PART DETAILS - PRI; OIL SEAL (30X50X7)

$11.99

$

In Stock, Qty 11

0

22

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$4.99

$

In Stock, Qty 11

0

23

Honda 92101-08035-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X35) (Honda Code 4313359).

$1.49

$

Usually ships in 3-6 days

0

24

Honda 92800-12000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12MM) (Honda Code 0053975).

$5.49

$

In Stock, only 2 left!

0

25

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

26

Honda 94111-08800

SEE PART DETAILS - PRI; WASHER, SPRING (8MM) (Honda Code 0260331).

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94301-08100

SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 95701-06055-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X55) (Honda Code 2533834).

$2.99

$

In Stock, only 4 left!

0

29

Honda 95701-08022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X22) Use from Engine SN 1609607.

$2.99

$

In Stock, Qty 7

0

30

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$24.99

$

In Stock, only 3 left!

0

31

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$30.99

$

In Stock, only 1 left!

0
