GX160 UT2 QXM2 (GCBPT) - Honda Engine, Made in Thailand (SN: GCBPT-1000001 - GCBPT-9999999) FUEL TANK Parts Diagram

Engine, Made in Thailand

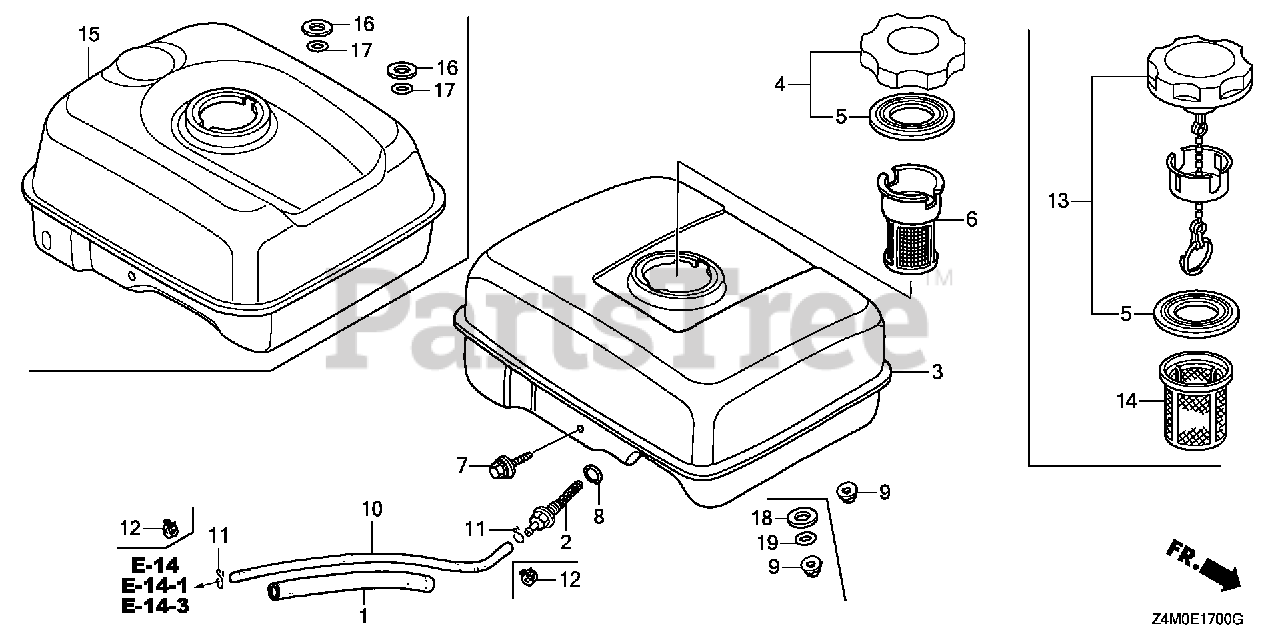

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

$5.49

$

In Stock, Qty 12

0

2

Honda 16955-ZE1-010

JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE1-030ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use from Engine SN 1041307.

$182.99

$

In Stock, only 1 left!

0

5

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (39X62X3) (RADICON)

$0.99

$

In Stock, Qty 8

0

7

Honda 90004-ZH7-003

BOLT, FLANGE (6X29)

$1.49

$

In Stock, Qty 7

0

8

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

8

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

9

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

10

Honda 91424-Z4M-003

TUBE, FUEL (4.5X145) (FKM)
(Superseded to 91424-Z4M-013)

$7.99

$

In Stock, only 1 left!

0

12

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, only 4 left!

0

13

Honda 17620-Z4H-020

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use up to Engine SN 1127586.

$79.99

$

In Stock, only 3 left!

0

13

Honda 17620-Z4H-030

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

$79.99

$

In Stock, only 3 left!

0

14

Honda 17672-Z4H-000

FILTER, FUEL

$11.99

$

In Stock, only 4 left!

0

15

Honda 17510-Z4M-000ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

$68.99

$

In Stock, only 2 left!

0
