GX160 UT1 SG24 (GCAFT) - Honda Engine, Made in Thailand (SN: GCAFT-1000001 - GCAFT-9999999) CYLINDER HEAD Parts Diagram

Engine, Made in Thailand

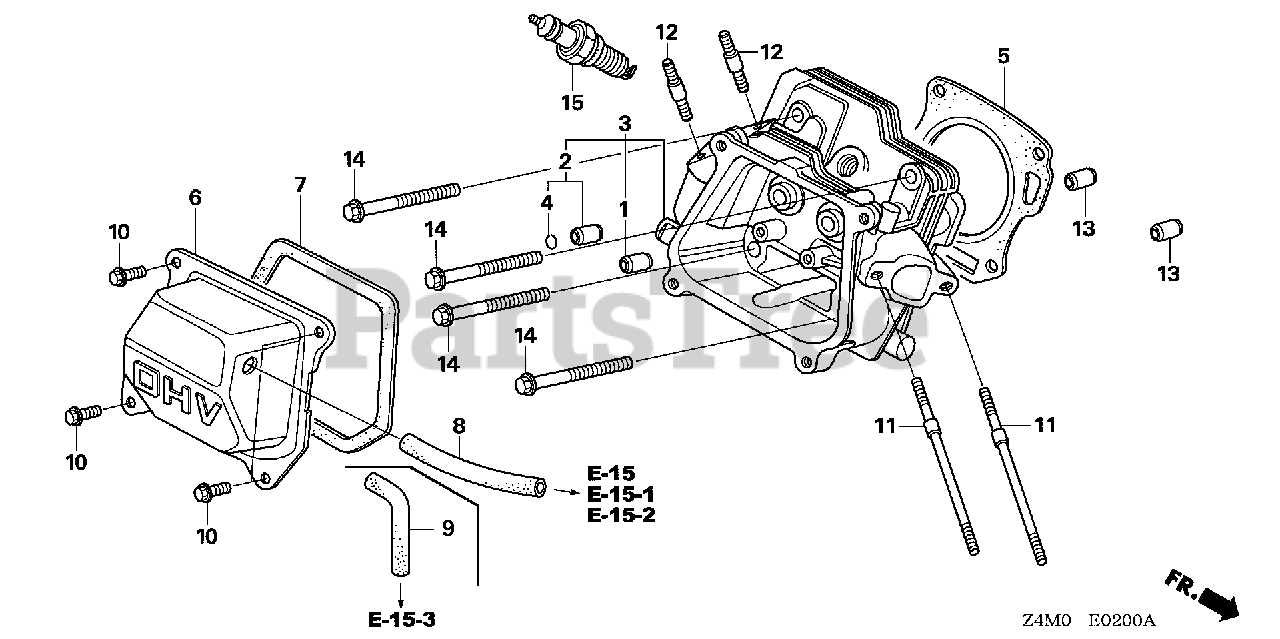

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12204-ZE1-306

GUIDE, VALVE (OS) (Honda Code 4165874).

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

2

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OS) (Honda Code 1899848).

Note: (Optional).

$10.99

$

In Stock, only 2 left!

0

3

Honda 12210-ZH8-020

SEE PART DETAILS - SUP; CYLINDER HEAD (Honda Code 6779243).

$

$

Not available

3

Honda 12210-ZH8-405

SEE PART DETAILS - PRI; CYLINDER HEAD (Honda Code 8140626).
(Superseded to 12210-ZH8-415)

$190.99

$

Usually ships in 3-6 days

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE (Honda Code 2399780).

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-ZF1-800

GASKET, CYLINDER HEAD (Honda Code 3683380).
(Superseded to 12251-ZF1-801)

$19.99

$

In Stock, only 1 left!

0

6

Honda 12310-ZE1-020

COVER, HEAD (Honda Code 6854921).

$18.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE1-000

GASKET, CYLINDER HEAD COVER (Honda Code 1426527).

$5.49

$

In Stock, Qty 20+

0

8

Honda 15721-ZH8-000

TUBE, BREATHER (Honda Code 3683497).

$4.99

$

In Stock, Qty 11

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

11

Honda 90043-ZE1-020

SEE PART DETAILS - PRI; BOLT, STUD (6X109) (Honda Code 4588323).

$6.99

$

In Stock, only 2 left!

0

12

Honda 90047-ZE1-000

BOLT, STUD (8X32) (Honda Code 1431097).

$4.99

$

In Stock, only 2 left!

0

13

Honda 94301-10160

PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

14

Honda 95723-08060-00

BOLT, FLANGE (8X60) (Honda Code 1436591).

$2.49

$

Usually ships in 3-6 days

0

15

Honda 98079-55876

SPARK PLUG (BPR5ES) (Honda Code 7348428). (NA USE ALT:98079-56876)
(Superseded to 98079-55846)

Note: (Optional).

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-56846

SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

$3.99

$

In Stock, Qty 20+

0
