GX160 UT1 SG24 (GCAFT) - Honda Engine, Made in Thailand (SN: GCAFT-1000001 - GCAFT-9999999) CYLINDER Parts Diagram

Engine, Made in Thailand

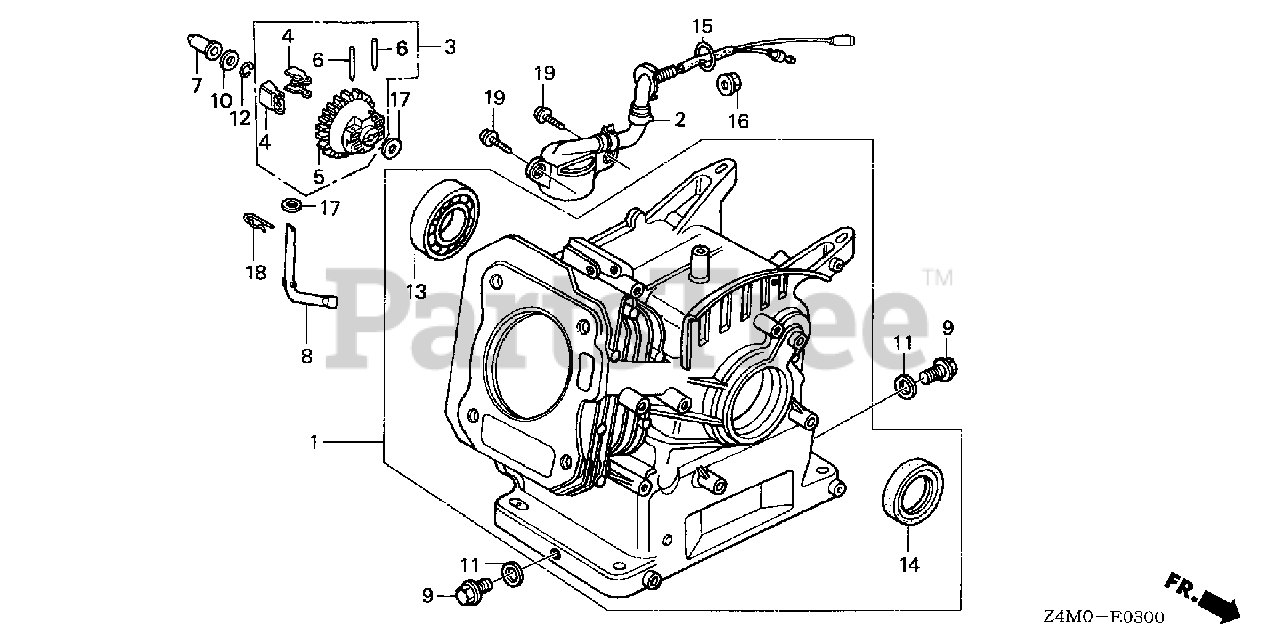

CYLINDER Parts Diagram

  • Title
1

Honda 12000-Z0T-406

CYLINDER ASSY. (OIL ALERT) (Honda Code 7351315).

$156.99

$

Usually ships in 3-6 days

0

2

Honda 15510-ZE1-033

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL (Honda Code 5962063).
(Superseded to 15510-ZE1-043)

$68.99

$

In Stock, Qty 9

0

3

Honda 16510-ZE1-000

GOVERNOR ASSY. (Honda Code 2414225).

$17.99

$

In Stock, only 2 left!

0

4

Honda 16511-ZE1-000

WEIGHT, GOVERNOR (Honda Code 1427228).

$4.49

$

Usually ships in 3-6 days

0

5

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT (Honda Code 1427236).

$25.99

$

In Stock, only 1 left!

0

6

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

7

Honda 16531-ZE1-000

SLIDER, GOVERNOR (Honda Code 1427251).

$3.49

$

In Stock, Qty 8

0

8

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM (Honda Code 1427277).

$13.99

$

Usually ships in 3-6 days

0

9

Honda 90131-ZE1-000

BOLT, DRAIN PLUG (Honda Code 1431246).

$3.49

$

In Stock, only 2 left!

0

10

Honda 90451-ZE1-000

WASHER, THRUST (6MM) (Honda Code 2413862).

$2.49

$

In Stock, only 2 left!

0

11

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

12

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

13

Honda 91001-ZF1-003

BEARING, RADIAL BALL (6205) (Honda Code 3684248).

$25.99

$

In Stock, only 3 left!

0

14

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$9.49

$

In Stock, Qty 11

0

15

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI) (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

16

Honda 94050-10000

NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

In Stock, Qty 5

0

17

Honda 94101-06800

WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

18

Honda 94251-08000

PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 9

0

19

Honda 95701-06012-00

BOLT, FLANGE (6X12) (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0
