GX160 UT1 SG24 (GCAFT) - Honda Engine, Made in Thailand (SN: GCAFT-1000001 - GCAFT-9999999) AIR CLEANER (1) Parts Diagram

Engine, Made in Thailand

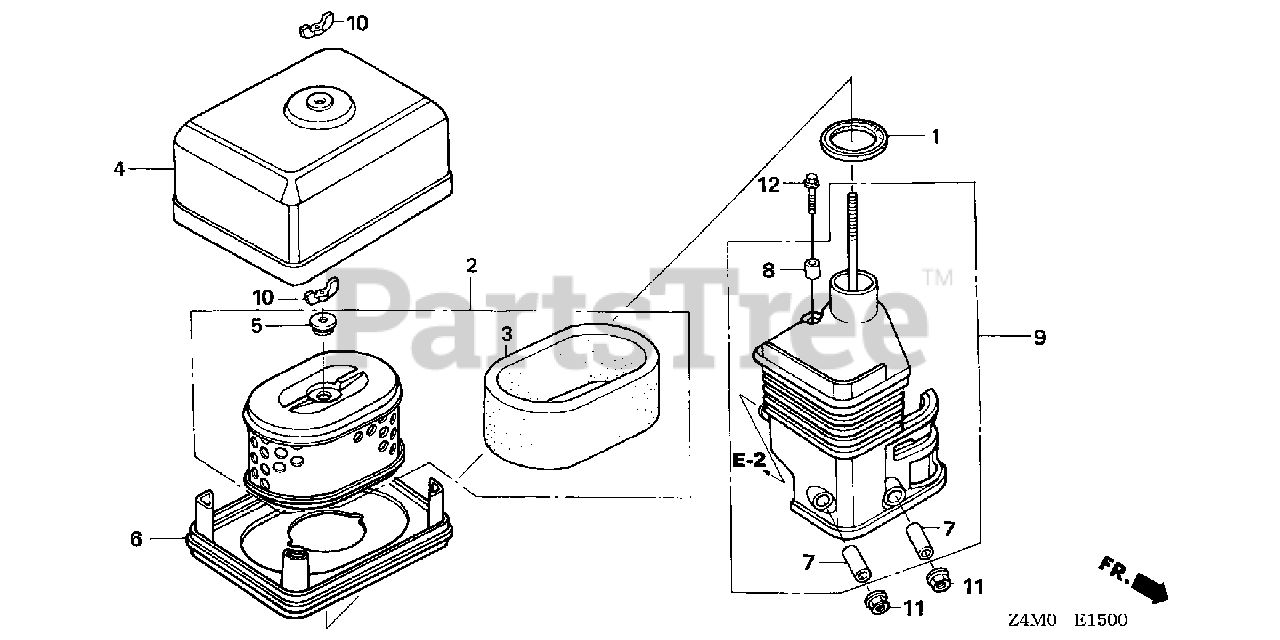

AIR CLEANER (1) Parts Diagram

  • Title

1

Honda 16271-ZE1-000

GASKET, ELBOW (Honda Code 1427194).

$4.99

$

In Stock, Qty 9

0

2

Honda 17210-ZE1-505

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER (DUAL) (Honda Code 5247408).
(Superseded to 17210-Z4M-821)

$9.99

$

In Stock, Qty 20+

0

2

Honda 17210-ZE1-517

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (DUAL) (Honda Code 7372444).
(Superseded to 17210-Z4M-821)

$9.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE1-505

SEE PART DETAILS - SUP; FILTER (OUTER) (Honda Code 5272802).
(Superseded to 17218-ZE1-821)

$11.99

$

In Stock, only 1 left!

0

3

Honda 17218-ZE1-507

SEE PART DETAILS - PRI; FILTER (OUTER) (Honda Code 7351885).
(Superseded to 17218-ZE1-821)

$11.99

$

In Stock, only 1 left!

0

4

Honda 17230-ZE1-820

COVER, AIR CLEANER (DUAL) (Honda Code 1445790).

$35.99

$

In Stock, only 2 left!

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.99

$

In Stock, Qty 15

0

6

Honda 17235-ZE1-831

NOSE, MUFFLER (Honda Code 4755260).

$31.99

$

In Stock, only 1 left!

0

7

Honda 17238-ZE7-010

COLLAR, AIR CLEANER (Honda Code 2455673).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER (Honda Code 1427533).

$4.99

$

In Stock, Qty 7

0

9

Honda 17410-ZE1-020

ELBOW, AIR CLEANER (Honda Code 2481653).
(Superseded to 17410-ZE1-030)

$40.99

$

In Stock, only 2 left!

0

10

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

11

Honda 94050-06000

NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

12

Honda 95701-06020-00

BOLT, FLANGE (6X20) (Honda Code 2105815).

$2.49

$

In Stock, Qty 6

0
