GX160 UH2 SCM (GCBCH) - Honda Engine, Made in China (SN: GCBCH-1000001 - GCBCH-9999999) RECOIL STARTER Parts Diagram

Engine, Made in China

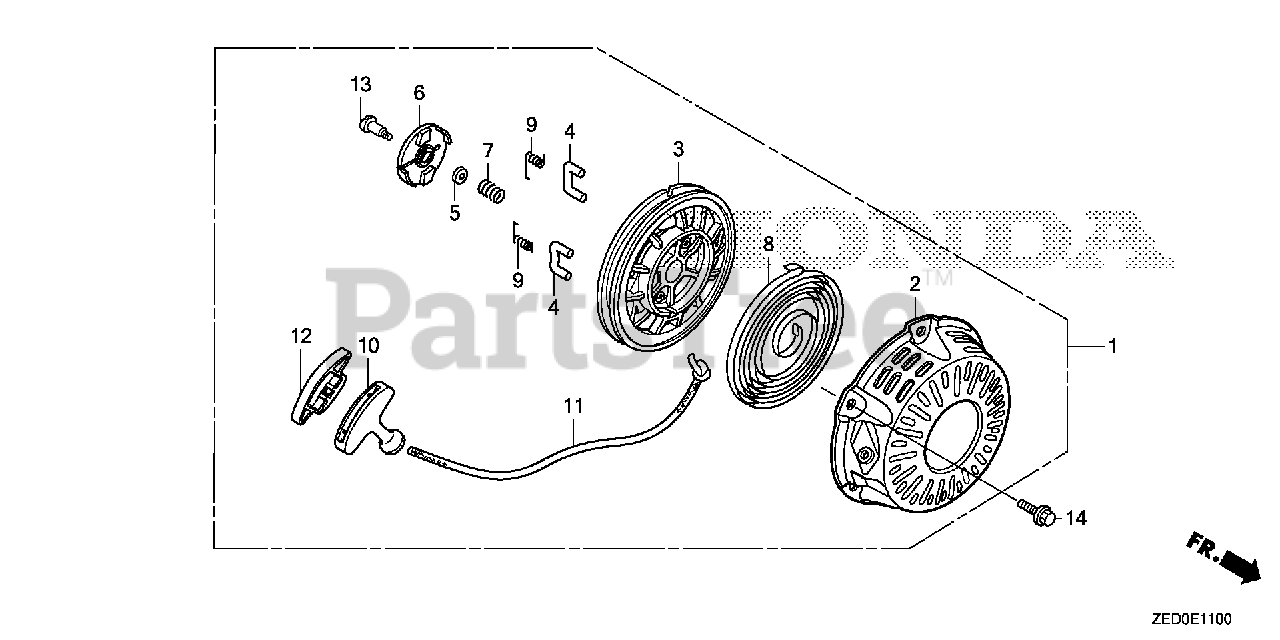

RECOIL STARTER Parts Diagram

  • Title
1

Honda 28400-ZED-801ZB

STARTER ASSY., RECOIL *NH1* (BLACK)

Note: Use from Engine SN 1129138.

$91.99

$

Usually ships in 3-6 days

0

1

Honda 28400-Z4M-801ZD

STARTER ASSY., RECOIL *NH1* (BLACK)

Note: Use up to Engine SN 1129137.

$16.99

$

In Stock, only 4 left!

0

2

Honda 28410-ZED-801ZB

CASE, RECOIL STARTER *NH1* (BLACK)

Note: Use from Engine SN 1129138.

$96.99

$

Usually ships in 3-6 days

0

2

Honda 28410-Z4M-003ZD

CASE, RECOIL STARTER *NH1* (BLACK)

Note: Use up to Engine SN 1129137.

$13.99

$

Usually ships in 3-6 days

0

3

Honda 28421-Z1T-702

REEL, RECOIL STARTER (BLACK)

$8.99

$

Usually ships in 3-6 days

0

4

Honda 28422-Z1T-701

RATCHET, STARTER

$6.99

$

In Stock, Qty 5

0

5

Honda 28431-ZH8-801

PLATE, FRICTION (Honda Code 7611981).

$5.49

$

Usually ships in 3-6 days

0

6

Honda 28433-Z1T-702

GUIDE, RATCHET

$7.99

$

In Stock, only 2 left!

0

7

Honda 28441-ZH8-801

SPRING, FRICTION (Honda Code 7612005).

$4.49

$

Usually ships in 3-6 days

0

8

Honda 28442-ZH8-003

SPRING, RECOIL STARTER (Honda Code 3683919).

$18.99

$

In Stock, Qty 10

0

9

Honda 28443-Z1T-701

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

10

Honda 28461-ZED-801

KNOB, RECOIL STARTER

Note: Use from Engine SN 1129138.

$7.99

$

Usually ships in 3-6 days

0

10

Honda 28461-Z4M-003

KNOB, RECOIL STARTER
(Superseded to 28461-Z4M-305)

Note: Use up to Engine SN 1129137.

$

$

Not available

11

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X55") (Honda Code 3683968).

$12.99

$

In Stock, only 4 left!

0

12

Honda 28463-ZED-801

KNOB, REINFORCEMENT

Note: Use from Engine SN 1129138.

$3.99

$

Usually ships in 3-6 days

0

12

Honda 28463-Z4M-003

KNOB, REINFORCEMENT

Note: Use up to Engine SN 1129137.

$3.49

$

In Stock, only 1 left!

0

13

Honda 90003-ZH8-801

SCREW, SETTING (Honda Code 7613474).

$4.49

$

In Stock, only 2 left!

0

14

Honda 90008-ZE2-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 6437289).

$1.99

$

In Stock, Qty 20+

0

14

Honda 95701-06008-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2552461).

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0
