GX160 U1 QFE4 (GCACK) - Honda Engine, Made in Japan (SN: GCACK-1000001 - GCACK-9999999) OTHER PARTS (TRANSMISSION GEAR) Parts Diagram

Engine, Made in Japan

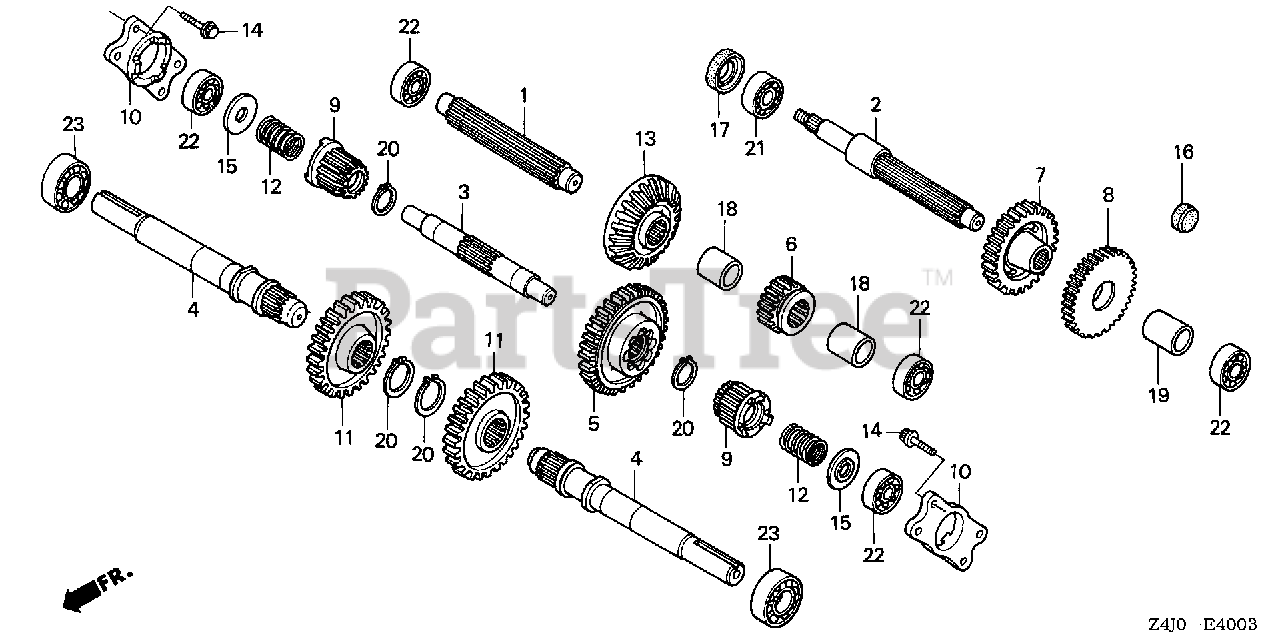

OTHER PARTS (TRANSMISSION GEAR) Parts Diagram

  • Title
1

Honda 23112-740-000

SHAFT, INPUT

$

$

Not available

2

Honda 23221-740-000

COUNTERSHAFT

$

$

Not available

3

Honda 23231-740-000

SHAFT, SIDE CLUTCH

$

$

Not available

4

Honda 23371-740-020

SHAFT, WHEEL

$

$

Not available

5

Honda 23407-766-000

GEAR, SIDE CLUTCH DRIVE (49T)

$

$

Not available

6

Honda 23411-740-010

GEAR, INPUT SHAFT CHANGE (19T)

$62.99

$

Usually ships in 3-6 days

0

7

Honda 23422-740-000

GEAR, COUNTERSHAFT (36T)

$

$

Not available

8

Honda 23431-776-000

GEAR, DRIVEN (42T)

$

$

Not available

9

Honda 23511-740-000

GEAR, SIDE CLUTCH (16T)

$

$

Not available

10

Honda 23521-740-000

CASE, SIDE CLUTCH BEARING

$122.99

$

Usually ships in 3-6 days

0

11

Honda 23581-740-000

GEAR, FINAL (35T)

$

$

Not available

12

Honda 40181-776-000

SPRING, SIDE CLUTCH

$4.99

$

Usually ships in 3-6 days

0

13

Honda 41141-740-000

GEAR, DRIVEN BEVEL (25T)

$

$

Not available

14

Honda 90030-PC8-000

BOLT, SPECIAL (8MM)

$12.99

$

Usually ships in 3-6 days

0

15

Honda 90501-740-010

WASHER, CLUTCH SPRING

$9.49

$

Usually ships in 3-6 days

0

16

Honda 90871-733-003

PLUG, SEALING (28) (ARAI)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 91202-740-003

OIL SEAL (20X31X7) (ARAI)

$8.49

$

Usually ships in 3-6 days

0

18

Honda 91551-776-000

COLLAR (22.3X28.5X37.25)

$6.49

$

Usually ships in 3-6 days

0

19

Honda 91552-776-000

COLLAR (22.3X28.5X43)

$7.49

$

Usually ships in 3-6 days

0

20

Honda 94510-25000

CIRCLIP (OUTER) (25MM)

$1.99

$

In Stock, Qty 12

0

21

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$20.99

$

In Stock, only 2 left!

0

22

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0

23

Honda 96100-62050-00

BEARING, RADIAL BALL (6205)

$24.99

$

In Stock, only 3 left!

0
