GX160 T2 QPW (GCBRT) - Honda Engine, Made in Thailand (SN: GCBRT-1000001 - GCBRT-9999999) CYLINDER BARREL Parts Diagram

Engine, Made in Thailand

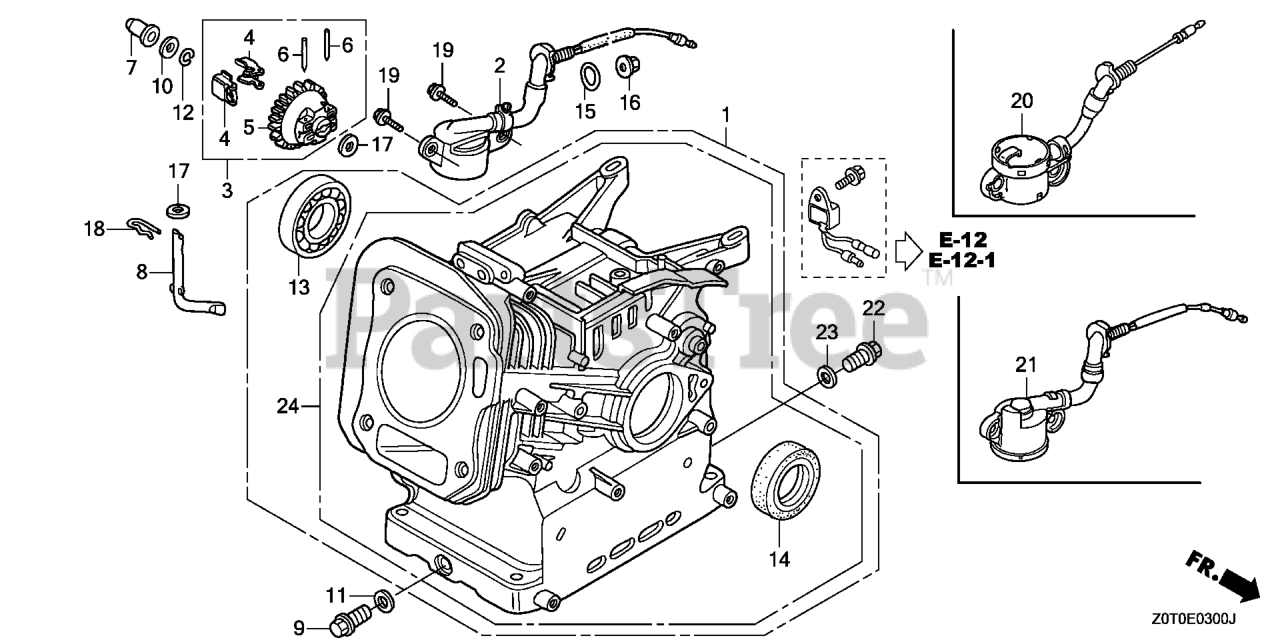

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-Z0T-409

CYLINDER ASSY.

$

$

Currently unavailable

3

Honda 16510-Z4M-000

GOVERNOR ASSY.

$14.99

$

In Stock, only 4 left!

0

4

Honda 16511-Z4M-000

WEIGHT, GOVERNOR

$6.49

$

Usually ships in 3-6 days

0

5

Honda 16512-Z4M-000

HOLDER, GOVERNOR WEIGHT

$13.99

$

Usually ships in 3-6 days

0

6

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

7

Honda 16531-Z4M-000

SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 11

0

8

Honda 16541-Z4M-000

SHAFT, GOVERNOR ARM

$24.99

$

In Stock, only 2 left!

0

9

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, Qty 12

0

11

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

12

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

Usually ships in 3-6 days

0

13

Honda 91001-ZF1-003

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 3684248).

$26.99

$

In Stock, Qty 5

0

13

Honda 91001-Z4X-003

BEARING, RADIAL BALL (6205) (NSK)

$13.99

$

Usually ships in 3-6 days

0

14

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$9.99

$

In Stock, Qty 20+

0

15

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

16

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

In Stock, Qty 20+

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

18

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 20+

0

19

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

20

Honda 35480-Z0T-003

SWITCH ASSY., OIL LEVEL

$84.99

$

Usually ships in 3-6 days

0

20

Honda 35480-Z4M-003

SWITCH ASSY., OIL LEVEL

$24.99

$

Usually ships in 3-6 days

0
