GX160 T2 LDW (GCBRT) - Honda Engine, Made in Thailand (SN: GCBRT-1000001 - GCBRT-9999999) PISTON Parts Diagram

Engine, Made in Thailand

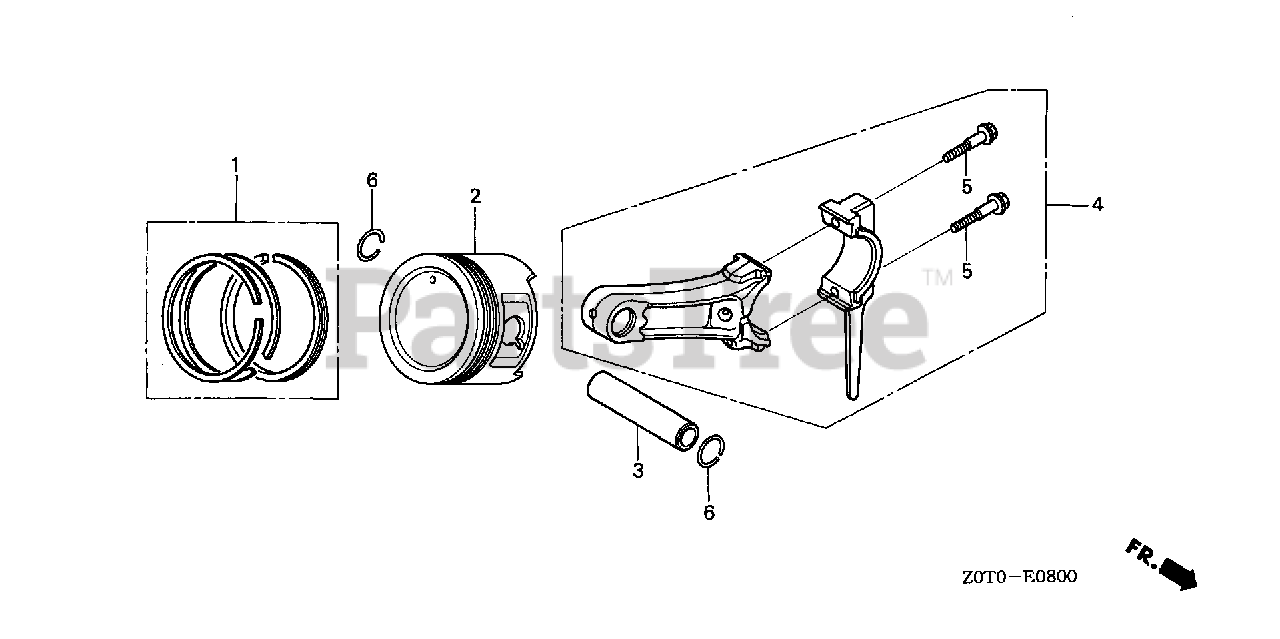

PISTON Parts Diagram

  • Title

1

Honda 13010-Z4M-801

RING SET, PISTON (STD) (RIKEN)

$36.99

$

In Stock, only 4 left!

0

1

Honda 13011-Z4K-004

RING SET, PISTON (0.25) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13011-Z4M-003

RING SET, PISTON (0.25) (RIKEN)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z4K-004

RING SET, PISTON (0.50) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z4M-003

RING SET, PISTON (0.50) (RIKEN)
(Superseded to 13010-Z4M-003)

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z4M-800

PISTON (STD)
(Superseded to 13101-Z4M-801)

$17.99

$

In Stock, only 1 left!

0

2

Honda 13102-Z4M-800

PISTON (0.25)
(Superseded to 13102-Z4M-801)

Note: (Optional).

$

$

Not available

2

Honda 13103-Z4M-800

PISTON (0.50)

Note: (Optional).

$

$

Not available

3

Honda 13111-Z4M-000

PIN, PISTON

$20.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z0T-900

ROD ASSY., CONNECTING

$15.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z4M-305

ROD ASSY., CONNECTING (UNDER SIZE)

Note: (Optional).

$

$

Currently unavailable

5

Honda 90001-Z4M-000

BOLT, CONNECTING ROD (6X34.5)

$4.99

$

Usually ships in 3-6 days

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.49

$

In Stock, Qty 18

0
