GX160 T1 QA2 (GCABT) - Honda Engine, Made in Thailand (SN: GCABT-1000001 - GCABT-9999999) CARBURETOR (2) Parts Diagram

Engine, Made in Thailand

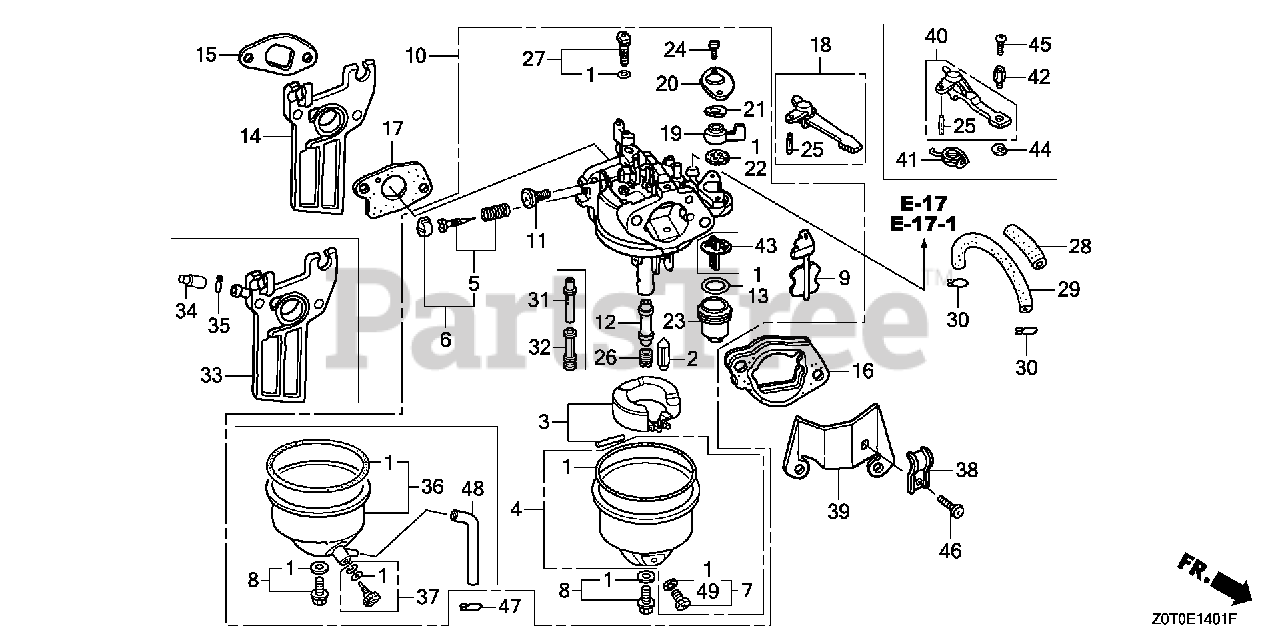

CARBURETOR (2) Parts Diagram

  • Title

1

Honda 16010-ZE1-812

SEE PART DETAILS - PRI; GASKET SET

$20.99

$

In Stock, Qty 7

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-Z0S-B01

FLOAT SET (CARBURETOR NO.)

$35.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

CHAMBER SET, FLOAT

$38.99

$

In Stock, only 2 left!

0

6

Honda 16016-ZH7-W01

SCREW SET, PILOT (CARBURETOR NO.)

$21.99

$

Usually ships in 3-6 days

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

8

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

8

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

9

Honda 16044-ZE0-005

CHOKE SET (CARBURETOR NO.)

$39.99

$

Usually ships in 3-6 days

0

10

Honda 16100-Z0T-911

CARBURETOR ASSY. (BE65Q A)

$41.99

$

In Stock, Qty 8

0

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

12

Honda 16166-ZH8-W50

NOZZLE, MAIN

$25.99

$

Usually ships in 3-6 days

0

13

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, only 2 left!

0

14

Honda 16211-ZE1-000

INSULATOR, CARBURETOR

$25.99

$

In Stock, only 1 left!

0

15

Honda 16212-ZH8-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 20+

0

16

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$8.49

$

In Stock, Qty 19

0

17

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

18

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$11.99

$

In Stock, Qty 8

0

19

Honda 16953-ZE1-812

LEVER, PETCOCK

$10.99

$

In Stock, Qty 10

0

20

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

21

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

22

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 20+

0

23

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$23.99

$

In Stock, only 3 left!

0

24

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 3 left!

0

25

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, only 4 left!

0

26

Honda 99101-ZK7-0650

JET, MAIN (#65)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

26

Honda 99101-ZK7-0680

JET, MAIN (#68)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

26

Honda 99101-ZK7-0700

JET, MAIN (#70)

$10.99

$

In Stock, Qty 9

0

27

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$23.99

$

In Stock, only 1 left!

0

28

Honda 16854-ZG0-960

RUBBER, SUPPORTER

$5.49

$

Usually ships in 3-6 days

0

29

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X300)

$54.99

$

In Stock, only 1 left!

0

30

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0
