GX160 RT2 EMAN (GCBPT) - Honda Engine, Made in Thailand (SN: GCBPT-1000001 - GCBPT-3999999) CYLINDER HEAD Parts Diagram

Engine, Made in Thailand

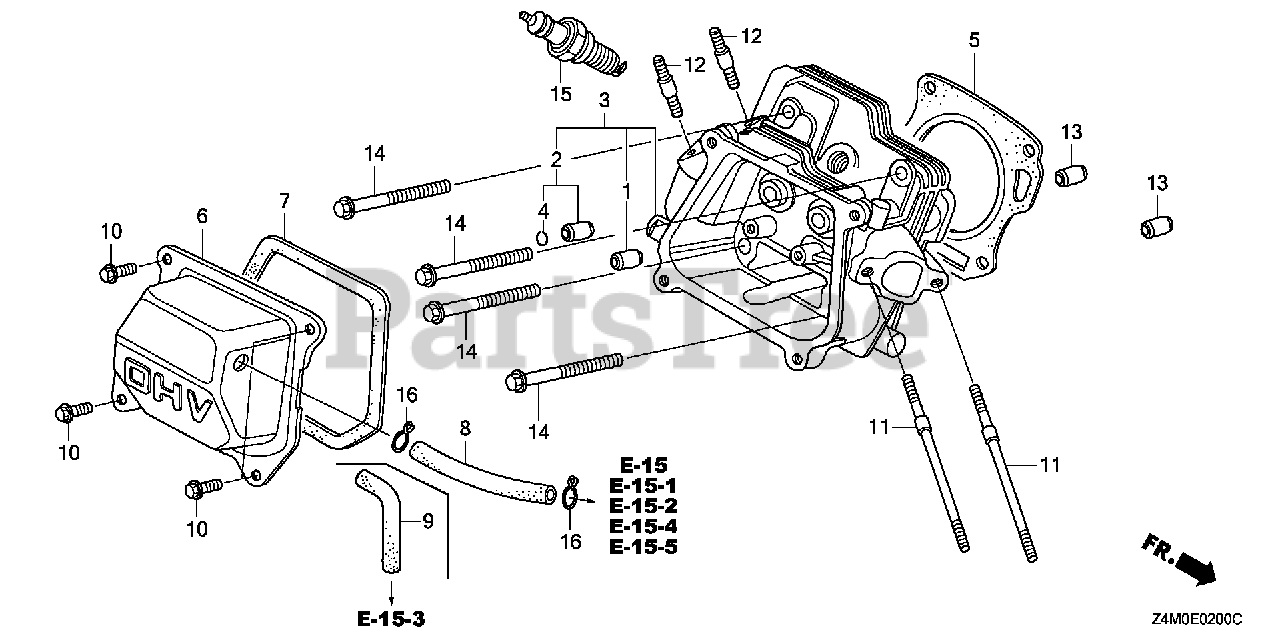

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE) Use from Engine SN 6324986.

$9.99

$

Usually ships in 3-6 days

0

2

Honda 12205-ZE1-315

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 1899848).

$10.99

$

In Stock, only 2 left!

0

3

Honda 12210-Z4M-405

CYLINDER HEAD

$52.99

$

Usually ships in 3-6 days

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE Use from Engine SN 1231803.

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-ZL0-003

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

$26.99

$

In Stock, only 3 left!

0

6

Honda 12310-Z4M-000

COVER, HEAD

$5.49

$

Usually ships in 3-6 days

0

6

Honda 12310-Z4M-010

COVER, HEAD
(Superseded to 12310-Z4M-020)

$5.49

$

In Stock, only 2 left!

0

7

Honda 12391-ZE1-000

GASKET, CYLINDER HEAD COVER (Honda Code 1426527).

$5.49

$

In Stock, Qty 20+

0

9

Honda 15721-883-030

TUBE, BREATHER Use from Engine SN 1556858.

$6.99

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

11

Honda 90043-ZB2-003

BOLT, STUD (6X94)

$6.99

$

Usually ships in 3-6 days

0

12

Honda 90047-ZE1-000

BOLT, STUD (8X32) (Honda Code 1431097).

$4.99

$

In Stock, only 2 left!

0

13

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

14

Honda 95701-08060-00

BOLT, FLANGE (8X60)

$1.99

$

In Stock, only 3 left!

0

15

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO) (Honda Code 1441120).

$3.99

$

In Stock, Qty 8

0
