GX160 K1 WME2 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) AIR CLEANER (2) Parts Diagram

Engine, Made in Japan

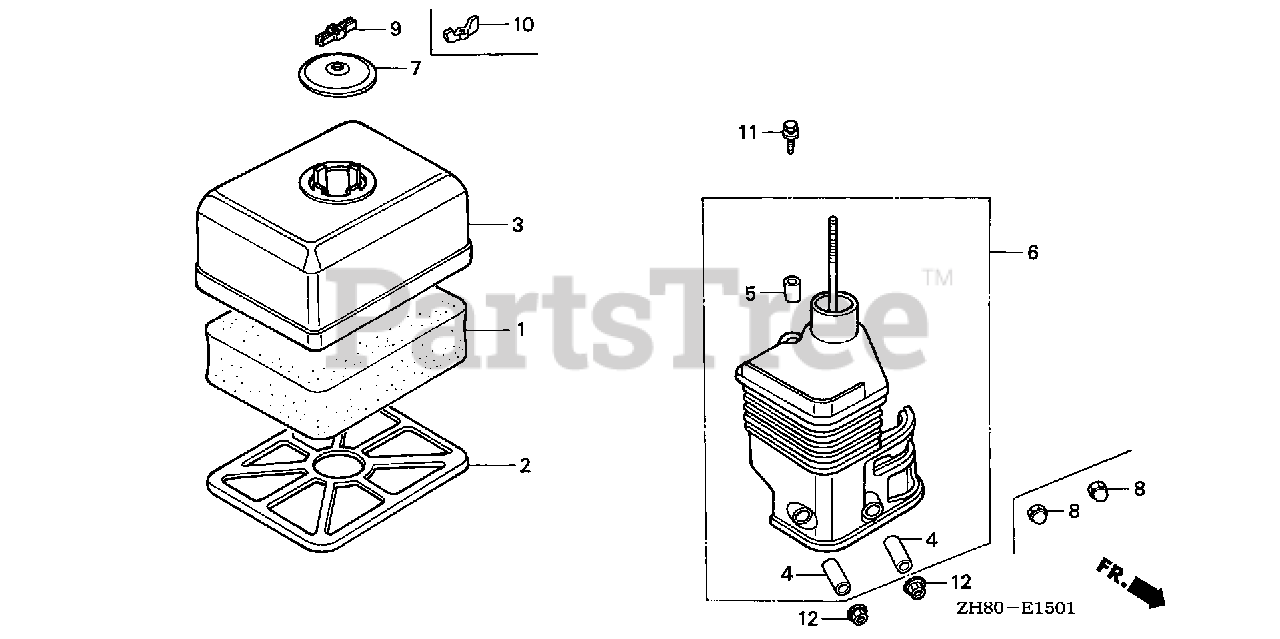

AIR CLEANER (2) Parts Diagram

  • Title
1

Honda 17211-ZE1-000

ELEMENT, AIR CLEANER (SEMI-DRY)

$9.99

$

In Stock, only 1 left!

0

2

Honda 17212-ZE1-000

GRID, AIR CLEANER (SEMI-DRY)

$9.49

$

In Stock, only 1 left!

0

3

Honda 17231-ZE1-000

COVER, AIR CLEANER (SEMI-DRY)

$52.99

$

Usually ships in 3-6 days

0

4

Honda 17238-ZE7-010

COLLAR, AIR CLEANER

$4.99

$

Usually ships in 3-6 days

0

5

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

$4.99

$

In Stock, Qty 7

0

6

Honda 17410-ZE1-020

SEE PART DETAILS - SUP; ELBOW, AIR CLEANER
(Superseded to 17410-ZE1-030)

$39.99

$

In Stock, only 3 left!

0

7

Honda 17421-ZE1-000

CAP, CLEANER

$12.99

$

In Stock, only 4 left!

0

10

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

11

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$2.49

$

In Stock, Qty 7

0

12

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
