GX160 K1 VWA2 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

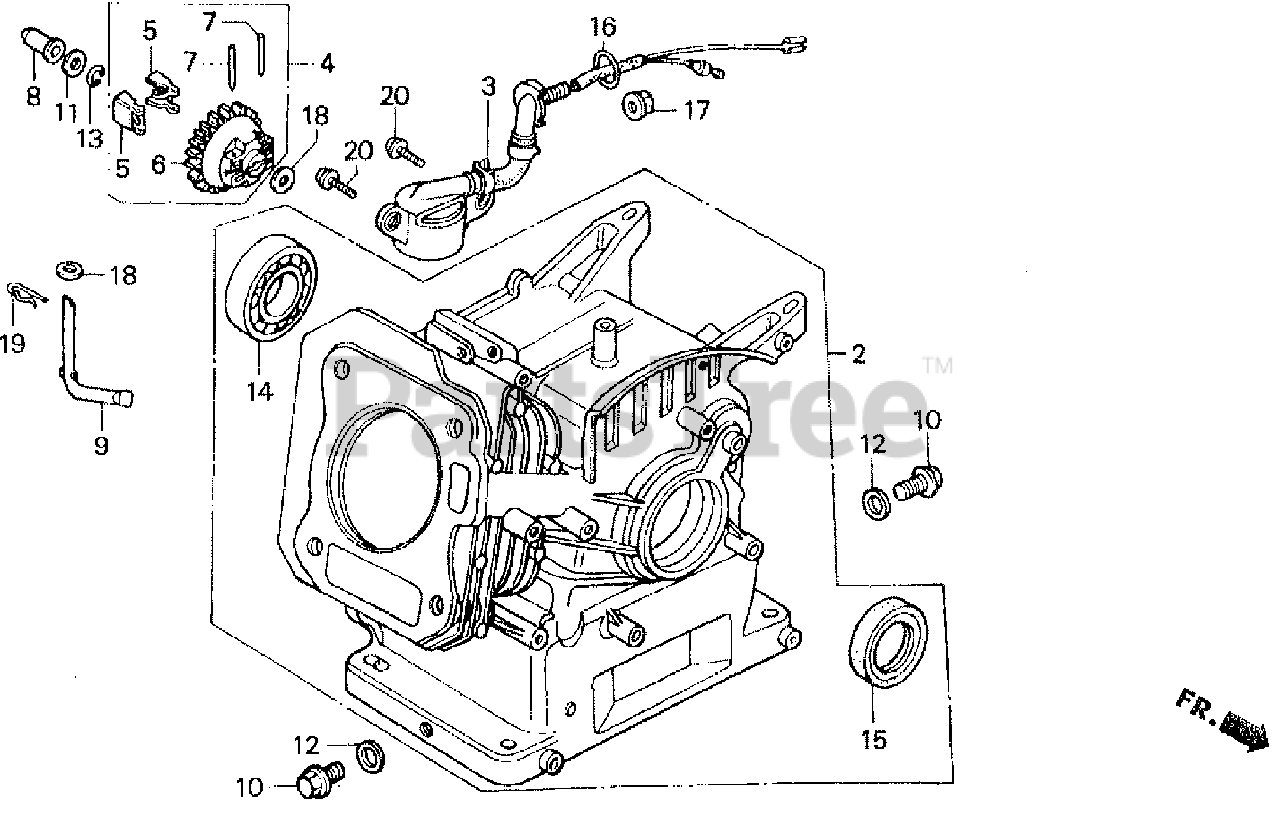

CYLINDER BARREL Parts Diagram

  • Title

2

Honda 12000-ZH8-811

CYLINDER ASSY. (OIL ALERT)

Note: (Honda Code 5032719).

$

$

Currently unavailable

3

Honda 15510-ZE1-013

SWITCH ASSY., OIL LEVEL

Note: Use up to Engine SN 4367320. (Honda Code 4192936).

$

$

Not available

3

Honda 15510-ZE1-023

SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE1-043)

Note: Use from Engine SN 4367321 to 5640312. (Honda Code 5262605).

$71.99

$

In Stock, Qty 9

0

3

Honda 15510-ZE1-023

SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE1-043)

Note: Use up to Engine SN 4367320. (Honda Code 5262605).

$71.99

$

In Stock, Qty 9

0

3

Honda 15510-ZE1-033

SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE1-043)

Note: Use from Engine SN 4367321. (Honda Code 5962063).

$71.99

$

In Stock, Qty 9

0

3

Honda 15510-ZE1-033

SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE1-043)

Note: Use up to Engine SN 4367320. (Honda Code 5962063).

$71.99

$

In Stock, Qty 9

0

4

Honda 16506-ZL0-000

GOVERNOR ASSY.

Note: Use from Engine SN 3943829. (Honda Code 4743076).

$34.99

$

In Stock, only 1 left!

0

4

Honda 16510-ZE1-000

GOVERNOR ASSY.

Note: Use up to Engine SN 3943828. (Honda Code 2414225).

$18.99

$

In Stock, only 1 left!

0

5

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

Note: (Honda Code 1427228).

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT

Note: (Honda Code 1427236).

$26.99

$

In Stock, only 1 left!

0

7

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

Note: (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

8

Honda 16531-ZE1-000

SLIDER, GOVERNOR

Note: (Honda Code 1427251).

$3.99

$

In Stock, Qty 6

0

9

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM

Note: (Honda Code 1427277).

$14.99

$

Usually ships in 3-6 days

0

10

Honda 90131-ZE1-000

BOLT, DRAIN PLUG

Note: (Honda Code 1431246).

$3.49

$

In Stock, only 2 left!

0

11

Honda 90451-ZE1-000

WASHER, THRUST (6MM)

Note: (Honda Code 2413862).

$2.49

$

In Stock, Qty 5

0

12

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

Note: (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

13

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

Usually ships in 3-6 days

0

14

Honda 91001-ZF1-003

BEARING, RADIAL BALL (6205)

Note: (Honda Code 3684248).

$26.99

$

In Stock, only 3 left!

0

15

Honda 91202-883-005

OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

Note: (Honda Code 0636936).

$9.99

$

In Stock, Qty 7

0

16

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

Note: (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

17

Honda 94050-10000

NUT, FLANGE (10MM)

Note: (Honda Code 0483867).

$1.99

$

In Stock, only 4 left!

0

18

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 94251-08000

PIN, LOCK (8MM)

Note: (Honda Code 0115527).

$1.99

$

In Stock, Qty 6

0

20

Honda 95701-06012-00

BOLT, FLANGE (6X12)

Note: (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0
