GX160 K1 VED7 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) CARBURETOR (2) Parts Diagram

Engine, Made in Japan

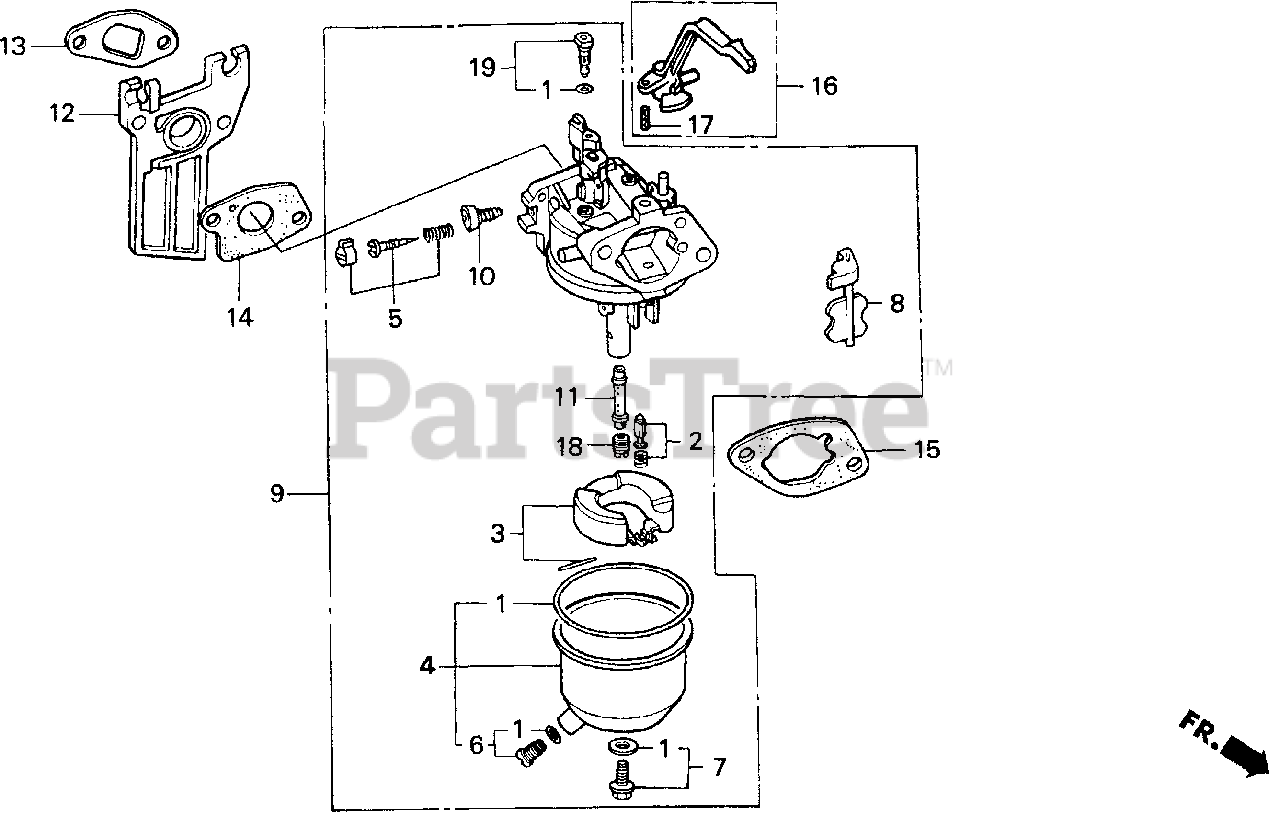

CARBURETOR (2) Parts Diagram

  • Title
1

Honda 16010-ZB1-015

GASKET SET

Note: (Honda Code 2036457).

$18.99

$

In Stock, only 3 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

Note: (Honda Code 1441476).

$28.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZE0-005

FLOAT SET

Note: (Honda Code 1441492).

$29.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

CHAMBER SET, FLOAT

Note: (Honda Code 2455608).

$37.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZH7-W01

SCREW SET

Note: (Honda Code 4219879).

$20.99

$

In Stock, only 3 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

Note: (Honda Code 1672187).

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: (Honda Code 1441518).

$13.99

$

In Stock, only 3 left!

0

8

Honda 16044-ZE0-005

CHOKE SET

Note: (Honda Code 1441526).

$37.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZH8-E81

CARBURETOR ASSY. (BE67A B)

Note: (Honda Code 5281274).

$89.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

Note: (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZH8-E80

NOZZLE, MAIN

Note: (Honda Code 4760120).

$28.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZE1-000

INSULATOR, CARBURETOR

Note: (Honda Code 1427137).

$23.99

$

In Stock, only 3 left!

0

13

Honda 16212-ZH8-800

GASKET, INSULATOR

Note: (Honda Code 3683547).

$3.49

$

In Stock, Qty 20+

0

14

Honda 16221-ZH8-801

GASKET, CARBURETOR

Note: (Honda Code 4725289).

$2.49

$

In Stock, Qty 20+

0

15

Honda 16269-ZE1-800

GASKET, AIR CLEANER

Note: (Honda Code 4006482).

$2.99

$

In Stock, Qty 20+

0

16

Honda 16610-ZB2-000

LEVER, CHOKE

Note: (Honda Code 1496595).

$8.99

$

Usually ships in 3-6 days

0

17

Honda 94305-20122

PIN, SPRING (2X12)

Note: (Honda Code 1441591).

$2.49

$

In Stock, Qty 5

0

18

Honda 99101-ZH8-0700

JET, MAIN (#70)
(Superseded to 99101-ZK7-0700)

Note: (Optional). (Honda Code 5427505).

$9.99

$

In Stock, Qty 9

0

18

Honda 99101-ZH8-0720

JET, MAIN (#72)

Note: (Optional). (Honda Code 6056139).

$8.49

$

In Stock, only 1 left!

0

18

Honda 99101-ZH8-0750

JET, MAIN (#75)

Note: (Honda Code 6056147).

$8.49

$

In Stock, only 1 left!

0

19

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

Note: (Honda Code 1441609).

$22.99

$

In Stock, only 3 left!

0
