GX160 K1 VED7 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) AIR CLEANER (4) Parts Diagram

Engine, Made in Japan

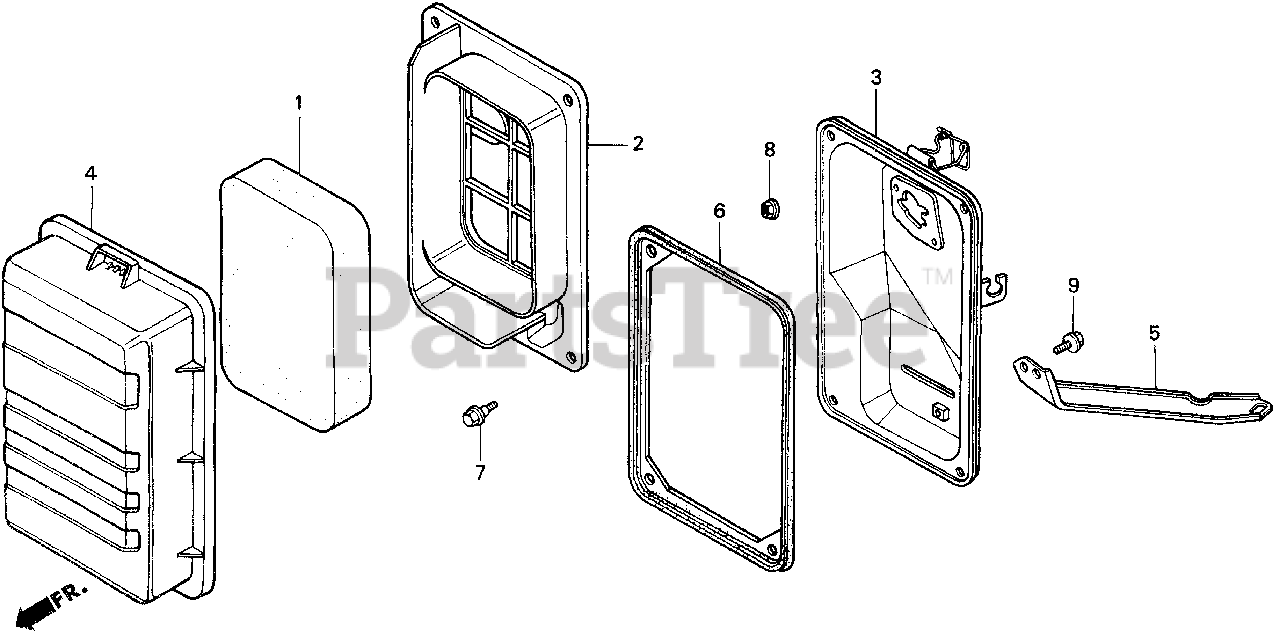

AIR CLEANER (4) Parts Diagram

  • Title
1

Honda 17211-ZB2-000

ELEMENT, AIR CLEANER

Note: (Honda Code 1496603).

$9.99

$

In Stock, Qty 10

0

2

Honda 17212-ZB2-000

SEPARATOR, AIR CLEANER

Note: (Honda Code 1496611).

$44.99

$

In Stock, only 2 left!

0

3

Honda 17220-ZB2-000

HOUSING, AIR CLEANER
(Superseded to 17220-ZB2-010)

Note: (Honda Code 1496629).

$68.99

$

Usually ships in 3-6 days

0

4

Honda 17231-ZB2-000

COVER, AIR CLEANER

Note: (Honda Code 1496637).

$64.99

$

Usually ships in 3-6 days

0

5

Honda 17239-ZB2-000

STAY, AIR CLEANER

Note: (Honda Code 1496645).

$11.99

$

Usually ships in 3-6 days

0

6

Honda 17252-ZB2-000

SEAL, AIR CLEANER

Note: (Honda Code 1496652).

$17.99

$

Usually ships in 3-6 days

0

7

Honda 90115-459-770

BOLT, SETTING

Note: (Honda Code 0956763).

$5.49

$

Usually ships in 3-6 days

0

8

Honda 94050-06080

NUT, FLANGE (6MM)

Note: (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

9

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0
