GX160 K1 VED2 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) VED2 FUEL TANK Parts Diagram

Engine, Made in Japan

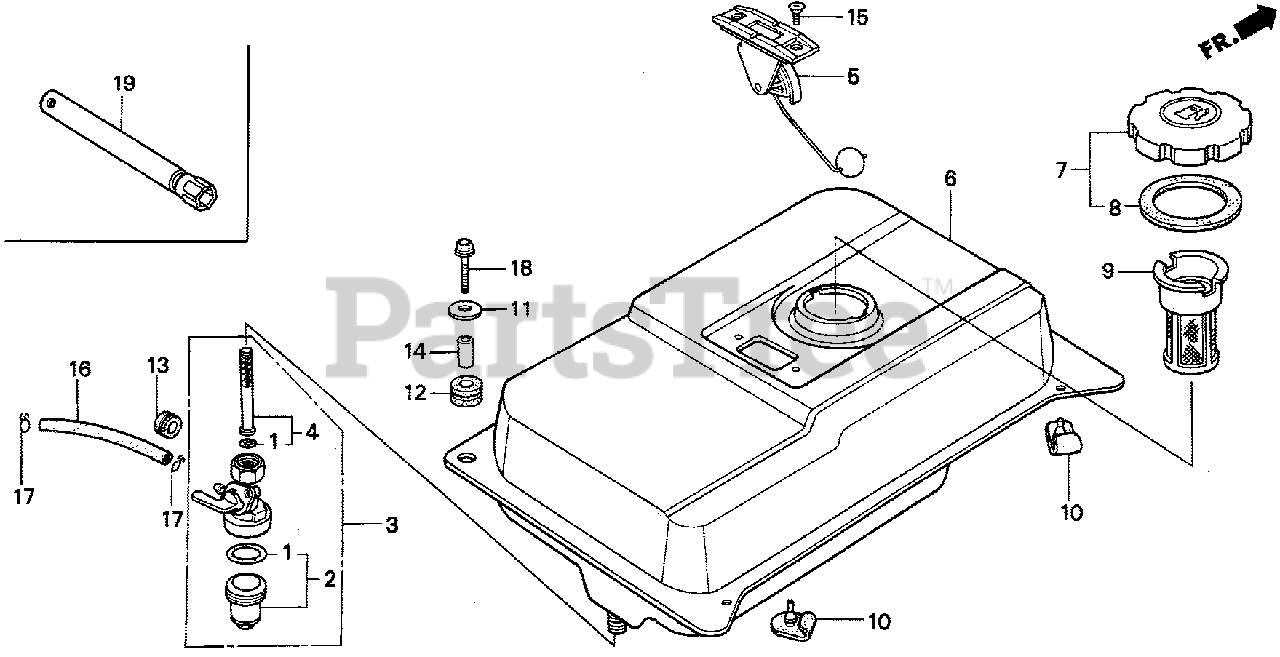

VED2 FUEL TANK Parts Diagram

  • Title

1

Honda 16080-898-631

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL; USE AS NEEDED)

Note: (Honda Code 1176726).

$29.99

$

Usually ships in 3-6 days

0

2

Honda 16081-471-831

CUP, FUEL STRAINER

Note: (Honda Code 1076439).

$30.99

$

In Stock, only 1 left!

0

3

Honda 16950-898-632

PETCOCK ASSY.
(Superseded to 16950-898-633)

Note: (Honda Code 3416468).

$57.99

$

In Stock, only 1 left!

0

4

Honda 16952-883-005

SCREEN SET

Note: (Honda Code 0674580).

$18.99

$

In Stock, only 1 left!

0

5

Honda 17505-ZB2-003

METER ASSY., FUEL
(Superseded to 17505-ZB2-013)

Note: (Honda Code 1496660).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 17510-ZB2-000ZG

TANK, FUEL *T68* (TSURUI BLUE)

Note: (Honda Code 4760625).

$300.99

$

Usually ships in 3-6 days

0

6

Honda 17510-ZB2-000ZH

TANK, FUEL *Y131* (LIGHTNING YELLOW)

Note: (Honda Code 5198403).

$271.99

$

Usually ships in 3-6 days

0

7

Honda 17620-ZH7-023

CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: (Honda Code 5344817).

$

$

Not available

8

Honda 17631-ZH7-003

GASKET, FUEL FILLER CAP
(Superseded to 17631-329-003)

Note: (Honda Code 4608725).

$

$

Not available

9

Honda 17670-ZH7-A21

FILTER, FUEL

Note: (Honda Code 4716908).

$13.99

$

Usually ships in 3-6 days

0

10

Honda 50319-ZB2-000

RUBBER, TANK MOUNTING

Note: (Honda Code 1497346).

$4.99

$

Usually ships in 3-6 days

0

11

Honda 91412-538-000

WASHER, FLAT (20MM)

Note: (Honda Code 0512277).

$

$

Not available

12

Honda 90852-898-000

RUBBER, CONTROL BOX

Note: Use up to Engine SN 3768118. (Honda Code 1106814).

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90854-ZB2-000

RUBBER, FUEL TUBE

Note: Use up to Engine SN 4795103. (Honda Code 1497635).

$4.49

$

Usually ships in 3-6 days

0

13

Honda 90854-ZB3-000

RUBBER, FUEL

Note: Use from Engine SN 4795104. (Honda Code 5581020).

$4.49

$

In Stock, only 1 left!

0

14

Honda 91552-898-000

COLLAR, CONTROL BOX

Note: (Honda Code 1106855).

$4.99

$

Usually ships in 3-6 days

0

15

Honda 93600-05010-0A

SCREW, FLAT (5X10)

Note: (Honda Code 0181529).

$1.49

$

In Stock, only 3 left!

0

16

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X150)

Note: Use from Engine SN 4263876. (Honda Code 5137104).

$54.99

$

In Stock, only 4 left!

0

16

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X260)

Note: Use up to Engine SN 4263875. (Honda Code 5137104).

$54.99

$

In Stock, only 4 left!

0

17

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, only 4 left!

0

18

Honda 95701-06020-00

BOLT, FLANGE (6X20)

Note: (Honda Code 2105815).

$2.49

$

In Stock, Qty 9

0

19

Honda 99004-21001

WRENCH, BOX (P21)

Note: (Honda Code 0268201).

$4.99

$

Usually ships in 3-6 days

0
