GX160 K1 VED2 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) RECOIL STARTER Parts Diagram

Engine, Made in Japan

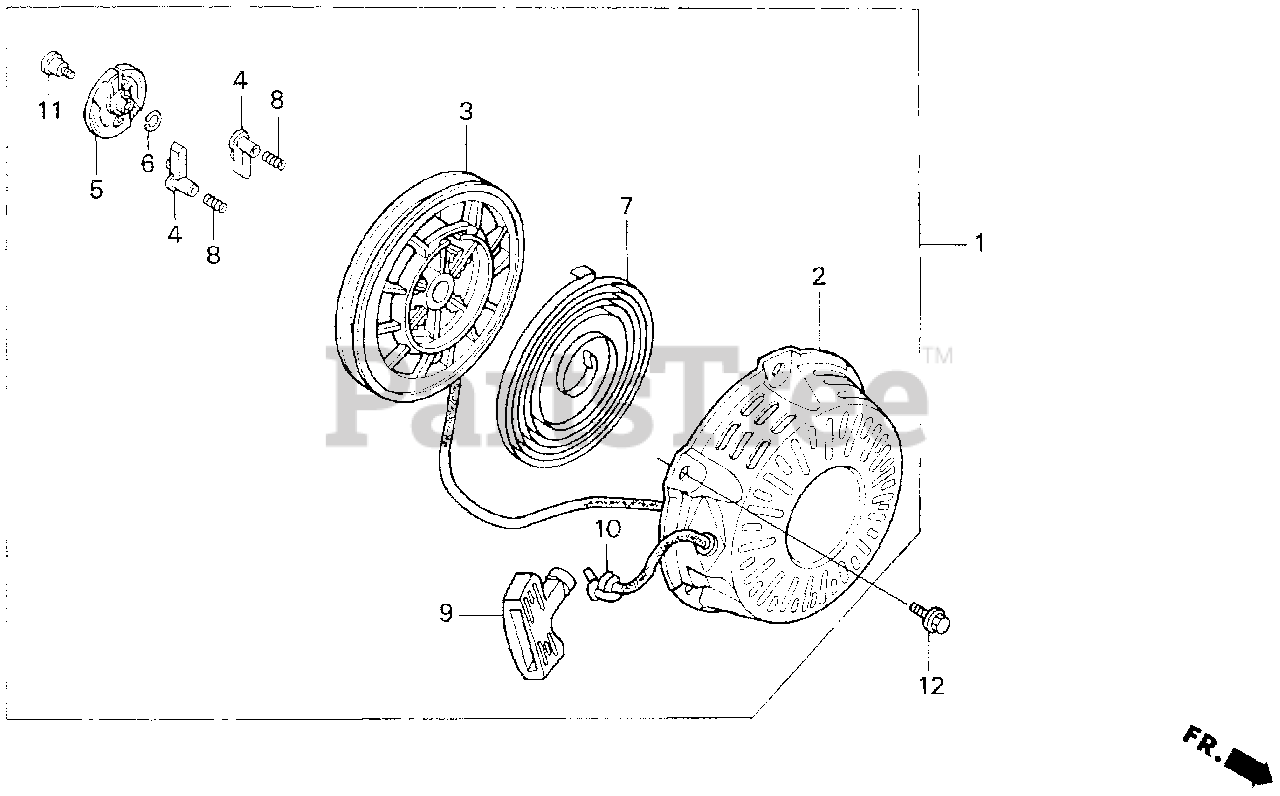

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZH8-013ZP

STARTER ASSY., RECOIL *T68* (TSURUI BLUE)

Note: (Honda Code 4761953).

$

$

Not available

1

Honda 28400-ZH8-013ZQ

STARTER ASSY., RECOIL *Y131* (LIGHTNING YELLOW)

Note: (Honda Code 5198379).

$

$

Not available

2

Honda 28410-ZH8-003ZP

CASE, RECOIL STARTER *T68* (TSURUI BLUE)

Note: (Honda Code 4762001).

$163.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZH8-003ZQ

CASE, RECOIL STARTER

Note: (Honda Code 5198387).

$140.99

$

Usually ships in 3-6 days

0

3

Honda 28420-ZH8-013

REEL, RECOIL STARTER

Note: (Honda Code 4193066).

$44.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZH8-013

RATCHET, STARTER

Note: (Honda Code 4193074).

$8.99

$

In Stock, only 1 left!

0

5

Honda 28433-ZH8-003

GUIDE, RATCHET

Note: (Honda Code 3683893).

$12.99

$

Usually ships in 3-6 days

0

6

Honda 28441-ZH8-003

SPRING, FRICTION

Note: (Honda Code 3683901).

$6.49

$

In Stock, only 1 left!

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

Note: (Honda Code 3683919).

$18.99

$

In Stock, Qty 10

0

8

Honda 28443-ZH8-003

SPRING, RETURN

Note: (Honda Code 3683927).

$5.99

$

In Stock, only 1 left!

0

9

Honda 28461-ZH8-003

KNOB, RECOIL STARTER
(Superseded to 28461-ZH8-013)

Note: (Honda Code 3683950).

$8.49

$

In Stock, Qty 8

0

10

Honda 28462-ZH8-003

ROPE, RECOIL STARTER (NA USE ALT:08550-ZG921-11)

Note: (Honda Code 3683968).

$12.99

$

In Stock, only 4 left!

0

11

Honda 90003-ZH8-003

SCREW, SETTING

Note: (Honda Code 3684222).

$6.99

$

Usually ships in 3-6 days

0

12

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

Note: (Honda Code 6437289).

$1.99

$

In Stock, Qty 20+

0
