GX160 K1 VED2 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) PISTON + RINGS Parts Diagram

Engine, Made in Japan

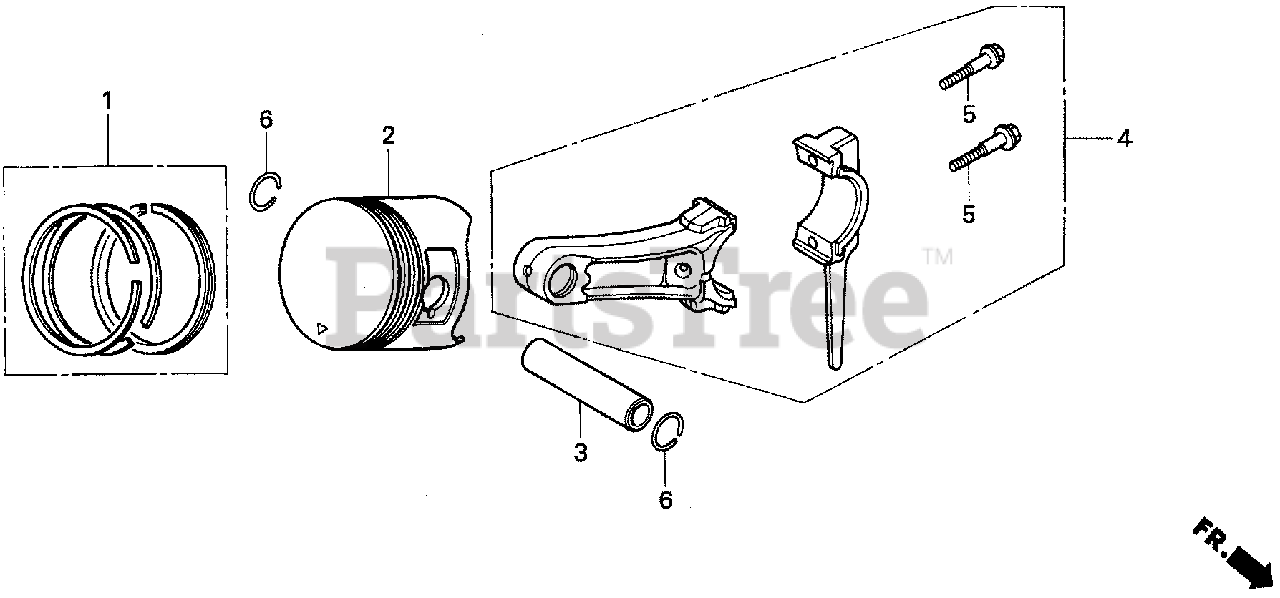

PISTON + RINGS Parts Diagram

  • Title

1

Honda 13010-ZF1-023

RING SET, PISTON (STD)

Note: Use up to Engine SN 4733210. (Honda Code 3011285).

$33.99

$

In Stock, only 1 left!

0

1

Honda 13010-ZF1-024

RING SET, PISTON (STD)

Note: Use up to Engine SN 4733210. (Honda Code 3023579).

$

$

Currently unavailable

1

Honda 13010-ZH8-941

RING SET, PISTON (STD)

Note: Use from Engine SN 4733211. (Honda Code 5396585).

$42.99

$

Usually ships in 3-6 days

0

1

Honda 13010-ZH8-942

RING SET, PISTON (STD)

Note: Use from Engine SN 4733211. (Honda Code 5396593).

$

$

Currently unavailable

1

Honda 13011-ZF1-023

RING SET, PISTON (OS 0.25)

Note: (Honda Code 3018025).

$46.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZF1-024

RING SET, PISTON (OS 0.25)
(Superseded to 13011-ZF1-023)

Note: (Honda Code 2995405).

$46.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZF1-023

RING SET, PISTON (OS 0.50)

Note: (Honda Code 3018033).

$

$

Not available

1

Honda 13013-ZF1-023

RING SET, PISTON (0.75)
(Superseded to 13013-ZF1-024)

Note: (Optional). (Honda Code 3018058).

$

$

Not available

2

Honda 13101-ZH8-000

PISTON (STD)
(Superseded to 13101-ZH8-010)

Note: (Honda Code 3683398).

$45.99

$

In Stock, only 1 left!

0

2

Honda 13102-ZH8-000

PISTON (OS 0.25)
(Superseded to 13102-ZH8-010)

Note: (Optional). (Honda Code 3683406).

$45.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZH8-000

PISTON (OS 0.50)

Note: (Optional). (Honda Code 3683414).

$

$

Not available

2

Honda 13104-ZH8-000

PISTON (0.75)
(Superseded to 13104-ZH8-010)

Note: (Optional). (Honda Code 3683422).

$45.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE1-000

PIN, PISTON

Note: (Honda Code 1426584).

$12.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE1-010

ROD ASSY., CONNECTING
(Superseded to 13200-Z0T-800)

Note: (Honda Code 4725255).

$13.99

$

In Stock, only 1 left!

0

5

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

Note: (Honda Code 1431055).

$3.99

$

In Stock, only 2 left!

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

Note: (Honda Code 2539120).

$1.49

$

In Stock, Qty 20+

0
