GX160 K1 VED2 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) MUFFLER Parts Diagram

Engine, Made in Japan

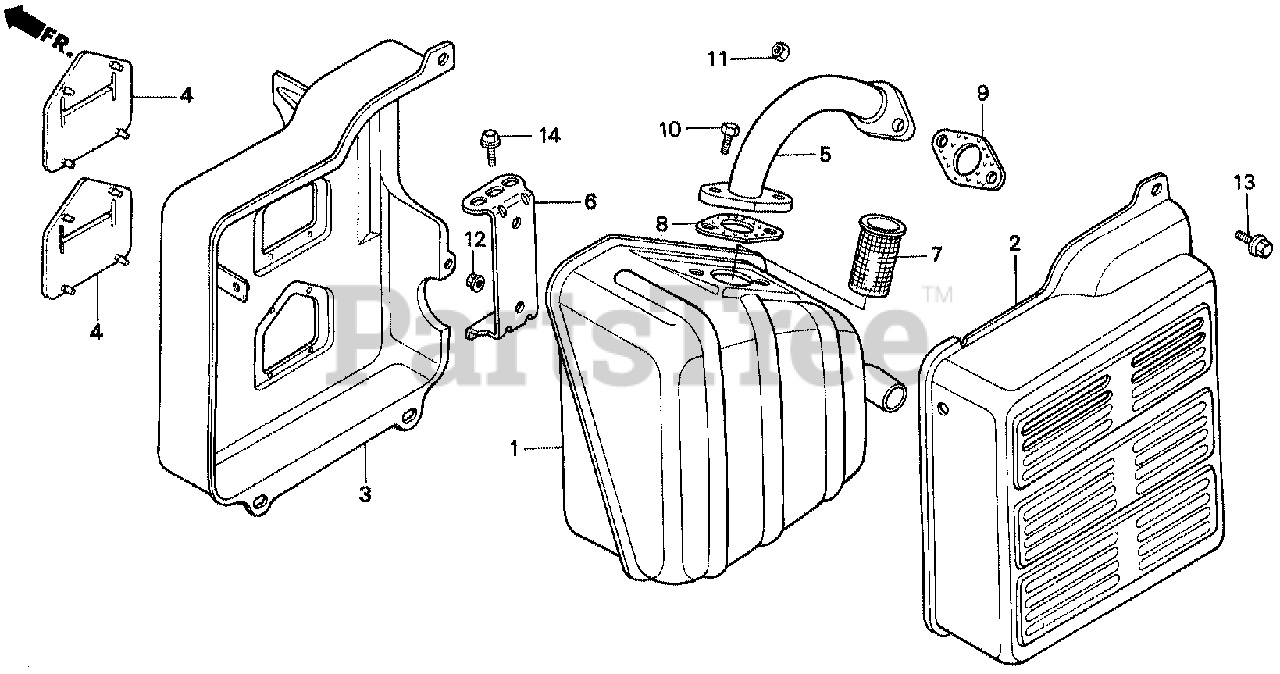

MUFFLER Parts Diagram

  • Title

1

Honda 18310-ZB3-C00

MUFFLER

Note: (Honda Code 4031779).

$

$

Not available

2

Honda 18320-ZB2-000

PROTECTOR, MUFFLER (OUTER)

Note: (Honda Code 1496702).

$81.99

$

Usually ships in 3-6 days

0

3

Honda 18325-ZB2-000

PROTECTOR, MUFFLER (INNER)

Note: (Honda Code 1496710).

$104.99

$

Usually ships in 3-6 days

0

4

Honda 18329-ZB2-000

SEAL, MUFFLER PROTECTOR

Note: (Honda Code 1496728).

$12.99

$

Usually ships in 3-6 days

0

5

Honda 18330-ZB2-000

PIPE, EX.

Note: (Honda Code 1496736).

$40.99

$

Usually ships in 3-6 days

0

6

Honda 18338-ZB3-E30

STAY, MUFFLER

Note: (Honda Code 4031787).

$20.99

$

Usually ships in 3-6 days

0

7

Honda 18355-898-630

ARRESTER, SPARK

Note: (Honda Code 1105873).

$23.99

$

Usually ships in 3-6 days

0

8

Honda 18381-ZE1-800

GASKET, MUFFLER
(Superseded to 18381-ZE1-801)

Note: (Honda Code 4006565).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 18381-ZH8-800

GASKET, MUFFLER
(Superseded to 18381-ZH8-801)

Note: (Honda Code 3683745).

$4.49

$

In Stock, only 1 left!

0

10

Honda 92101-08020-0A

BOLT, HEX. (8X20)

Note: (Honda Code 2936243).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 94001-08000-0S

NUT, HEX. (8MM)

Note: (Honda Code 0167338).

$1.99

$

In Stock, Qty 10

0

12

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

13

Honda 95701-06012-00

BOLT, FLANGE (6X12)

Note: (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0

14

Honda 95701-08020-08

BOLT, FLANGE (8X20)

Note: (Honda Code 2440477).

$2.49

$

Usually ships in 3-6 days

0
