GX160 K1 VED2 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) FUEL TANK (4) Parts Diagram

Engine, Made in Japan

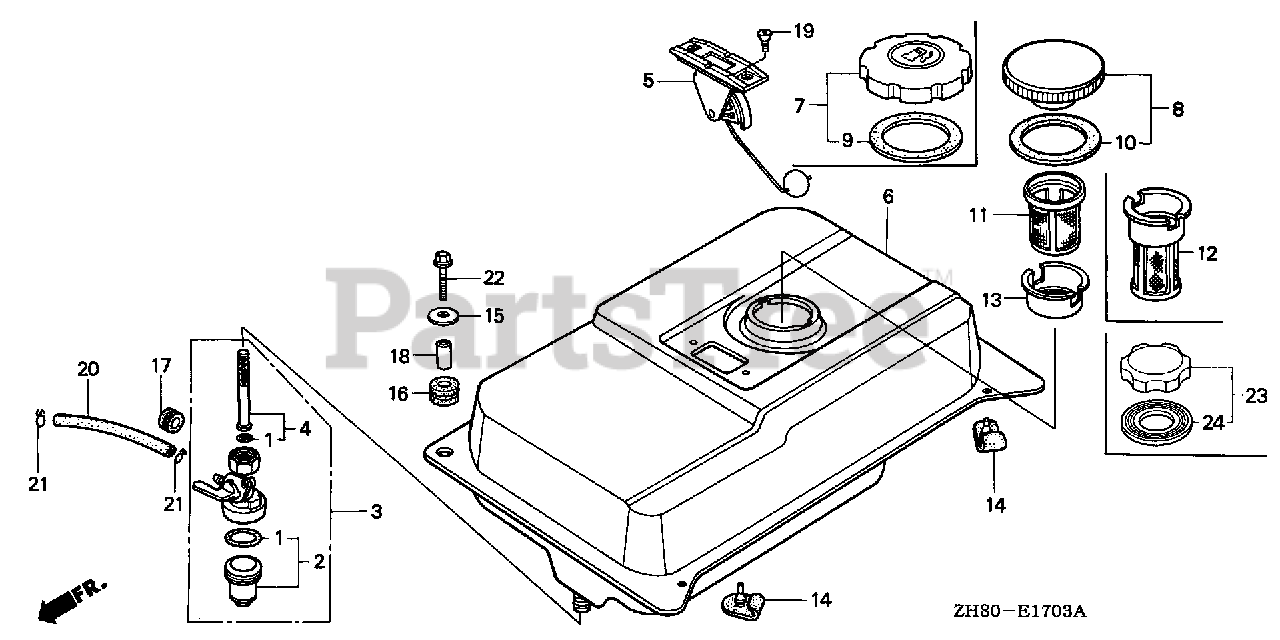

FUEL TANK (4) Parts Diagram

  • Title

1

Honda 16080-898-631

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

$29.99

$

Usually ships in 3-6 days

0

2

Honda 16081-471-831

SEE PART DETAILS - PRI; CUP, FUEL STRAINER

$30.99

$

In Stock, only 1 left!

0

3

Honda 16950-898-633

SEE PART DETAILS - PRI; PETCOCK ASSY.

$57.99

$

Usually ships in 3-6 days

0

4

Honda 16952-GG2-731

SCREEN SET

Note: Use from Engine SN 8018248.

$21.99

$

Usually ships in 3-6 days

0

4

Honda 16952-883-005

SCREEN SET

Note: Use up to Engine SN 8018247.

$18.99

$

In Stock, only 1 left!

0

5

Honda 17505-ZB2-003

SEE PART DETAILS - SUP; METER ASSY., FUEL
(Superseded to 17505-ZB2-013)

$25.99

$

Usually ships in 3-6 days

0

6

Honda 17510-ZB2-000ZG

TANK, FUEL *T68* (TSURUMI BLUE)

$300.99

$

Usually ships in 3-6 days

0

6

Honda 17510-ZB2-000ZH

TANK, FUEL *Y131* (LIGHTNING YELLOW)

$271.99

$

Usually ships in 3-6 days

0

6

Honda 17510-ZB2-000ZL

TANK, FUEL *NH1* (BLACK)

$203.99

$

Usually ships in 3-6 days

0

6

Honda 17510-ZB2-000ZM

TANK, FUEL *R280* (POWER RED)

$215.99

$

Usually ships in 3-6 days

0

7

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 3063878 to 8542059.

$

$

Not available

8

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use up to Engine SN 3063877.

$

$

Not available

9

Honda 17631-329-003

GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use from Engine SN 3063878 to 8542059.

$

$

Not available

10

Honda 17631-329-003

GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use up to Engine SN 3063877.

$

$

Not available

11

Honda 17670-ZB2-000

FILTER, FUEL

Note: Use up to Engine SN 2827376.

$

$

Not available

12

Honda 17670-ZH7-A21

FILTER, FUEL

Note: Use from Engine SN 2827377.

$13.99

$

Usually ships in 3-6 days

0

13

Honda 17673-893-000

HOLDER, FUEL FILTER

Note: Use up to Engine SN 2827376.

$14.99

$

In Stock, only 1 left!

0

14

Honda 50319-ZB2-000

RUBBER, TANK MOUNTING

$4.99

$

Usually ships in 3-6 days

0

15

Honda 90506-500-000

WASHER, AIR DUCT

Note: Use up to Engine SN 3477005.

$

$

Currently unavailable

16

Honda 90852-898-000

RUBBER, CONTROL BOX

Note: Use up to Engine SN 3477005.

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90854-ZB2-000

RUBBER, FUEL (9X15X10)

Note: Use up to Engine SN 4795103.

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90854-ZB3-000

RUBBER, FUEL (9X15X20)

Note: Use from Engine SN 4795104.

$4.49

$

In Stock, only 1 left!

0

18

Honda 91552-898-000

COLLAR, CONTROL BOX

$4.99

$

Usually ships in 3-6 days

0

19

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, only 3 left!

0

20

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X95)

Note: Use up to Engine SN 3477005.

$54.99

$

In Stock, only 4 left!

0

20

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X150)

Note: Use from Engine SN 4263876.

$54.99

$

In Stock, only 4 left!

0

20

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (95001-450(95001-45001-60M)

Note: Use from Engine SN 3477006 to 4263875.

$54.99

$

In Stock, only 4 left!

0

21

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$2.49

$

In Stock, Qty 7

0

23

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

Note: Use from Engine SN 8542060.

$

$

Not available

23

Honda 17620-Z0T-814

SEE PART DETAILS - SUP; CAP, FUEL FILLER (CHROME PLATED)(TOUYOUSYA)
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 8542060.

$

$

Not available

24

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

Note: Use from Engine SN 8542060.

$3.49

$

Usually ships in 3-6 days

0
