GX160 K1 VA2 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) FAN COVER Parts Diagram

Engine, Made in Japan

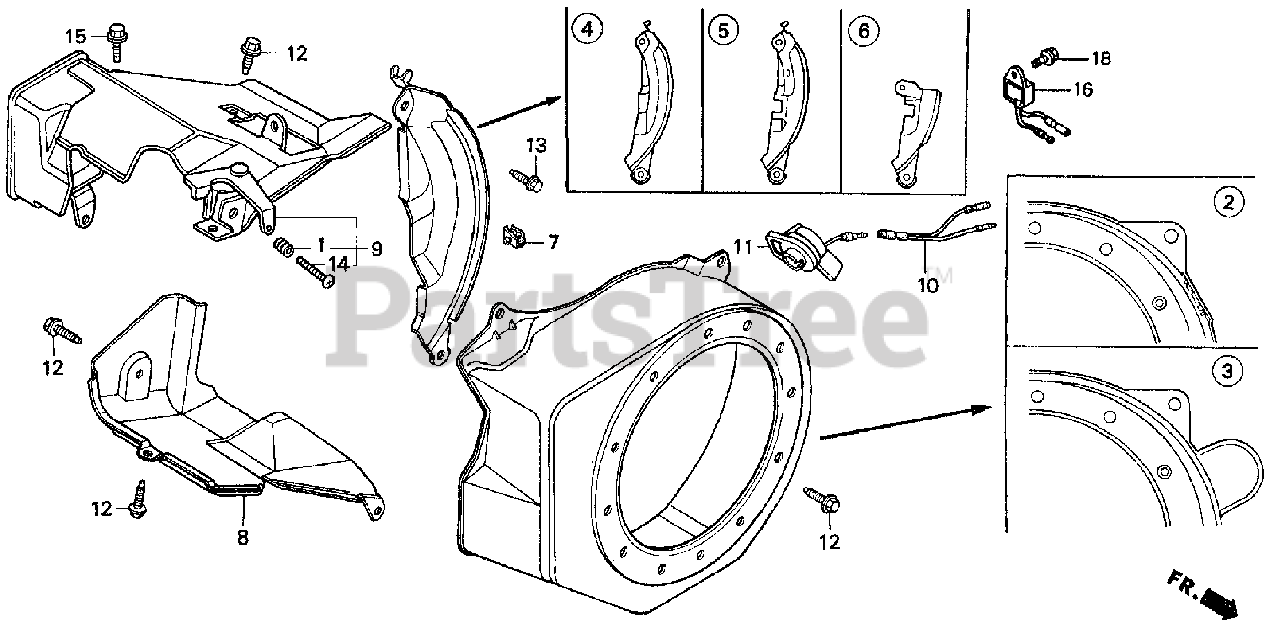

FAN COVER Parts Diagram

  • Title
2

Honda 19610-ZE1-000ZA

COVER, FAN *R8* (BRIGHT RED)
(Superseded to 19610-ZE1-010ZP)

Note: (Honda Code 3417490).

$69.99

$

Usually ships in 3-6 days

0

4

Honda 19611-ZH8-810

PLATE, SIDE (OIL ALERT)

Note: Use from Engine SN 5372719. (Honda Code 5891528).

$11.99

$

Usually ships in 3-6 days

0

4

Honda 19612-ZH8-810

PLATE, SIDE (STD)

Note: Use up to Engine SN 4795905. (Honda Code 3683778).

$

$

Currently unavailable

4

Honda 19612-ZH8-811

PLATE, SIDE (OIL ALERT)

Note: Use from Engine SN 4795906 to 5066322. (Honda Code 5425624).

$

$

Currently unavailable

4

Honda 19612-ZH8-812

PLATE, SIDE

Note: Use from Engine SN 5066323 to 5372718. (Honda Code 5891536).

$10.99

$

Usually ships in 3-6 days

0

7

Honda 19613-ZE1-010

CLAMP, CORD

Note: Use up to Engine SN 4367320. (Honda Code 5891544).

$1.99

$

Usually ships in 3-6 days

0

7

Honda 90601-ZH7-013

CLIP, HARNESS

Note: Use from Engine SN 4367321. (Honda Code 5263934).

$2.49

$

In Stock, only 2 left!

0

8

Honda 19630-ZH8-000

SHROUD

Note: (Honda Code 3683802).

$16.99

$

Usually ships in 3-6 days

0

10

Honda 32197-ZH8-003

SUB-HARNESS

Note: Use up to Engine SN 4367320. (Honda Code 4193082).

$11.99

$

In Stock, only 2 left!

0

11

Honda 36100-ZE1-015

SWITCH ASSY., ENGINE STOP

Note: Use up to Engine SN 4368640. (Honda Code 2787869).

$21.99

$

In Stock, only 1 left!

0

11

Honda 36100-ZH7-003

SWITCH ASSY., ENGINE STOP
(Superseded to 36100-ZF6-P82)

Note: Use from Engine SN 4368641. (Honda Code 5266184).

$19.99

$

In Stock, only 4 left!

0

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

13

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

Note: (Honda Code 0671552).

$2.99

$

In Stock, only 2 left!

0

16

Honda 34150-ZH7-003

ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use from Engine SN 5372719. (Honda Code 5858444).

$51.99

$

In Stock, only 1 left!

0

18

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: Use from Engine SN 5372719. (Honda Code 2581353).

$3.49

$

In Stock, Qty 20+

0
