GX160 K1 TXC9 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) AIR CLEANER (4) Parts Diagram

Engine, Made in Japan

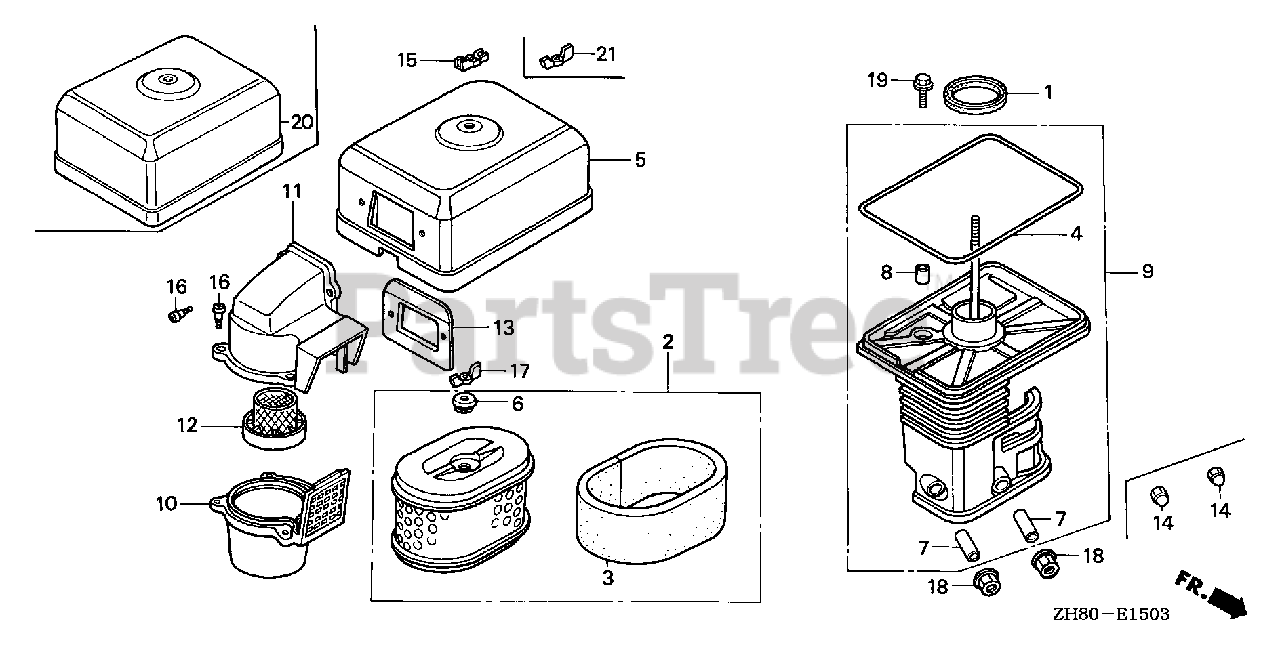

AIR CLEANER (4) Parts Diagram

  • Title
1

Honda 16271-ZE1-000

GASKET, ELBOW

Note: (Optional).

$4.99

$

In Stock, Qty 9

0

2

Honda 17210-ZE1-822

ELEMENT, AIR CLEANER (DUAL)
(Superseded to 17210-Z4M-821)

Note: (Optional).

$9.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE1-507

SEE PART DETAILS - PRI; FILTER (OUTER)
(Superseded to 17218-ZE1-821)

Note: (Optional).

$11.99

$

In Stock, only 1 left!

0

3

Honda 17218-ZE1-821

SEE PART DETAILS - SUP; FILTER (OUTER)

Note: (Optional).

$11.99

$

In Stock, only 1 left!

0

4

Honda 17219-733-010

GASKET, AIR CLEANER COVER

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

5

Honda 17230-ZE1-841

COVER, AIR CLEANER (DUAL)

Note: (Optional).

$31.99

$

Usually ships in 3-6 days

0

6

Honda 17232-891-000

GROMMET, AIR CLEANER

Note: (Optional).

$5.99

$

In Stock, Qty 15

0

7

Honda 17238-ZE7-010

COLLAR, AIR CLEANER

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 17239-733-000

COLLAR B, AIR CLEANER

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

9

Honda 17410-ZE1-841

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

10

Honda 17470-ZE1-842

CASE, PRE AIR CLEANER

Note: (Optional).

$15.99

$

In Stock, only 1 left!

0

11

Honda 17475-ZE1-841

CAP, PRE AIR CLEANER

Note: (Optional).

$19.99

$

In Stock, only 1 left!

0

12

Honda 17476-ZE1-841

GUIDE, PRE AIR CLEANER

Note: (Optional).

$10.99

$

In Stock, only 1 left!

0

13

Honda 17478-ZE1-841

PLATE, PRE AIR CLEANER

Note: (Optional).

$9.99

$

In Stock, only 1 left!

0

16

Honda 90300-GB0-900

BOLT, SPLASH GUARD

Note: (Optional).

$3.99

$

In Stock, only 4 left!

0

17

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

18

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-06020-00

BOLT, FLANGE (6X20)

Note: (Optional).

$2.49

$

In Stock, Qty 6

0

21

Honda 90325-044-000

NUT, TOOL BOX SETTING

Note: (Optional).

$5.49

$

In Stock, Qty 20+

0
