GX160 K1 SAC (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) CONTROL (1) Parts Diagram

Engine, Made in Japan

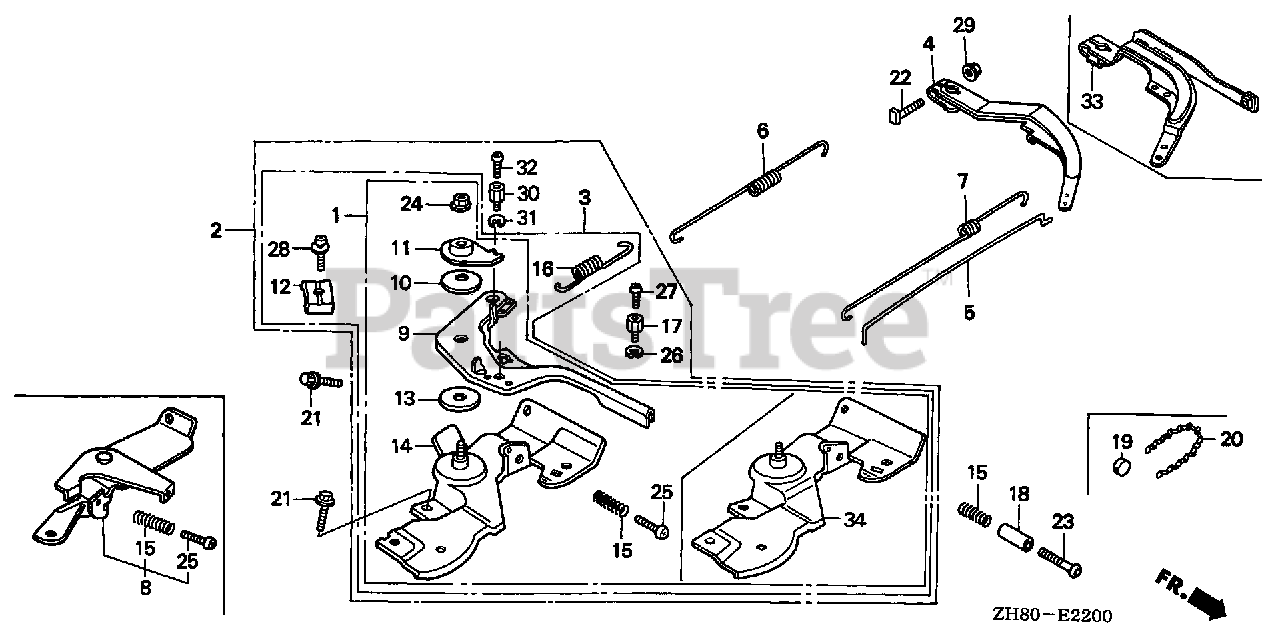

CONTROL (1) Parts Diagram

  • Title

2

Honda 16500-ZH8-812

SEE PART DETAILS - SUP; CONTROL ASSY. (REMOTE/INTERNAL)
(Superseded to 16500-ZH8-813)

$61.99

$

Usually ships in 3-6 days

0

2

Honda 16500-ZH8-813

SEE PART DETAILS - PRI; CONTROL ASSY. (REMOTE/INTERNAL)

$61.99

$

Usually ships in 3-6 days

0

4

Honda 16551-ZE0-010

ARM, GOVERNOR

$16.99

$

In Stock, only 2 left!

0

5

Honda 16555-ZE1-000

ROD, GOVERNOR

$4.99

$

In Stock, only 3 left!

0

6

Honda 16561-ZE1-020

SPRING, GOVERNOR

$5.49

$

In Stock, Qty 12

0

7

Honda 16562-ZE1-020

SPRING, THROTTLE RETURN

$3.99

$

In Stock, Qty 20+

0

9

Honda 16571-ZH8-020

LEVER, CONTROL

$14.99

$

In Stock, only 1 left!

0

10

Honda 16574-ZE1-000

SPRING, LEVER

$4.49

$

In Stock, only 1 left!

0

11

Honda 16575-ZH8-000

WASHER, CONTROL LEVER

$5.99

$

Usually ships in 3-6 days

0

12

Honda 16576-891-000

HOLDER, CABLE

$5.49

$

In Stock, only 1 left!

0

13

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

$5.49

$

In Stock, only 4 left!

0

14

Honda 16580-ZH8-813

BASE, CONTROL (REMOTE)

Note: Use up to Engine SN 3393321.

$25.99

$

Usually ships in 3-6 days

0

15

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$5.49

$

In Stock, Qty 6

0

16

Honda 16592-ZE1-810

SPRING, CABLE RETURN

$2.49

$

Usually ships in 3-6 days

0

17

Honda 16594-883-010

HOLDER, WIRE

Note: (Optional).

$9.49

$

In Stock, only 3 left!

0

21

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

22

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

24

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

$4.49

$

In Stock, Qty 20+

0

25

Honda 93500-05020-0H

SCREW, PAN (5X20)

Note: Use from Engine SN 2368081 to 2628832.

$1.49

$

Usually ships in 3-6 days

0

25

Honda 93500-05025-0H

SCREW, PAN (5X25)

Note: Use from Engine SN 2628833.

$0.99

$

In Stock, only 4 left!

0

26

Honda 90605-230-000

CIRCLIP (5MM)

Note: (Optional).

$4.49

$

In Stock, only 2 left!

0

27

Honda 93500-04006-0H

SCREW, PAN (4X6)

Note: (Optional).

$1.49

$

In Stock, Qty 7

0

28

Honda 93500-05016-0A

SCREW, PAN (5X16)

Note: Use from Engine SN 2740508.

$1.49

$

In Stock, Qty 7

0

28

Honda 93893-05016-00

SCREW-WASHER (5X16)

Note: Use up to Engine SN 2740507.

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

34

Honda 16580-ZH8-813

BASE, CONTROL (REMOTE)

Note: Use from Engine SN 3393322.

$25.99

$

Usually ships in 3-6 days

0
