GX160 K1 S1 (GC02) - Honda Engine, Made in Japan (SN: GC02-8670001 - GC02-9099999) CONTROL BOX (1) Parts Diagram

Engine, Made in Japan

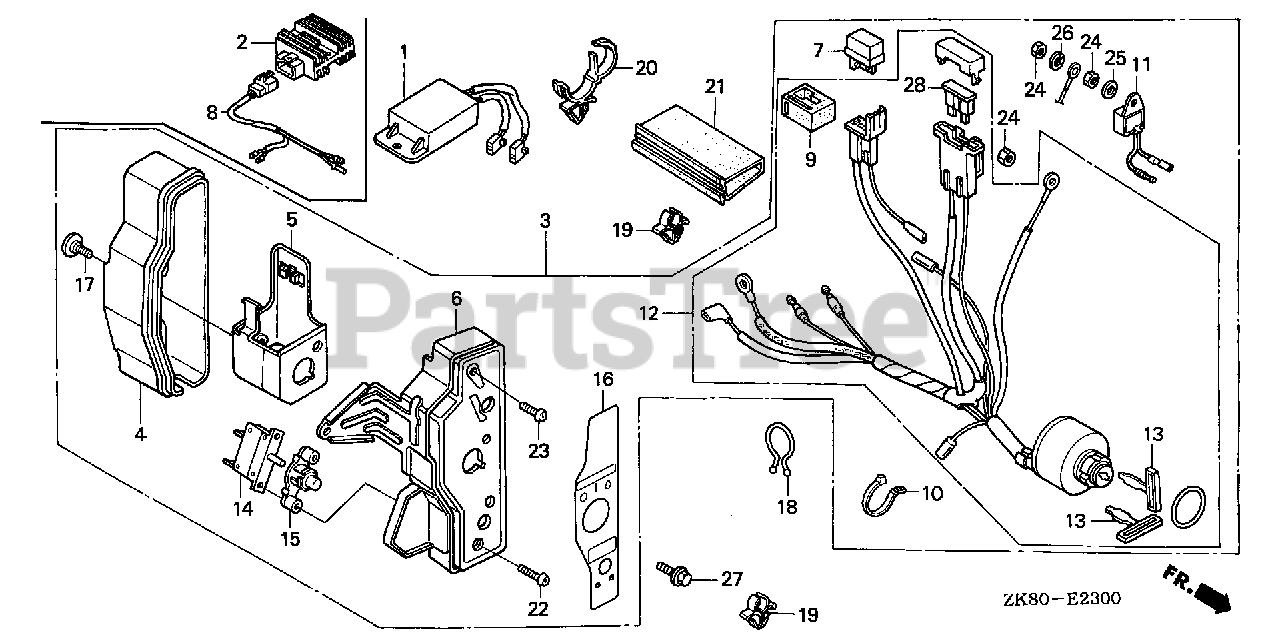

CONTROL BOX (1) Parts Diagram

  • Title

1

Honda 31600-KE1-010

RECTIFIER, REGULATOR

Note: (Optional).

$136.99

$

Usually ships in 3-6 days

0

3

Honda 31610-ZE1-013ZD

BOX ASSY., CONTROL *R280* (INTERNAL) (POWER RED)

Note: (Optional).

$201.99

$

Usually ships in 3-6 days

0

3

Honda 31610-ZE1-812ZD

BOX ASSY., CONTROL *R280* (EXTERNAL) (POWER RED)

Note: (Optional).

$201.99

$

Usually ships in 3-6 days

0

4

Honda 31612-ZE2-003

CASE, CONTROL

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

5

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

Note: (Optional).

$18.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZE1-003ZG

PANEL, CONTROL *R280* (POWER RED)

Note: (Optional).

$61.99

$

Usually ships in 3-6 days

0

7

Honda 31700-124-008

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (SHINDENGEN)

Note: (Optional).

$40.99

$

In Stock, only 1 left!

0

9

Honda 32127-738-700

SUSPENSION, CONNECTOR

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

10

Honda 32902-892-003

BAND

Note: (Optional).

$4.99

$

In Stock, only 1 left!

0

12

Honda 35100-ZE1-812

SWITCH ASSY., COMBINATION

Note: (Optional).

$157.99

$

Usually ships in 3-6 days

0

13

Honda 35111-880-013

KEY

Note: (Optional).

$11.99

$

In Stock, only 3 left!

0

14

Honda 38240-VA3-900

PROTECTOR, CIRCUIT (1.0A)

Note: (Optional).

$35.99

$

Usually ships in 3-6 days

0

15

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

Note: (Optional).

$20.99

$

Usually ships in 3-6 days

0

16

Honda 87529-ZE2-010

PANEL, CONTROL BOX (INTERNAL)

Note: (Optional).

$

$

Not available

16

Honda 87529-ZE2-812

MARK, CONTROL BOX (EXP)

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

17

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90630-751-000

CLIP, PURSE LOCK

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90682-ZE1-000

CLIP, CORD

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

20

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK)

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

21

Honda 91406-ZE2-003

TUBE, FASTENER (30MM)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

22

Honda 93500-03012-0H

SCREW, PAN (3X12)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 93500-04012-0H

SCREW, PAN (4X12)

Note: (Optional).

$1.49

$

In Stock, Qty 10

0

24

Honda 94001-04390-0S

NUT, HEX. (4MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

27

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

Note: (Optional).

$3.99

$

In Stock, Qty 6

0

27

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: (Optional).

$1.99

$

In Stock, Qty 7

0

28

Honda 98200-30500

FUSE, BLADE (5A)

Note: (Optional).

$1.99

$

In Stock, Qty 5

0
