GX160 K1 RXE2 (GC02) - Honda Engine, Made in Japan (SN: GC02-6100001 - GC02-8669999) CRANKCASE COVER Parts Diagram

Engine, Made in Japan

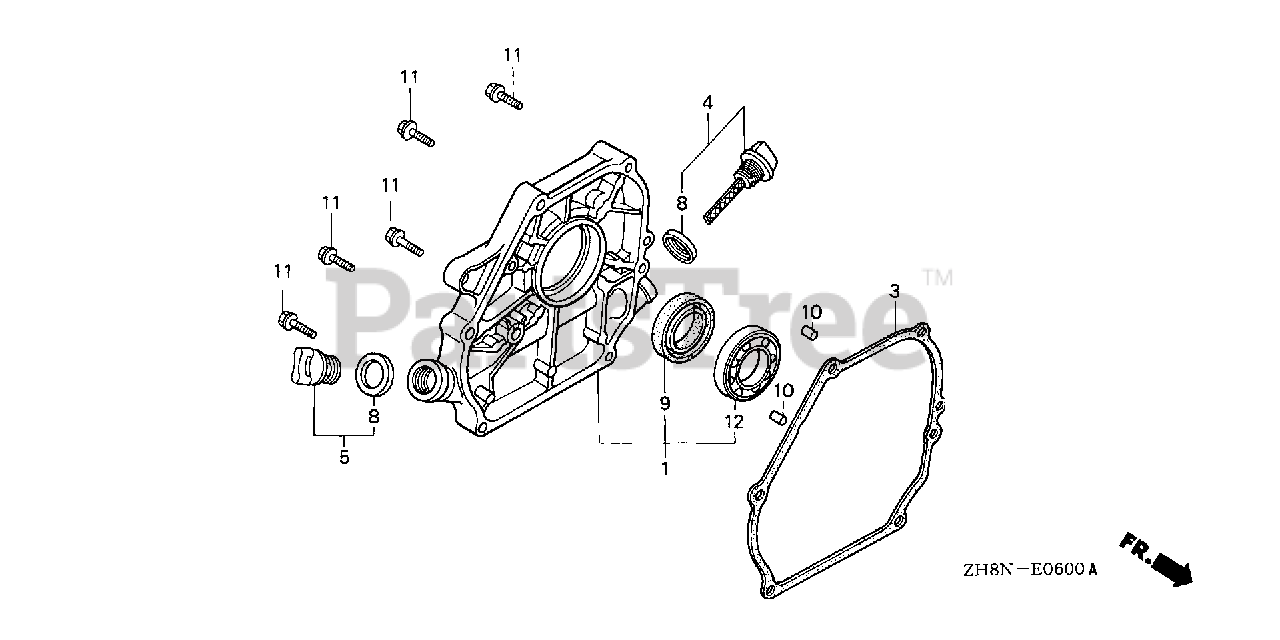

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZE1-010

COVER ASSY., CRANKCASE (S-TYPE)

Note: (Honda Code 4723136).

$

$

Currently unavailable

3

Honda 11381-ZL0-000

GASKET, CASE COVER

Note: (Honda Code 4917720).

$17.99

$

In Stock, only 1 left!

0

4

Honda 15600-ZE1-003

CAP ASSY., OIL FILLER
(Superseded to 15600-Z0T-810)

Note: (Honda Code 4500146).

$1.49

$

In Stock, Qty 8

0

5

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

Note: (Honda Code 4497921).

$6.99

$

In Stock, only 1 left!

0

8

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.49

$

In Stock, only 1 left!

0

9

Honda 91202-883-005

OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

Note: (Honda Code 0636936).

$8.99

$

In Stock, Qty 8

0

10

Honda 94301-08140

PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

11

Honda 95701-08032-00

BOLT, FLANGE (8X32)

Note: (Honda Code 2751725).

$1.99

$

In Stock, Qty 5

0

12

Honda 96100-62050-00

BEARING, RADIAL BALL (6205)

Note: (Honda Code 0636977).

$24.99

$

In Stock, only 3 left!

0
