GX160 K1 RMG2 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) CAMSHAFT Parts Diagram

Engine, Made in Japan

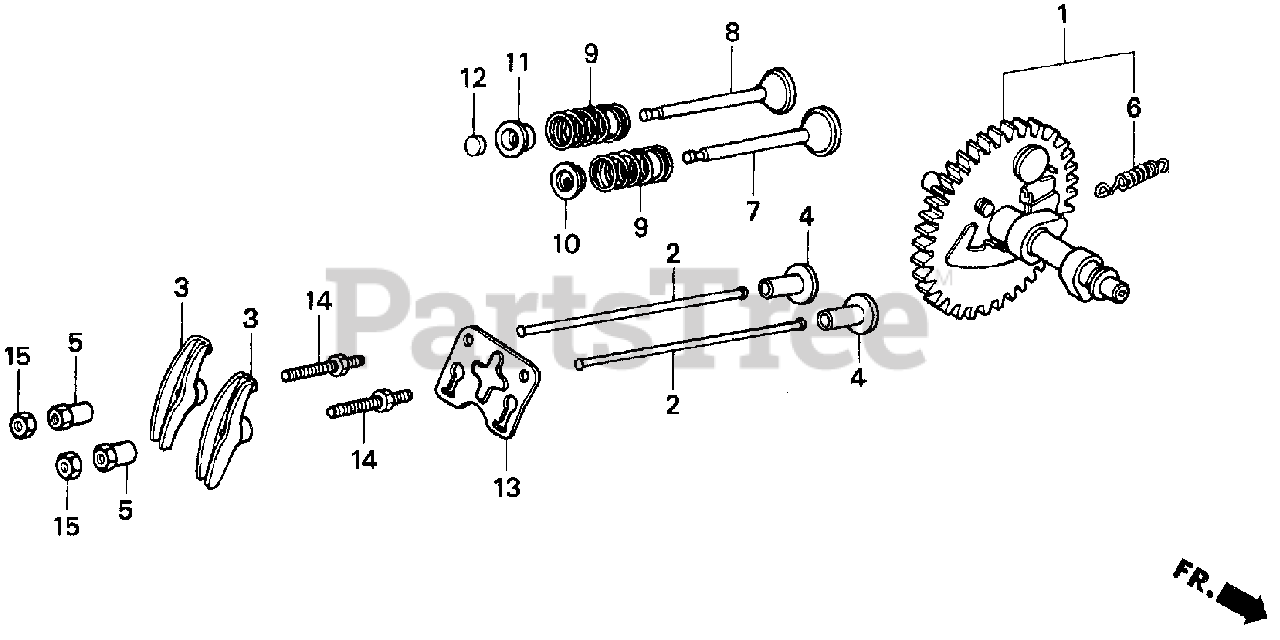

CAMSHAFT Parts Diagram

  • Title

1

Honda 14100-ZE1-812

CAMSHAFT ASSY.

Note: (Honda Code 1929611).

$154.99

$

Usually ships in 3-6 days

0

2

Honda 14410-ZE1-010

ROD, PUSH

Note: (Honda Code 3352655).

$8.49

$

In Stock, only 2 left!

0

3

Honda 14431-ZE1-000

ARM, VALVE ROCKER

Note: (Honda Code 1426824).

$7.99

$

In Stock, only 2 left!

0

4

Honda 14441-ZE1-000

LIFTER, VALVE
(Superseded to 14441-ZE1-010)

Note: Use up to Engine SN 4252173. (Honda Code 1426832).

$14.99

$

Usually ships in 3-6 days

0

4

Honda 14441-ZE1-010

LIFTER, VALVE

Note: (Honda Code 5181383).

$14.99

$

Usually ships in 3-6 days

0

5

Honda 14451-ZE1-013

PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

Note: (Honda Code 4300901).

$5.99

$

In Stock, Qty 5

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN

Note: (Honda Code 1426907).

$3.49

$

In Stock, only 2 left!

0

7

Honda 14711-ZF1-000

VALVE, IN.

Note: (Honda Code 3683455).

$20.99

$

In Stock, only 3 left!

0

8

Honda 14721-ZF1-000

VALVE, EX.
(Superseded to 14721-ZH8-810)

Note: (Honda Code 3683463).

$66.99

$

Usually ships in 3-6 days

0

9

Honda 14751-ZF1-000

SPRING, VALVE

Note: (Honda Code 3683489).

$4.99

$

In Stock, only 2 left!

0

10

Honda 14771-ZE1-000

RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

Note: (Honda Code 1426980).

$1.49

$

In Stock, Qty 14

0

11

Honda 14773-ZE1-000

RETAINER, EX. VALVE SPRING

Note: (Honda Code 1426998).

$10.99

$

In Stock, only 1 left!

0

12

Honda 14781-ZE1-000

ROTATOR, VALVE

Note: (Honda Code 1427004).

$5.99

$

In Stock, Qty 11

0

13

Honda 14791-ZE1-010

PLATE, PUSH ROD GUIDE

Note: (Honda Code 1899947).

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

Note: (Honda Code 1756964).

$8.49

$

In Stock, only 2 left!

0

15

Honda 90206-ZE1-000

NUT, PIVOT ADJ.

Note: (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0
