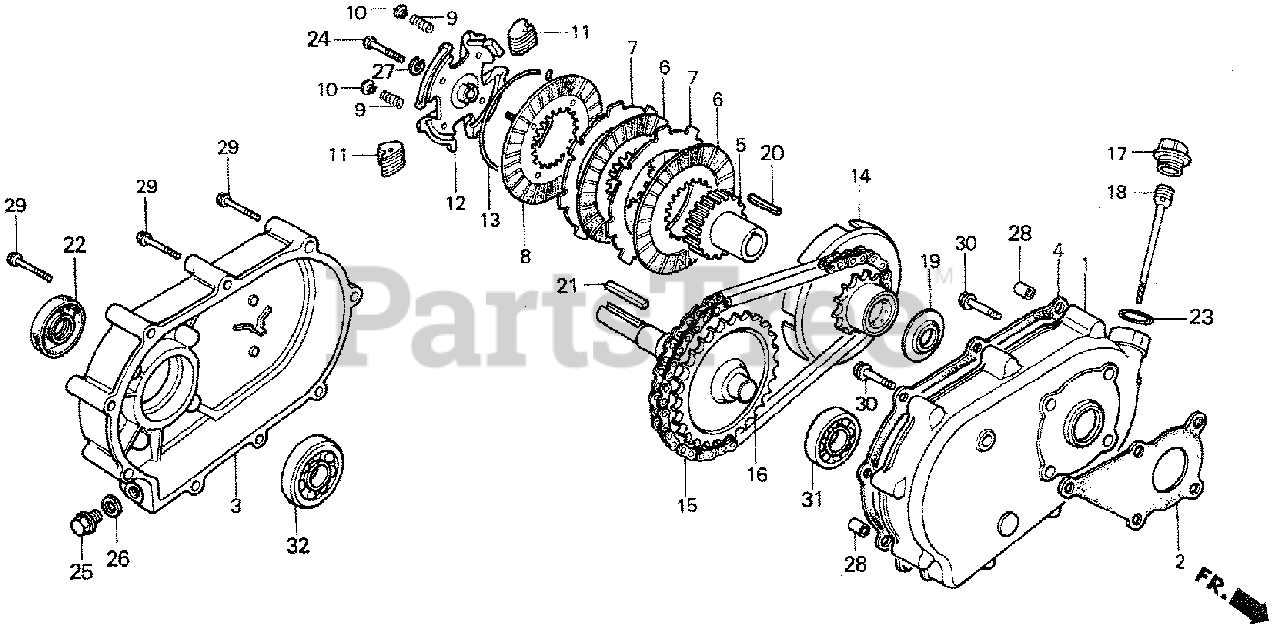

GX160 K1 RHA2 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) 1/2 REDUCTION (CLUTCH) Parts Diagram

Engine, Made in Japan

1/2 REDUCTION (CLUTCH) Parts Diagram

  • Title

1

Honda 21510-883-621

CASE, REDUCTION

Note: (Honda Code 0635912).

$182.99

$

Usually ships in 3-6 days

0

2

Honda 21591-ZH8-620

GASKET, REDUCTION CASE

Note: (Honda Code 3683810).

$9.99

$

In Stock, only 1 left!

0

3

Honda 21610-822-611

COVER, REDUCTION

Note: (Honda Code 0397000).

$218.99

$

Usually ships in 3-6 days

0

4

Honda 21691-ZH8-800

GASKET, REDUCTION COVER

Note: (Honda Code 3683836).

$14.99

$

In Stock, only 1 left!

0

5

Honda 22121-883-620

CENTER, CLUTCH

Note: (Honda Code 0635938).

$83.99

$

Usually ships in 3-6 days

0

6

Honda 22201-822-306

DISK, CLUTCH FRICTION

Note: (Honda Code 4369955).

$40.99

$

In Stock, only 4 left!

0

6

Honda 22201-822-610

DISK, CLUTCH FRICTION

Note: (Honda Code 0397026).

$

$

Currently unavailable

7

Honda 22311-822-610

PLATE, CLUTCH

Note: (Honda Code 0397034).

$23.99

$

In Stock, only 4 left!

0

8

Honda 22350-822-610

PLATE, CLUTCH PRESSURE

Note: (Honda Code 0397042).

$29.99

$

In Stock, only 1 left!

0

9

Honda 22411-822-611

SPRING, CLUTCH FREE

Note: (Honda Code 0397059).

$3.99

$

Usually ships in 3-6 days

0

10

Honda 22421-822-610

HOLDER, CLUTCH SPRING

Note: (Honda Code 0397067).

$1.99

$

In Stock, only 1 left!

0

11

Honda 22521-822-610

WEIGHT, CLUTCH

Note: (Honda Code 0397075).

$4.99

$

Usually ships in 3-6 days

0

12

Honda 22531-883-620

HOLDER, CLUTCH WEIGHT

Note: (Honda Code 0635953).

$55.99

$

In Stock, only 1 left!

0

13

Honda 22535-822-610

CENTER, CLUTCH WEIGHT

Note: (Honda Code 0397091).

$2.99

$

Usually ships in 3-6 days

0

14

Honda 23120-883-620

SPROCKET, DRIVE

Note: (Honda Code 0635961).

$

$

Not available

15

Honda 23161-822-611

CHAIN, DRIVE (RK428SH-36LE)

Note: (Honda Code 4195566).

$61.99

$

Usually ships in 3-6 days

0

16

Honda 23711-822-610

SHAFT, P.T.O. (28T)

Note: (Honda Code 0397125).

$71.99

$

Usually ships in 3-6 days

0

17

Honda 25620-805-611

CAP, REDUCTION OIL
(Superseded to 25620-805-612)

Note: (Honda Code 0635979).

$8.49

$

Usually ships in 3-6 days

0

18

Honda 25651-883-621

DIPSTICK, OIL

Note: (Honda Code 0635987).

$13.99

$

Usually ships in 3-6 days

0

19

Honda 90403-883-620

WASHER, THRUST (20MM)

Note: (Honda Code 0636084).

$17.99

$

Usually ships in 3-6 days

0

20

Honda 90741-883-621

KEY (5MM)

Note: (Honda Code 0636092).

$7.49

$

Usually ships in 3-6 days

0

21

Honda 90741-889-810

KEY (7X7X33)

Note: (Honda Code 1064039).

$9.49

$

Usually ships in 3-6 days

0

22

Honda 91202-805-610

OIL SEAL (PJ30507)
(Superseded to 91202-Z2F-801)

Note: (Honda Code 0065136).

$11.99

$

In Stock, Qty 11

0

23

Honda 91301-805-000

O-RING (26X2.7)

Note: (Honda Code 0065185).

$4.99

$

Usually ships in 3-6 days

0

24

Honda 92101-08035-0A

BOLT, HEX. (8X35)

Note: (Honda Code 4313359).

$1.49

$

Usually ships in 3-6 days

0

25

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

Note: (Honda Code 0053975).

$5.49

$

In Stock, only 2 left!

0

26

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

Note: (Honda Code 0171868).

$1.49

$

In Stock, Qty 12

0

27

Honda 94111-08000

WASHER, SPRING (8MM)

Note: (Honda Code 0058982).

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94301-08100

PIN A, DOWEL (8X10)

Note: (Honda Code 0081711).

$2.99

$

Usually ships in 3-6 days

0

29

Honda 95701-06055-00

BOLT, FLANGE (6X55)

Note: (Honda Code 2533834).

$2.99

$

In Stock, only 4 left!

0

30

Honda 95701-08022-00

BOLT, FLANGE (8X22)

Note: (Honda Code 2652626).

$2.99

$

In Stock, Qty 7

0

31

Honda 96100-62050-00

BEARING, RADIAL BALL (6205)

Note: (Honda Code 0636977).

$24.99

$

In Stock, only 1 left!

0

32

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

Note: (Honda Code 0636118).

$30.99

$

In Stock, only 1 left!

0
