GX160 K1 RAC (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) AIR CLEANER (3) Parts Diagram

Engine, Made in Japan

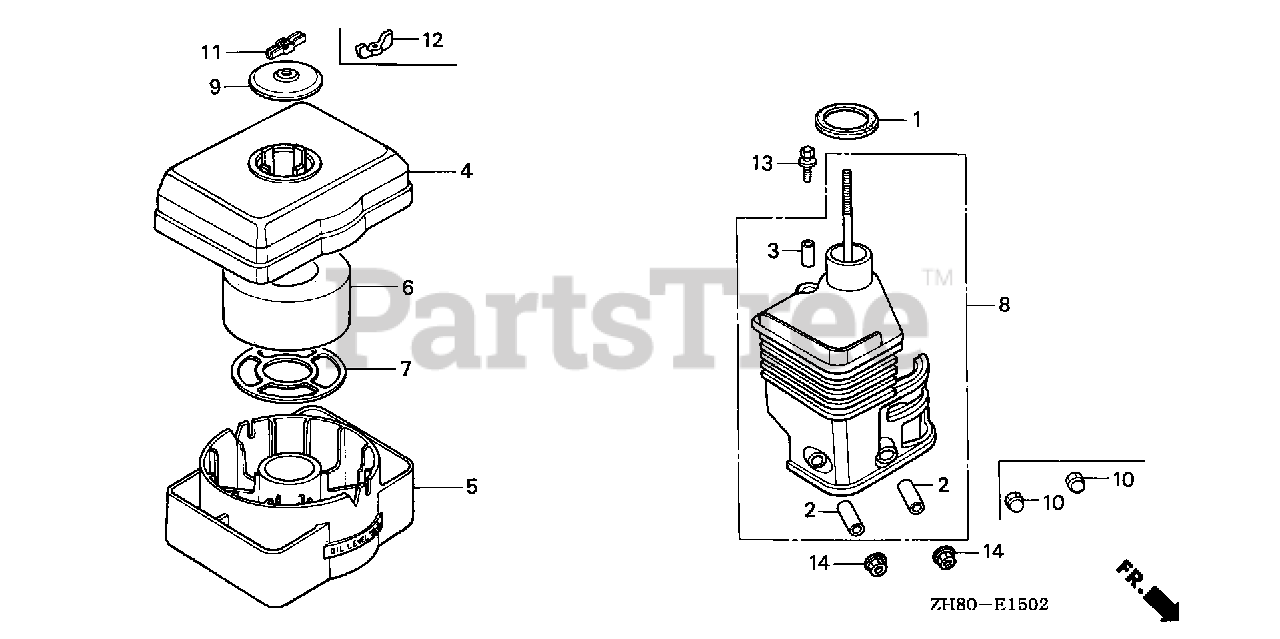

AIR CLEANER (3) Parts Diagram

  • Title

1

Honda 16271-ZE1-000

GASKET, ELBOW

Note: (Optional).

$4.99

$

In Stock, Qty 7

0

2

Honda 17238-ZE7-010

COLLAR, AIR CLEANER

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

3

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

Note: (Optional).

$4.99

$

In Stock, Qty 7

0

4

Honda 17401-ZE1-810

BODY, CLEANER (OIL BATH)

Note: (Optional).

$35.99

$

Usually ships in 3-6 days

0

5

Honda 17402-ZE1-810

PAN, CLEANER OIL (OIL BATH)

Note: (Optional).

$35.99

$

Usually ships in 3-6 days

0

6

Honda 17403-ZE1-810

ELEMENT, AIR CLEANER (OIL BATH)

Note: (Optional).

$6.49

$

In Stock, only 2 left!

0

7

Honda 17404-841-000

GRID, AIR CLEANER

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

8

Honda 17410-ZE1-020

SEE PART DETAILS - SUP; ELBOW, AIR CLEANER
(Superseded to 17410-ZE1-030)

Note: (Optional).

$39.99

$

In Stock, only 3 left!

0

9

Honda 17421-ZE1-000

CAP, CLEANER

Note: (Optional).

$12.99

$

In Stock, only 4 left!

0

10

Honda 90201-415-000

NUT, CAP (6MM)

Note: Use up to Engine SN 2708121.

$2.99

$

In Stock, Qty 12

0

11

Honda 90203-PB2-000

NUT, AIR CLEANER COVER (DACRO COATING)

Note: (Optional). Use up to Engine SN 2468252.

$10.99

$

In Stock, only 3 left!

0

11

Honda 90203-ZA0-800

WINGNUT (6MM) (BLACK)

Note: Use from Engine SN 2468253 to 2836833.

$4.49

$

In Stock, only 1 left!

0

12

Honda 90325-044-000

NUT, TOOL BOX SETTING

Note: Use from Engine SN 2836834.

$5.49

$

In Stock, Qty 20+

0

13

Honda 93404-06020-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X20)

Note: (Optional).

$2.49

$

In Stock, only 2 left!

0

13

Honda 93494-06020-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X20)

Note: (Optional).

$

$

Not available

14

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use from Engine SN 2708122.

$0.99

$

In Stock, Qty 20+

0
