GX160 K1 QXS (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) FLYWHEEL Parts Diagram

Engine, Made in Japan

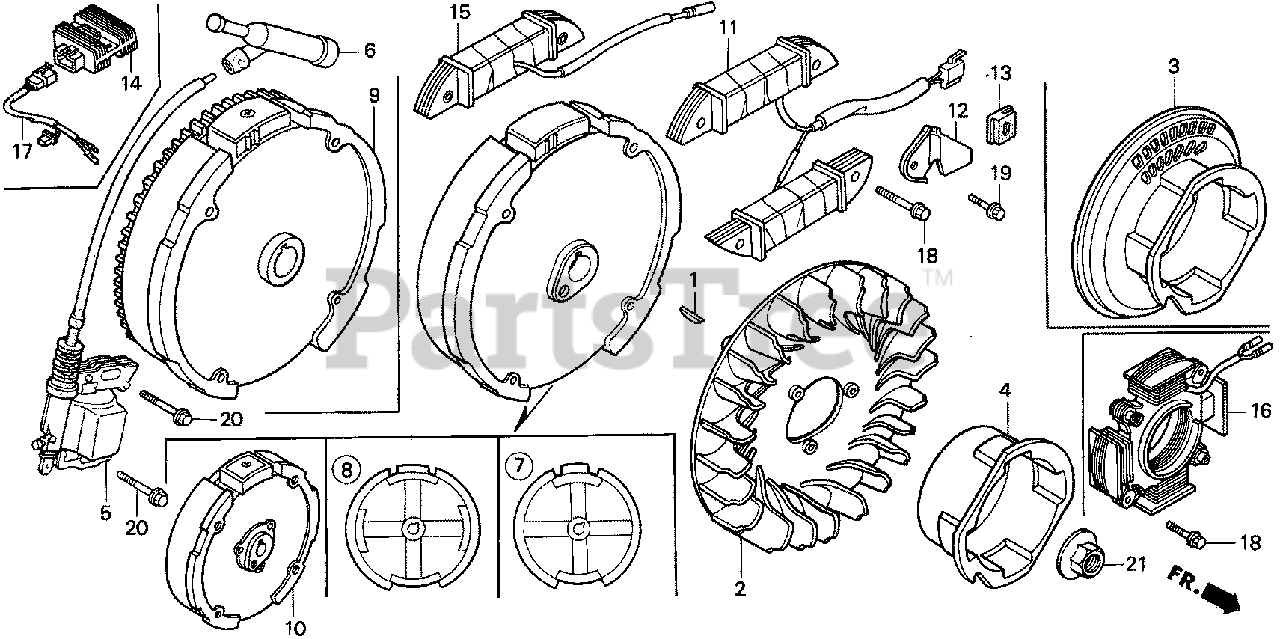

FLYWHEEL Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

Note: (Honda Code 0348433).

$4.99

$

In Stock, Qty 7

0

2

Honda 19511-ZE1-000

FAN, COOLING

Note: (Honda Code 1428051).

$30.99

$

Usually ships in 3-6 days

0

4

Honda 28451-ZH8-003

PULLEY, STARTER

Note: (Honda Code 3683943).

$33.99

$

Usually ships in 3-6 days

0

5

Honda 30500-ZE1-033

COIL ASSY., IGNITION
(Superseded to 30500-ZE1-073)

Note: (Honda Code 4589693).

$102.99

$

In Stock, only 1 left!

0

6

Honda 30700-ZE1-013

CAP ASSY., NOISE SUPPRESSOR

Note: (Honda Code 3526837).

$22.99

$

In Stock, only 4 left!

0

8

Honda 31100-ZE1-811

FLYWHEEL (LAMP)

Note: (Honda Code 5308440).

$190.99

$

Usually ships in 3-6 days

0

11

Honda 31510-ZE1-711

COIL ASSY., LAMP (12V/50W)

Note: (Honda Code 2581544).

$156.99

$

In Stock, only 1 left!

0

12

Honda 31511-ZE1-000

CLAMP, WIRE

Note: (Honda Code 1497197).

$4.99

$

In Stock, only 2 left!

0

13

Honda 31512-ZE1-000

GROMMET, WIRE

Note: (Honda Code 1497205).

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90015-883-000

BOLT, FLANGE (6X28)

Note: (Honda Code 0636852).

$3.99

$

In Stock, Qty 8

0

19

Honda 90019-883-000

BOLT, FLANGE (5X10)

Note: (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

20

Honda 90121-952-000

BOLT, FLANGE (6X25)

Note: (Honda Code 0748111).

$2.99

$

In Stock, Qty 20+

0

21

Honda 90201-878-003

NUT, SPECIAL (14MM)

Note: (Honda Code 0442038).

$7.99

$

Usually ships in 3-6 days

0
