GX160 K1 QXE2 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) STARTER MOTOR Parts Diagram

Engine, Made in Japan

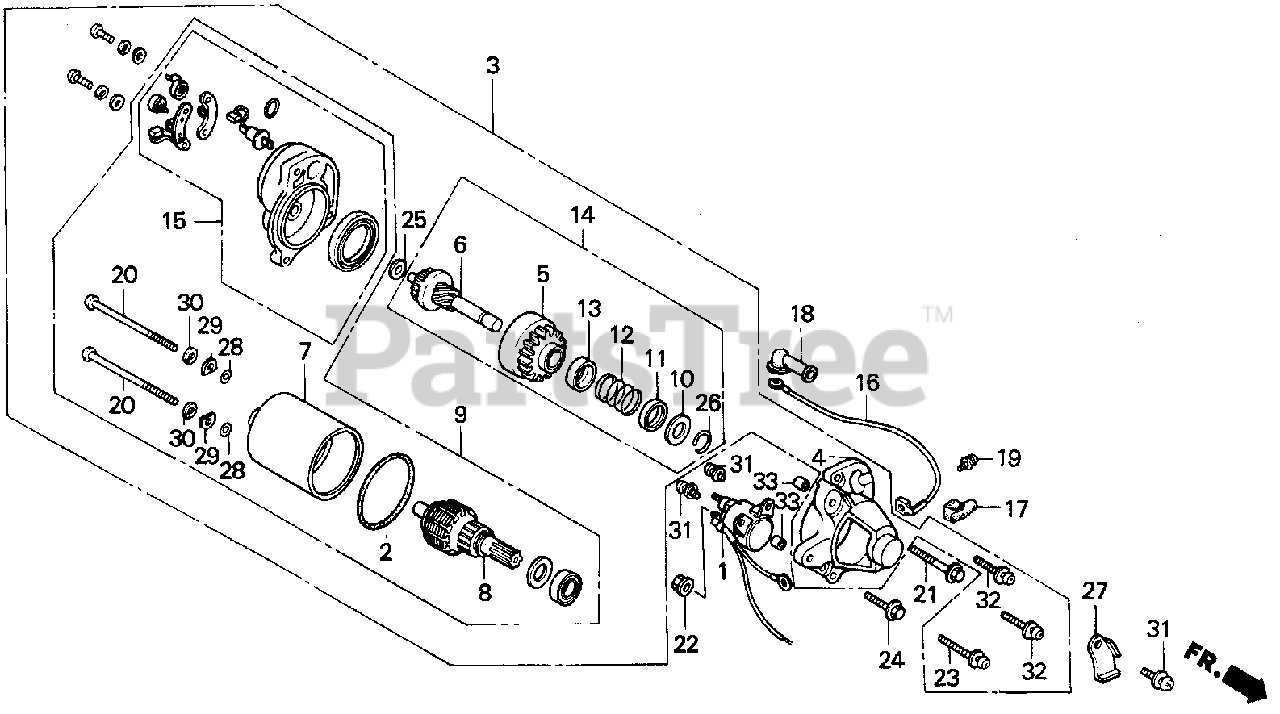

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31204-ZE1-003

SWITCH, MAGNETIC
(Superseded to 31204-ZE1-013)

Note: (Honda Code 3628864).

$88.99

$

Usually ships in 3-6 days

0

2

Honda 31206-KN7-670

O-RING

Note: (Honda Code 1996529).

$3.49

$

Usually ships in 3-6 days

0

3

Honda 31210-ZE1-023

MOTOR UNIT, STARTER

Note: (Honda Code 3628872).

$328.99

$

Usually ships in 3-6 days

0

4

Honda 31212-ZE1-003

COVER, GEAR

Note: (Honda Code 3628880).

$100.99

$

Usually ships in 3-6 days

0

5

Honda 31214-ZE1-003

PINION ASSY.

Note: (Honda Code 3628898).

$169.99

$

Usually ships in 3-6 days

0

6

Honda 31215-ZE1-003

SHAFT UNIT, GEAR

Note: (Honda Code 3628906).

$116.99

$

Usually ships in 3-6 days

0

7

Honda 31216-ZE1-003

YOKE ASSY.

Note: (Honda Code 3628914).

$49.99

$

Usually ships in 3-6 days

0

8

Honda 31217-ZE1-013

ROTOR ASSY.

Note: (Honda Code 3628922).

$71.99

$

Usually ships in 3-6 days

0

9

Honda 31220-ZE1-013

MOTOR ONLY

Note: (Honda Code 3628930).

$305.99

$

Usually ships in 3-6 days

0

10

Honda 31221-ZE1-003

PIECE A, STOPPER

Note: (Honda Code 3628948).

$12.99

$

Usually ships in 3-6 days

0

11

Honda 31222-ZE1-003

PIECE B, STOPPER

Note: (Honda Code 3628955).

$12.99

$

Usually ships in 3-6 days

0

12

Honda 31223-ZE1-003

SPRING, RETURN

Note: (Honda Code 3628963).

$9.49

$

Usually ships in 3-6 days

0

13

Honda 31224-ZE1-003

COVER, SPRING

Note: (Honda Code 3628971).

$12.99

$

Usually ships in 3-6 days

0

14

Honda 31230-ZE1-003

GEAR ASSY.

Note: (Honda Code 3628989).

$299.99

$

Usually ships in 3-6 days

0

15

Honda 31235-ZE1-013

BRACKET, FR.

Note: (Honda Code 3628997).

$173.99

$

Usually ships in 3-6 days

0

16

Honda 32410-ZE1-000

WIRE, MAGNET SWITCH

Note: (Honda Code 3629029).

$

$

Currently unavailable

17

Honda 32411-ZE1-000

COVER, MAGNET SWITCH TERMINAL

Note: (Honda Code 3629037).

$4.49

$

Usually ships in 3-6 days

0

18

Honda 32411-230-000

COVER, STARTER MOTOR TERMINAL

Note: (Honda Code 0208652).

$9.99

$

Usually ships in 3-6 days

0

18

Honda 32411-253-000

COVER, STARTER MOTOR TERMINAL

Note: (Honda Code 0177360).

$

$

Currently unavailable

19

Honda 90010-ZE1-003

SCREW-WASHER (5X8)

Note: (Honda Code 3629110).

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90012-ZE1-003

BOLT, SETTING

Note: (Honda Code 3629128).

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90017-883-000

BOLT, FLANGE (6X32)

Note: (Honda Code 0636076).

$3.99

$

In Stock, only 2 left!

0

22

Honda 90071-MB0-000

NUT-WASHER (6MM)

Note: (Honda Code 1243534).

$2.99

$

Usually ships in 3-6 days

0

23

Honda 93892-05030-08

SCREW-WASHER (5X30)

Note: (Honda Code 5416516).

$4.49

$

Usually ships in 3-6 days

0

24

Honda 90121-952-000

BOLT, FLANGE (6X25)

Note: (Honda Code 0748111).

$3.49

$

In Stock, Qty 20+

0

25

Honda 90502-187-701

WASHER, PINION

Note: (Honda Code 1032176).

$3.49

$

Usually ships in 3-6 days

0

26

Honda 90603-ZE1-003

CIRCLIP (10.2MM)

Note: (Honda Code 3629144).

$4.49

$

Usually ships in 3-6 days

0

27

Honda 90631-ZE1-003

HOLDER, HARNESS

Note: (Honda Code 3629151).

$5.49

$

Usually ships in 3-6 days

0

28

Honda 91301-ZE1-003

O-RING

Note: (Honda Code 3329398).

$2.99

$

Usually ships in 3-6 days

0

29

Honda 91402-ZE6-003

WASHER, SPECIAL

Note: (Honda Code 1879907).

$2.99

$

Usually ships in 3-6 days

0

30

Honda 91403-ZE6-003

WASHER, SPRING

Note: (Honda Code 1879915).

$2.49

$

Usually ships in 3-6 days

0

31

Honda 93892-05014-08

SCREW-WASHER (5X14)

Note: (Honda Code 0660720).

$1.49

$

Usually ships in 3-6 days

0

32

Honda 93892-05020-08

SCREW-WASHER (5X20)

Note: (Honda Code 0485979).

$1.99

$

Usually ships in 3-6 days

0

33

Honda 94301-08100

PIN A, DOWEL (8X10)

Note: (Honda Code 0081711).

$3.49

$

Usually ships in 3-6 days

0
