GX160 K1 QX22 (GC02) - Honda Engine, Made in Japan (SN: GC02-6100001 - GC02-8669999) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

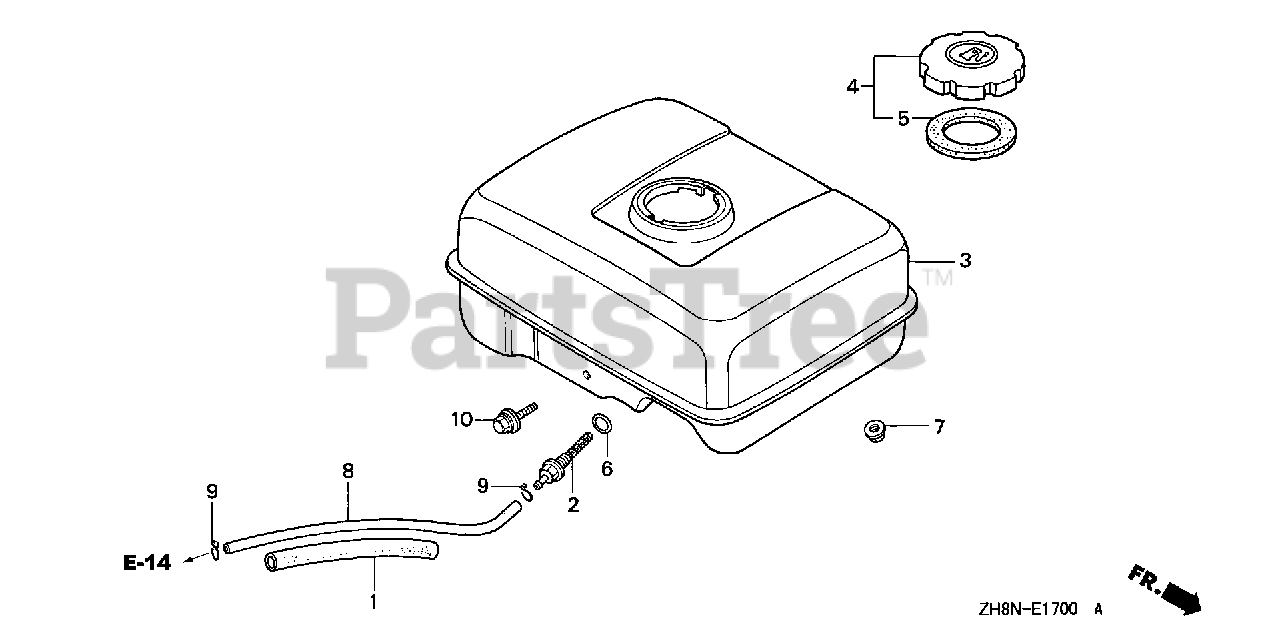

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

Note: (Honda Code 3683646).

$4.99

$

In Stock, Qty 14

0

2

Honda 16955-ZE1-000

JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

Note: (Honda Code 1427459).

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE1-020ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)
(Superseded to 17510-ZE1-030ZA)

Note: (Honda Code 3683661).

$176.99

$

Usually ships in 3-6 days

0

4

Honda 17620-ZH7-023

CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: (Honda Code 5344817).

$

$

Not available

5

Honda 17631-ZH7-003

GASKET, FUEL FILLER CAP
(Superseded to 17631-329-003)

Note: (Honda Code 4608725).

$

$

Not available

6

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

Note: (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

7

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

8

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140)

Note: (Honda Code 5137104).

$54.99

$

In Stock, only 4 left!

0

9

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

10

Honda 90004-ZH7-003

BOLT, FLANGE (6X29)

Note: Use from Engine SN 7552936. (Honda Code 6779540).

$1.49

$

In Stock, Qty 7

0

10

Honda 95701-06025-00

BOLT, FLANGE (6X25)

Note: Use up to Engine SN 7552935. (Honda Code 2105831).

$2.49

$

In Stock, Qty 8

0
