GX160 K1 QX22 (GC02) - Honda Engine, Made in Japan (SN: GC02-6100001 - GC02-8669999) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

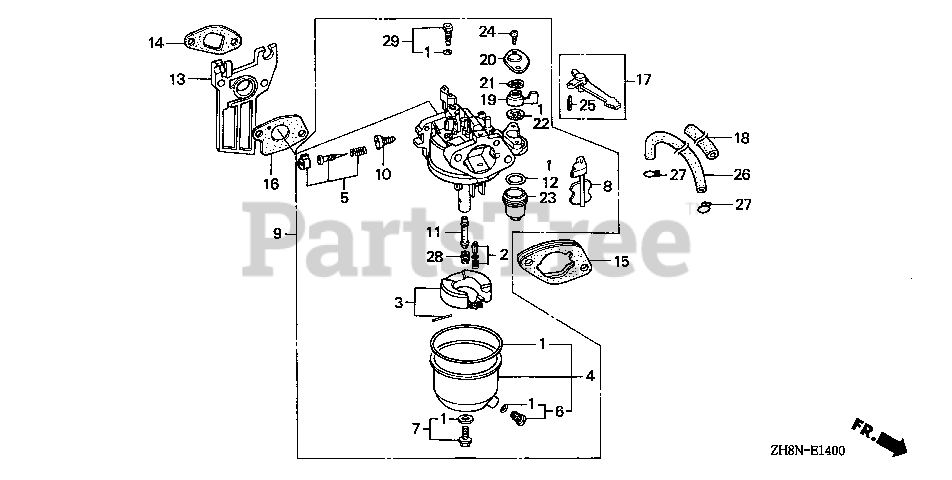

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZE1-812

GASKET SET

Note: (Honda Code 3477171).

$19.99

$

In Stock, Qty 14

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

Note: (Honda Code 1441476).

$28.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZE0-005

FLOAT SET

Note: (Honda Code 1441492).

$29.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

CHAMBER SET, FLOAT

Note: (Honda Code 2455608).

$37.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZH7-W01

SCREW SET

Note: (Honda Code 4219879).

$20.99

$

In Stock, only 3 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

Note: (Honda Code 1672187).

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: (Honda Code 1441518).

$13.99

$

In Stock, only 3 left!

0

8

Honda 16044-ZE0-005

CHOKE SET

Note: (Honda Code 1441526).

$37.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZH8-W51

CARBURETOR ASSY. (BE65B B)

Note: (Honda Code 5152491).

$124.99

$

In Stock, only 2 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

Note: (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZH8-W50

NOZZLE, MAIN

Note: (Honda Code 4229563).

$24.99

$

Usually ships in 3-6 days

0

12

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

Note: (Honda Code 0005652).

$7.49

$

In Stock, Qty 7

0

13

Honda 16211-ZE1-000

INSULATOR, CARBURETOR

Note: (Honda Code 1427137).

$23.99

$

In Stock, only 1 left!

0

14

Honda 16212-ZH8-800

GASKET, INSULATOR

Note: (Honda Code 3683547).

$3.49

$

In Stock, Qty 20+

0

15

Honda 16220-ZE1-020

SPACER, CARBURETOR

Note: (Honda Code 2534055).

$7.99

$

In Stock, Qty 20+

0

16

Honda 16221-ZH8-801

GASKET, CARBURETOR

Note: (Honda Code 4725289).

$2.49

$

In Stock, Qty 20+

0

17

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

Note: (Honda Code 1440114).

$10.99

$

In Stock, Qty 9

0

19

Honda 16953-ZE1-812

LEVER, VALVE

Note: (Honda Code 5140876).

$10.99

$

In Stock, Qty 10

0

20

Honda 16954-ZE1-812

PLATE, LEVER SETTING

Note: (Honda Code 5148135).

$4.49

$

In Stock, only 1 left!

0

21

Honda 16956-ZE1-811

SPRING, VALVE LEVER

Note: (Honda Code 1807809).

$3.99

$

In Stock, only 1 left!

0

22

Honda 16957-ZE1-812

GASKET, VALVE

Note: (Honda Code 3440708).

$4.49

$

In Stock, Qty 20+

0

23

Honda 16967-ZE0-811

CUP, FUEL STRAINER

Note: (Honda Code 1441583).

$22.99

$

In Stock, only 4 left!

0

24

Honda 93500-03006-0H

SCREW, PAN (3X6)

Note: (Honda Code 0561654).

$1.49

$

In Stock, Qty 5

0

25

Honda 94305-20122

PIN, SPRING (2X12)

Note: (Honda Code 1441591).

$2.49

$

In Stock, Qty 5

0

28

Honda 99101-ZH8-0650

JET, MAIN (#65)

Note: (Optional). (Honda Code 5519988).

$

$

Not available

28

Honda 99101-ZH8-0680

JET, MAIN (#68)
(Superseded to 99101-ZK7-0680)

Note: (Optional). (Honda Code 5519996).

$8.49

$

Usually ships in 3-6 days

0

28

Honda 99101-ZH8-0700

JET, MAIN (#70)
(Superseded to 99101-ZK7-0700)

Note: (Honda Code 5427505).

$9.99

$

In Stock, Qty 9

0

29

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

Note: (Honda Code 1441609).

$22.99

$

In Stock, only 2 left!

0
