GX160 K1 QX22 (GC02) - Honda Engine, Made in Japan (SN: GC02-6100001 - GC02-8669999) AIR CLEANER (1) Parts Diagram

Engine, Made in Japan

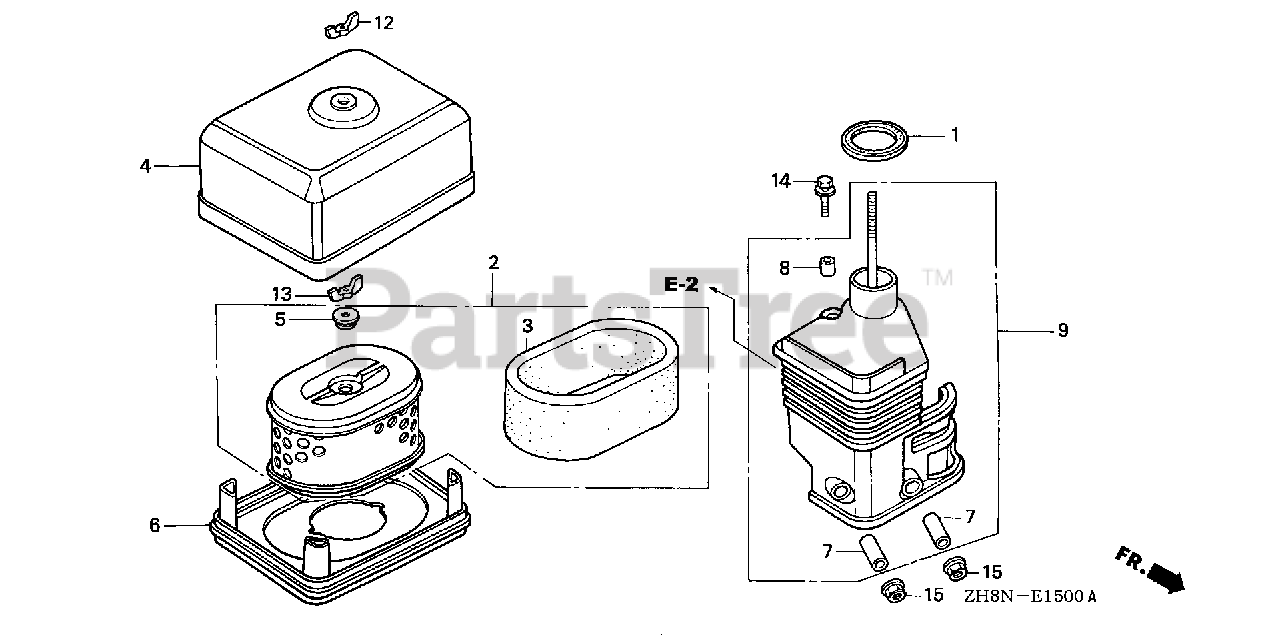

AIR CLEANER (1) Parts Diagram

  • Title

1

Honda 16271-ZE1-000

GASKET, ELBOW

Note: (Honda Code 1427194).

$4.99

$

In Stock, Qty 11

0

2

Honda 17210-ZE1-505

ELEMENT, AIR CLEANER (DUAL)

Note: (Honda Code 5247408).

$

$

Not available

2

Honda 17210-ZE1-822

ELEMENT, AIR CLEANER (DUAL)
(Superseded to 17210-Z4M-821)

Note: (Honda Code 2893881).

$9.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE1-505

FILTER (OUTER)
(Superseded to 17218-ZE1-821)

Note: (Honda Code 5272802).

$11.99

$

In Stock, Qty 5

0

3

Honda 17218-ZE1-821

FILTER (OUTER)

Note: (Honda Code 2535029).

$11.99

$

In Stock, Qty 5

0

4

Honda 17230-ZE1-820

COVER, AIR CLEANER (DUAL)

Note: (Honda Code 1445790).

$33.99

$

In Stock, only 2 left!

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER

Note: (Honda Code 0999763).

$5.99

$

In Stock, Qty 16

0

7

Honda 17238-ZE7-010

COLLAR, AIR CLEANER

Note: (Honda Code 2455673).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

Note: (Honda Code 1427533).

$4.99

$

In Stock, Qty 7

0

9

Honda 17410-ZE1-020

ELBOW, AIR CLEANER
(Superseded to 17410-ZE1-030)

Note: (Honda Code 2481653).

$39.99

$

In Stock, only 3 left!

0

12

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

Note: (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

13

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

Note: (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

14

Honda 95701-06020-00

BOLT, FLANGE (6X20)

Note: (Honda Code 2105815).

$2.49

$

In Stock, Qty 7

0

15

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
